English Translation of Title:
Button Head Screw for Water Jet Cutting Machine Parts – 1/4-20 x 1/2 inch, Model No. 10097624-Button-Head-Screw-14-20-x-12.1339.3-1

Introduction, Application, Features, and Maintenance:

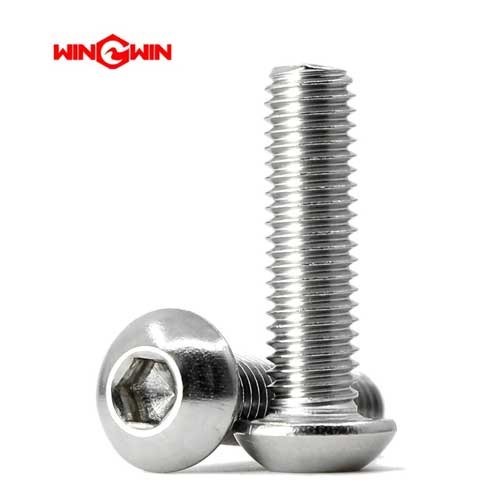

This component is a button head screw designed for water jet cutting systems. It is a threaded fastener with a low-profile, rounded head and a hex socket drive, featuring a 1/4-20 thread size and 1/2 inch length.

Application:
Used to secure covers, guards, mounting brackets, or components in water jet cutting machines. Typical applications include attaching access panels, securing pump housings, mounting sensors, or fixing small brackets on machine frames and high-pressure assemblies.

Features:

• Thread size: 1/4-20 (coarse thread).

• Length: 1/2 inch.

• Low-profile rounded head minimizes protrusion and provides a clean appearance.

• Hex socket (Allen) drive allows easy installation with standard hex keys.

• Manufactured from high-strength, corrosion-resistant material suitable for water jet environments.

• Button head design distributes clamping force evenly over a wider area than standard socket head screws.

• Resists loosening under vibration when properly torqued.

Maintenance:

• Regularly inspect the screw for signs of corrosion, thread damage, or stripping.

• Check for loosening of fastened components during routine machine inspection.

• Use the correct size hex key to avoid damaging the socket drive.

• Replace immediately if threads are damaged, stripped, or if the head shows signs of deformation.

• Apply appropriate torque values as specified for the connection.

• Consider using thread-locking compound if the screw is subject to vibration.
