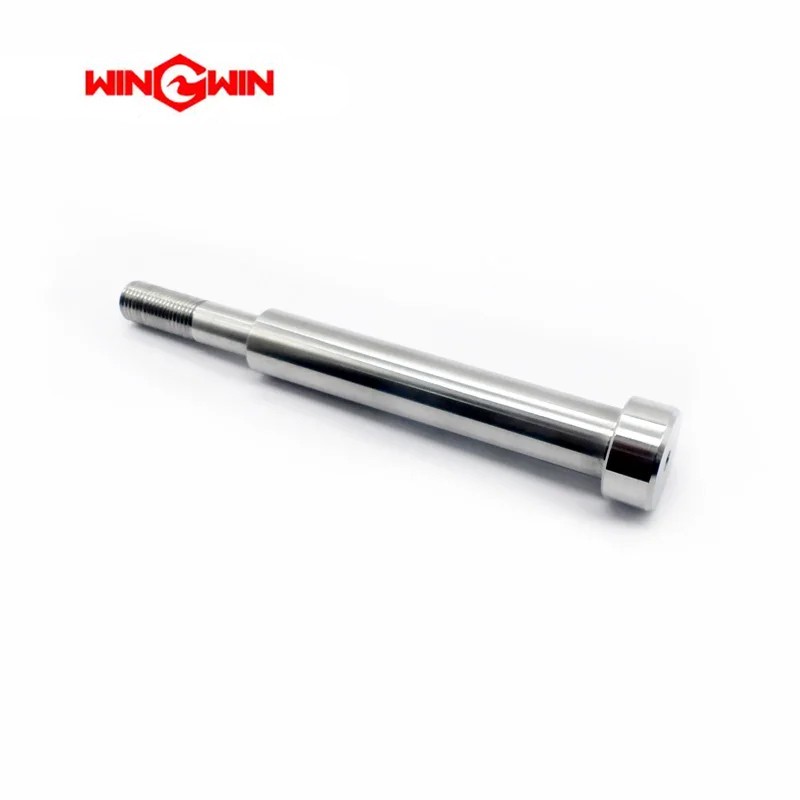

Product Name: High-Pressure Nozzle Tube / Focusing Tube (Part No. 05086913)

Description:
This component is a high-pressure (HP) nozzle tube, also known as a focusing tube or mixing tube, specifically designed for abrasive waterjet cutting systems. It is a precision-machined cylindrical component manufactured from ultra-hard, wear-resistant tungsten carbide to withstand the extreme erosive forces of high-velocity water and garnet abrasive particles.

The nozzle tube is installed in the cutting head assembly immediately downstream of the mixing chamber and water orifice. Inside the tube, the high-pressure waterjet (typically up to 60,000-94,000 PSI / 4,137-6,480 bar) and abrasive particles are accelerated and focused into a coherent cutting stream. This component is a critical high-wear consumable part that requires periodic replacement as its inner bore gradually erodes over time, directly affecting cut quality and accuracy.

Dimensional Specifications:

• Nominal Length: 15.00 inches (381.0 mm)

• Actual Length: 14.65 inches (372.11 mm)

• Inner Diameter (ID): 0.030 inches (0.76 mm) – typical for 0.010" orifice pairing

• Pressure Rating: 60,000-94,000 PSI (approximately 4,137-6,480 bar)

• Connection Type: Standard 3/8 inch nozzle nut connection for compatibility with major cutting head assemblies (KMT, AccuStream, Flow, OMAX, H2O Jet)

Applications:

• Serves as the final focusing element for the abrasive waterjet, directing the cutting stream onto the workpiece

• Defines the kerf width, cutting precision, and edge quality for the waterjet system

• Installed in the cutting head assembly of waterjet cutting machines

• Used during scheduled preventive maintenance, performance restoration, or when cutting quality visibly degrades

Features:

• Ultra-Hard Tungsten Carbide Construction: Provides exceptional wear resistance and extended service life, with typical lifespans of 100-200 hours depending on operating conditions

• Precision Inner Diameter (ID): Manufactured to exacting tolerances (0.030″) to ensure a coherent, straight jet for clean, narrow kerf cuts

• Optimized Length: The specific length of 15.00″ nominal (14.65″ actual) is engineered for specific cutting head configurations to maximize jet coherence

• High-Pressure Rating: Engineered for continuous operation at 60,000-94,000 PSI (4,137-6,480 bar)

• Critical Consumable Component: As a high-wear part, the nozzle tube requires periodic replacement; lifespan depends on abrasive type, flow rate, operating pressure, and water quality

Maintenance:

Failure Diagnosis (When to Replace):

• Reduced Cutting Performance: Noticeable decrease in cutting speed, rougher edge finish, or increased taper (wider kerf) indicates bore wear

• Asymmetric Wear: Uneven wear on the tube outlet circumference indicates misalignment between the water orifice and mixing tube; this significantly shortens tube life

• Visible Bore Damage: Inspect the exit orifice for ovality, flaring, or visible bore enlargement using a magnifying glass

• Clogged Tube: Complete blockage results from wet or contaminated garnet abrasive, requiring immediate cleaning or replacement

• Scheduled Preventive Replacement: Replace based on manufacturer hourly recommendations (typically every 100-200 operating hours) or when cut quality degrades

Inspection and Replacement Guidelines:

• Regular Inspection: Check the focusing tube for wear, cracks, or chipping regularly; replace worn components before cut quality degrades

• Rotation Practice (Critical): Index the nozzle tube by 1/4 turn every 10-12 operating hours to distribute wear evenly around the circumference, significantly extending service life

• Orifice-to-Tube Ratio (Critical): Maintain a 1:3 diameter ratio between the water orifice and mixing tube. For a 0.010″ orifice, use a 0.030″ mixing tube. A ratio that is too large or too small will result in rapid consumable wear

• Alignment Check: Ensure perfect coaxial alignment between the water orifice and mixing tube. Misalignment causes asymmetric bore wear, poor cut quality, and significantly reduced tube life

• Handling Caution: The nozzle tube is extremely hard but brittle; handle carefully to avoid chipping, cracking, or impact damage during installation

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures. Never service a pressurized HP line

• Clean Installation: Perform the rebuild in a designated clean area. Thoroughly clean the mixing chamber and nozzle body before installing a new tube to remove debris

• Torque Compliance: When reinstalling the retaining nut, tighten to the specific torque value listed in the equipment service manual (typically 30-40 ft-lbs for 3/8" HP connections). Over-tightening may crack the tube; under-tightening will cause leaks

• Water Quality Impact: Poor water quality with contaminants accelerates tube wear; maintain proper water filtration to maximize component life

• Abrasive Quality: Use clean, dry garnet abrasive; wet or contaminated abrasive causes clogging and accelerated wear

• Storage: Store spare nozzle tubes in a clean, dry, protective environment to prevent pre-service damage to the delicate inner bore

Cross-Reference Information:

• OEM Part Number: 05086913

• Nominal Length: 15.00″ (381.0 mm) / Actual Length: 14.65″ (372.11 mm)

• Inner Diameter: 0.030″ (0.76 mm)

• Compatible with: KMT AccuStream, Flow, OMAX, H2O Jet, BFT waterjet systems

• Pressure Rating: 60,000-94,000 PSI (4,137-6,480 bar)
