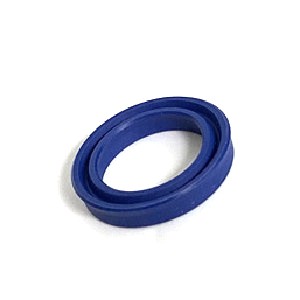

Product Name: Y-Ring (Hydraulic Seal) / Part No. 720310132

Description:
The Y-ring is a specialized hydraulic sealing component, typically manufactured from polyurethane or high-grade elastomers. It features a distinctive asymmetrical "Y" shaped cross-section, which is essential for creating a dynamic seal in reciprocating motion applications. It is commonly installed on the hydraulic piston within the low-pressure hydraulic cylinder of waterjet intensifier pumps [citation:1].

Applications:

• Acts as the primary dynamic seal between the hydraulic piston and the cylinder bore.

• Prevents high-pressure hydraulic fluid bypass, ensuring efficient power transmission to the high-pressure plunger.

• Suitable for the demanding, high-cycle environments of waterjet cutting systems.

Features:

• Pressure-Energized Action: The "Y" profile allows system pressure to force the sealing lips against the cylinder wall, providing a tighter seal as pressure increases.

• Low Friction Design: Compared to traditional O-rings or chevron packing, the Y-ring reduces friction and heat generation, extending both seal and cylinder life.

• High Wear Resistance: Constructed from materials designed to withstand the rapid, continuous reciprocation of the intensifier pump.

Maintenance:

• Inspection: During hydraulic cylinder servicing, check the Y-ring for nicks, cuts, abrasion, or signs of hardening and cracking on the sealing lips.

• Replacement: It is standard practice to replace the Y-ring and all associated seals whenever the hydraulic cylinder is disassembled or rebuilt.

• Installation: Ensure the seal is lubricated with clean hydraulic oil before installation to prevent rolling, twisting, or damage to the lips during assembly.

• Safety: Always fully depressurize the hydraulic system and lock out the power source before performing any maintenance on the cylinder.
