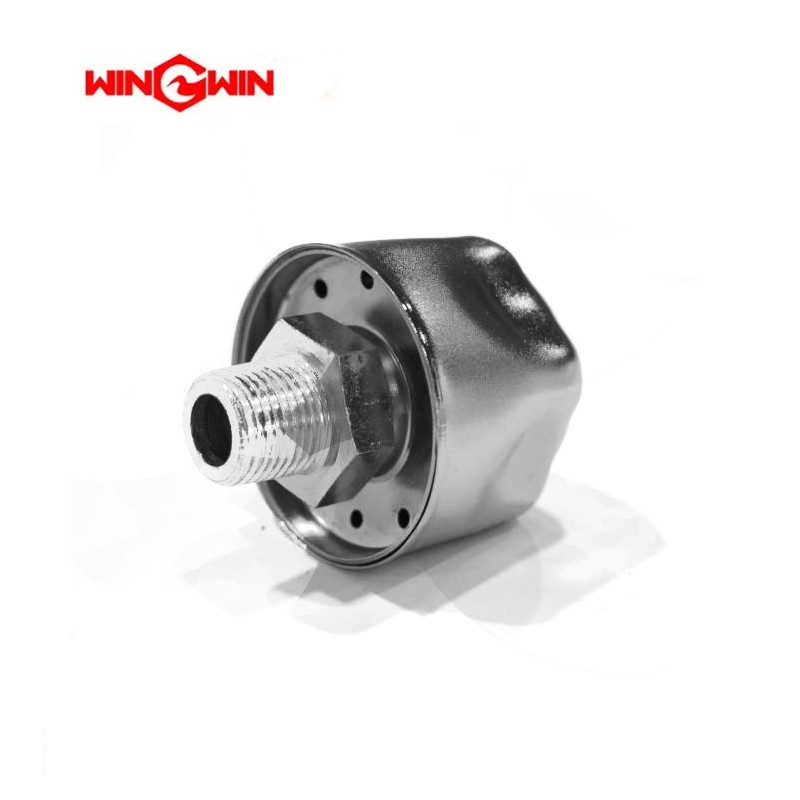

Product Name: Air Breather / Filler-Breather Cap (Part No. 05092739)

Description:
This component is an air breather, also referred to as a filler-breather cap or tank breather, specifically designed for the hydraulic reservoir assembly in high-pressure waterjet cutting systems . It is a critical filtration component mounted on top of the hydraulic reservoir (oil tank) that serves two primary functions: it allows air to flow in and out of the reservoir as the hydraulic fluid level changes, and it filters airborne contaminants from the air entering the tank.

According to the official parts diagram for the Reservoir Assembly (P/N 72152878), this air breather is listed as Item 11 with a quantity of 1 required per assembly . The breather is typically manufactured with a steel body and contains a replaceable or cleanable filter element that captures dust, dirt, and other airborne particles before they can enter the hydraulic system .

The breather also often features a filler screen or strainer that prevents large contaminants from entering the tank when hydraulic fluid is being added. When combined with a filler cap, it is commonly referred to as a filler-breather assembly . This component is classified as a maintenance part that requires periodic inspection and replacement to ensure hydraulic system cleanliness and prevent premature wear of pumps, valves, and seals.

Applications:

• Mounted on the hydraulic reservoir fill port to vent the tank as fluid level changes

• Filters incoming air to prevent airborne contaminants from entering the hydraulic system

• Allows displaced air to escape when fluid is added to the reservoir

• Maintains atmospheric pressure inside the reservoir, preventing vacuum formation that could starve the hydraulic pump

• Part of the Reservoir Assembly (72152878) in SL-VI 50HP and other waterjet intensifier systems

• Suitable for 60,000-94,000 PSI (approximately 4,137-6,480 bar) waterjet hydraulic systems

Features:

• Dual-Function Design: Combines air filtration with a filler strainer to prevent contamination ingress during fluid replenishment

• Filtration Media: Contains a filter element (typically 3-10 micron rating) that captures airborne dust and particles before they enter the reservoir

• Filler Strainer: Integrated mesh screen prevents large debris from entering the tank when adding hydraulic oil

• Corrosion-Resistant Construction: Steel body with protective finish to withstand harsh waterjet environments

• Critical Contamination Control Component: Prevents atmospheric contamination from entering the hydraulic system, which is essential for extending pump and component life

• Direct OEM Replacement: Interchangeable with manufacturer specifications as listed in official parts diagrams (Item 11 in Assembly 72152878)

Maintenance:

When to Replace (Failure Diagnosis):

• Clogged Breather (Vacuum in Tank): If the hydraulic reservoir collapses inward or the pump exhibits cavitation noise (whining/growling), the breather may be severely clogged, preventing air from entering the tank . This condition can starve the pump and cause premature failure.

• Visible Contamination: If dust or debris is visible on the breather exterior or around the filler neck, the element may be saturated

• Pressure Buildup in Tank: If removing the filler cap releases a sudden rush of air, the breather may be clogged, preventing air from escaping

• Extended Service Life: If the breather has been in service for more than one year or has exceeded the manufacturer's recommended service interval

• During Hydraulic Fluid Change: It is standard practice to replace the filler-breather cap whenever the hydraulic fluid is changed (typically every 1,500-3,000 operating hours)

Inspection and Replacement Guidelines:

• Service Interval: For breathers without pressure gauges, replace annually or with every scheduled service interval . For breathers with pressure indicators, replace when pressure drop reaches 3 psi

• Full Depressurization (Critical): Before removing or servicing the breather, fully depressurize the waterjet system, shut down the hydraulic pump, and follow lockout/tagout procedures

• Fluid Level Check: When replacing the breather, inspect the hydraulic fluid level through the sight gauge and top up if necessary

• Inspect Filler Strainer: Check the integrated filler screen for debris accumulation or damage; clean or replace as needed

• Clean Installation: Before installing a new breather, clean the filler neck and surrounding area to prevent debris from entering the reservoir during replacement

• Hand Tighten Only: Screw the breather onto the filler neck by hand until snug. Do not over-tighten, as this can damage the threads or seal

• Do Not Clean Reusable Elements: If the breather has a cleanable foam or mesh element, wash with warm soapy water, rinse thoroughly, and allow to dry completely before reinstalling. Replace the element if it shows signs of deterioration

• Record Replacement Date: Mark the installation date on the breather or in maintenance logs to track service intervals

• Storage: Store spare breathers in a clean, dry, sealed environment to prevent contamination before use

• Cross-Reference Part Numbers: 05092739 is listed as Item 11 in Reservoir Assembly 72152878 ; interchangeable with standard filler-breather caps conforming to industry specifications
