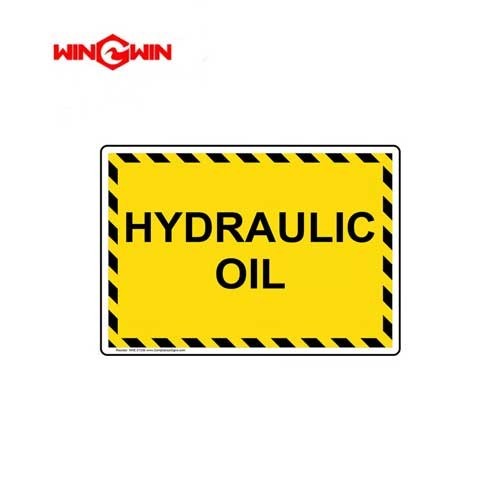

Product Name: Decal, Hydraulic Oil / Hydraulic Oil Label (Part No. 05085683)

Description:
This component is a hydraulic oil identification decal, a self-adhesive vinyl label specifically designed for use on waterjet cutting systems . According to manufacturer documentation, this decal is listed as Item 1 in the parts diagram for the Oil/Air Heat Exchanger Kit (Assembly 72163210), with a quantity of 1 required per assembly . It serves to identify the hydraulic oil fill point, drain point, or to specify the correct oil type for the system .

The decal is typically printed with the text "Hydraulic Oil" or "Hydraulic Oil Out," along with universal symbols or color coding, providing critical visual guidance to operators during maintenance . As a non-mechanical component, it plays a vital role in safety and preventive maintenance by preventing the accidental introduction of incorrect fluids .

Applications:

• Identifies the hydraulic oil reservoir, fill port, or drain point on waterjet cutting systems

• Applied to the hydraulic power unit or the Oil/Air Heat Exchanger Kit assembly (72163210)

• Used to communicate the correct hydraulic oil specifications to operators and maintenance personnel

• Suitable for KMT, AccuStream, H2O Jet, and other standard waterjet systems

Features:

• Self-Adhesive Vinyl Construction: Durable, oil-resistant material that adheres securely to metal surfaces and withstands industrial environments

• Visual Identification: Clearly indicates hydraulic oil locations to prevent maintenance errors

• Standard Design: Features the recognized "Hydraulic Oil" symbol or text, aiding quick comprehension by operators

• Safety Compliance: Helps meet OSHA and other regulatory requirements for equipment labeling and hazard communication

• Direct OEM Replacement: Interchangeable with manufacturer specifications as listed in official parts diagrams

Maintenance:

• Inspect for Damage: During routine machine inspection, check the decal for peeling, fading, or wear; replace it if the text or symbol becomes illegible

• Surface Preparation: Before applying a new decal, thoroughly clean the mounting surface of all dirt, grease, oil, and old adhesive residue. Use isopropyl alcohol or a citrus-based degreaser for final cleaning; ensure the surface is completely dry

• Application: Peel the backing from the new decal, carefully position it on the designated location, and press firmly from the center outward to eliminate air bubbles

• Replacement Criteria: Replace the decal immediately if it is peeling, faded beyond legibility, damaged, or missing. A missing or unreadable label can lead to maintenance errors

• Storage: Store spare decals in a cool, dry environment, laid flat to prevent curling or adhesive degradation
