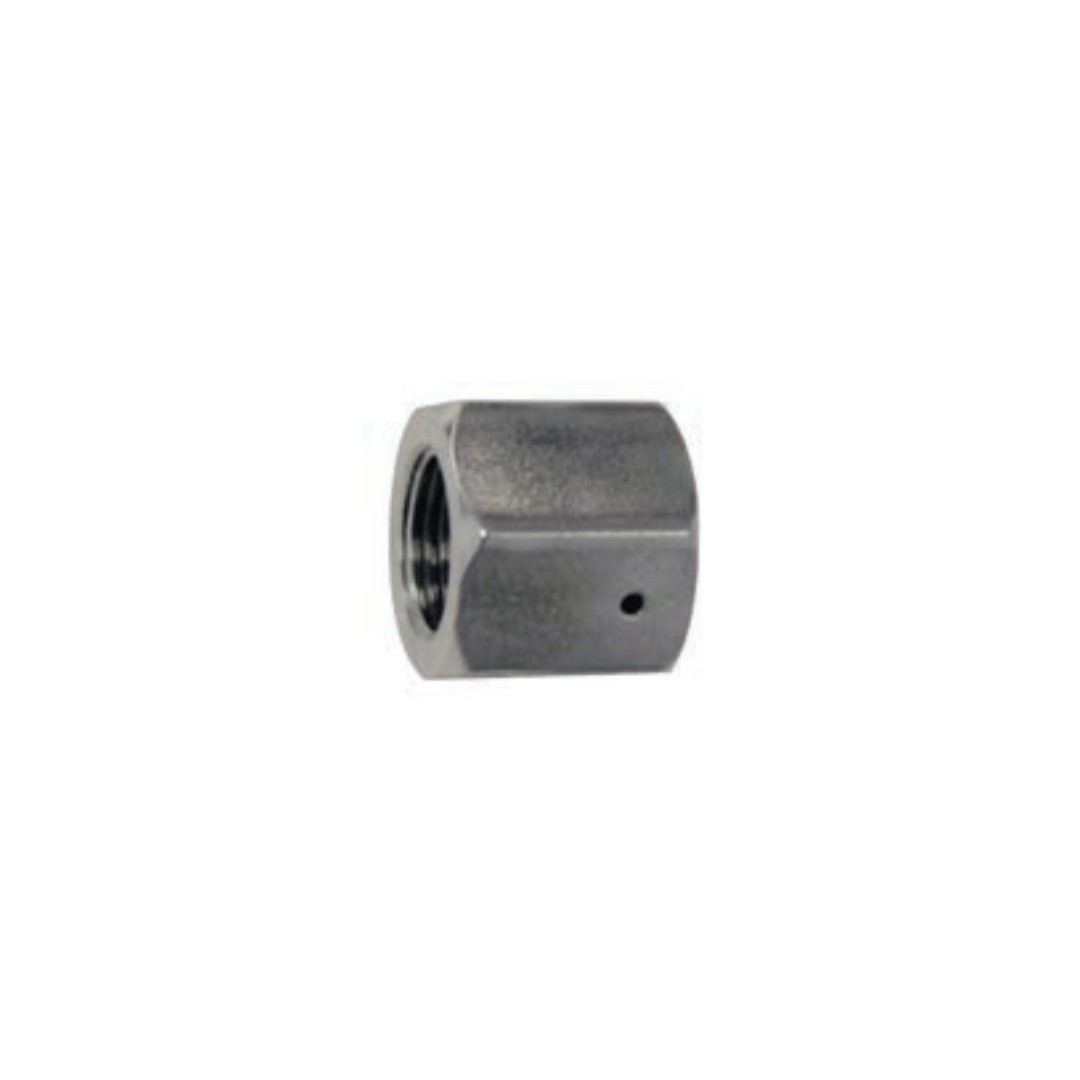

Product Name: P-III Nozzle Nut (Part No. 100036-1)

Description:
The P-III Nozzle Nut (100036-1) is a precision retaining nut specifically designed for the P-III series cutting head assembly in high-performance waterjet cutting systems. It serves as the threaded fastener that secures the focusing tube (mixing tube) and the mixing chamber within the cutting head body. Manufactured from high-strength, corrosion-resistant stainless steel, this nut is engineered to withstand the intense vibration and extreme pressure cycling of 60K waterjet operation.

Applications:

• Secures the mixing tube (focusing tube) in the lower section of the P-III series cutting head assembly.

• Provides clamping force to maintain the coaxial alignment between the water orifice and the mixing tube.

• Used during scheduled consumable replacement (mixing tube changes) and major cutting head overhauls.

• Compatible with H2O Jet, AccuStream, and other standard waterjet systems using P-III style nozzles.

Features:

• High-Strength Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling.

• Precision-Machined Threads: Ensures smooth engagement with the cutting head body and consistent torque application.

• Wrench Flats: Features machined flats for reliable torquing with standard wrenches, allowing for proper tightening and removal.

• Critical Clamping Component: Applies the necessary compression to internal seals and the mixing tube for leak-free, high-pressure operation.

• Semi-Wear Component: Under normal operating conditions, the nut itself is not a direct wear part, though threads may degrade over time with repeated installation cycles.

Maintenance:

Failure Diagnosis (When to Inspect or Replace):

• External Water Leakage: High-pressure water weeping from the nozzle nut connection area indicates insufficient clamping force or seal failure.

• Thread Damage: Stripped, galled, or corroded threads prevent proper tightening and must be replaced immediately.

• Difficult Assembly: If the nut requires excessive force or feels gritty during threading, threads may be damaged.

• Visible Cracks or Deformation: Any cracking or distortion of the stainless steel nut warrants immediate replacement.

• Loose Connection: If the nut becomes loose during operation due to vibration, inspect threads for wear.

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures.

• Thread Inspection: Before reassembly, carefully inspect the nut's internal threads for wear, galling, corrosion, or damage. Clean threads thoroughly.

• Torque Compliance: Tighten the nozzle nut to the specific torque value listed in the equipment service manual using a calibrated torque wrench.

• Two-Wrench Method: Use the appropriately sized wrench on the nut's wrench flats; counter-hold the cutting head body with a second wrench to avoid twisting stress.

• Thread Lubrication: Apply a thin, even layer of high-pressure anti-seize lubricant to the threads during reassembly to prevent galling and ensure accurate torque application.

• Seal Replacement: When reinstalling the nozzle nut, always replace the associated O-rings, backup rings, and gaskets to ensure leak-free operation.

• Replace if Damaged: Replace the nut immediately if threads are damaged, cracks are visible, or the nut shows signs of deformation.

• Proper Seating: Ensure the mixing tube is fully seated in the cutting head body before tightening the nozzle nut to prevent misalignment.

Cross-Reference Information:

• H2O Jet / AccuStream #: 100036-1

• Also known as: Retaining Nut, P-III Nozzle Clamp Nut

• Used with P-III series nozzle bodies (e.g., 100035, 100037) and standard mixing tubes

• Compatible with 60K waterjet intensifier systems
