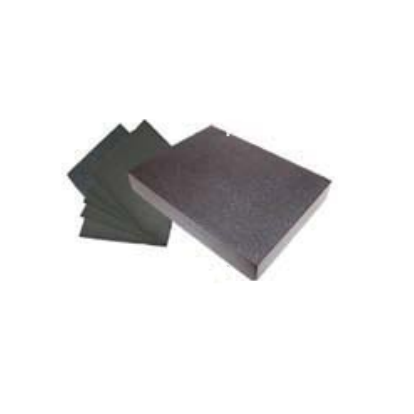

Product Name: Lapping Kit Block (Part No. 20458815)

Description:
The Lapping Kit Block (20458815) is a specialized precision tool used to rebuild and resurface critical sealing surfaces on the end caps and sealing heads of waterjet intensifier pumps . This lapping block is designed to restore flatness to the mating faces of high-pressure components, which can become worn or pitted over time due to extreme pressure cycling and exposure to water and abrasives.

Lapping is a fine abrasive process used to create an ultra-flat, smooth sealing surface. This block serves as the foundation tool for that process. By using this specialized block with lapping compound, technicians can precisely refinish a sealing surface, ensuring a perfect metal-to-metal seal without requiring replacement of the entire expensive component (such as the end cap or check valve body) .

The lapping kit block is a maintenance tool rather than a direct "spare part." Using the correct lapping block is critical; using an improvised or non-flat block will ruin the component's sealing ability and lead to persistent high-pressure water leaks .

Applications:

• Refinishing the sealing face of the High-Pressure End Cap (P/N 20458305) during a pump rebuild .

• Restoring the flat sealing surface on the Sealing Head Assembly (P/N 20458908) .

• Removing minor pitting, scoring, or wear marks from intensifier component mating surfaces.

• Used during major pump overhaul procedures to restore sealing integrity.

Features:

• Precision Flatness: The block is surface-ground to extreme flatness, serving as a true reference plane for lapping.

• Durable Construction: Made from hardened steel or cast iron to maintain its shape during the lapping process.

• Tool Classification: This is a reusable service tool, not a consumable wear part.

• Application-Specific Design: Engineered specifically for the surface area and geometry of intensifier end caps and sealing heads.

Maintenance:

Lapping Process (How to Use):

1. Clean: Thoroughly clean the component's sealing face and the lapping block with solvent.

2. Apply Compound: Spread a small amount of fine lapping compound evenly on the lapping block.

3. Lap: Place the component face-down on the block and move it in a "figure-eight" or circular pattern.

4. Inspect: Frequently wipe the component clean to inspect the surface finish.

5. Clean Up: Once the surface is uniformly flat and smooth, thoroughly clean all lapping compound residue from the component.

General Care:

• Inspect for Damage: Before each use, check the lapping block surface for deep gouges, nicks, or warping. A damaged block will ruin precision components.

• Clean After Use: Immediately after using, wipe off all lapping compound residue from the block and store it in a clean, dry, protective case. Lapping compound residue is abrasive and can damage other tools or surfaces.

• Store Flat: Always store the lapping block on a clean, flat, soft surface to prevent the precision face from being damaged.

• Do Not Drop: Dropping the lapping block can ruin its flatness, making it useless for precision work.
