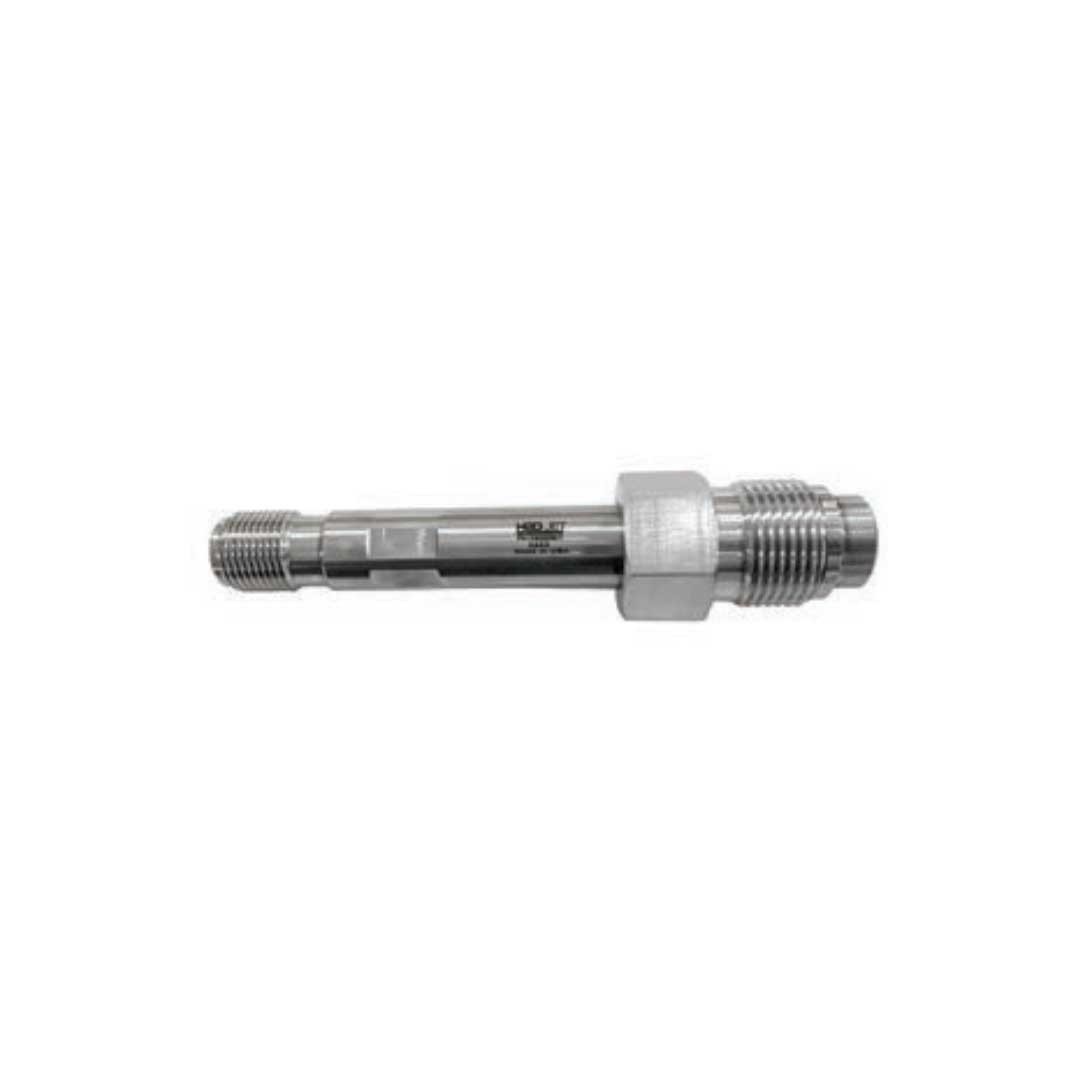

Product Name: KMT to IDE III Adapter (Part No. 301034-1)

Description:
This component is a precision‑machined stainless steel adapter specifically designed to mount an Integral Diamond Eductor (IDE) III cutting head onto a waterjet system originally configured for a KMT (KMT Waterjet Systems) style cutting head. It serves as an interface to retrofits the IDE III platform onto older KMT equipment without requiring complete replacement of the Z‑axis motion system or cutting head mounting block.

By bridging the dimensional and thread differences between the KMT interface and the IDE III body, this adapter allows users to upgrade to the longer‑lasting IDE III technology (integrated diamond orifice and mixing chamber) while retaining the existing machine structure.

Applications:

• Mounting an IDE III cutting head onto a waterjet system originally equipped with a KMT style cutting head

• Retrofitting legacy KMT systems to accept H2O Jet IDE components

• Providing a mechanical and hydraulic interface for a seamless upgrade path to the IDE III platform

Features:

• Precision‑machined stainless steel construction: Ensures perfect coaxial alignment between the retrofitted cutting head components and the existing KMT mounting interface

• Direct retrofit fit: Engineered specifically to bridge the dimensional and thread differences between the KMT head interface and the IDE III cutting head body

• Corrosion‑resistant: High‑grade stainless steel withstands the harsh waterjet environment

• Non‑wear component: The adapter itself is not a consumable part; under normal use, it provides long service life and can be reused across multiple consumable replacement cycles

Maintenance:

Inspection:

• Regularly check the adapter‘s mating faces and cone sealing surfaces for nicks, scratches, galling, or erosion. Any damage to these precision surfaces will compromise the high‑pressure seal and cause water leaks

• Inspect the internal and external threads for signs of wear, corrosion, or damage. Damaged threads prevent proper torque application and must be replaced immediately

Installation and Replacement Guidelines:

• Full depressurization (critical): Always fully depressurize the waterjet system (high‑pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures before installing or removing the adapter

• Clean installation: Perform assembly in a designated clean area. Thoroughly clean all mating surfaces and threads with a soft cloth and compatible solvent before installation

• Thread lubrication: Apply a thin, even layer of high‑pressure anti‑seize lubricant to the male threads during reassembly to prevent galling and ensure accurate torque application

• Torque compliance: Tighten the adapter and associated gland nuts to the specific torque values listed in the equipment service manual using a calibrated torque wrench. Use a second wrench to counter‑hold the adapter body to prevent twisting stress

• Replacement criteria: Replace the adapter immediately if threads are damaged, sealing surfaces are scored or pitted, cracks are visible, or persistent high‑pressure leakage occurs despite correct installation

Cross‑Reference Information:

• H2O Jet #: 301034-1

• OEM: AccuStream

• Compatible with: IDE III cutting head assembly

• Original system compatibility: KMT waterjet intensifier systems
