Plunger Assembly 304399

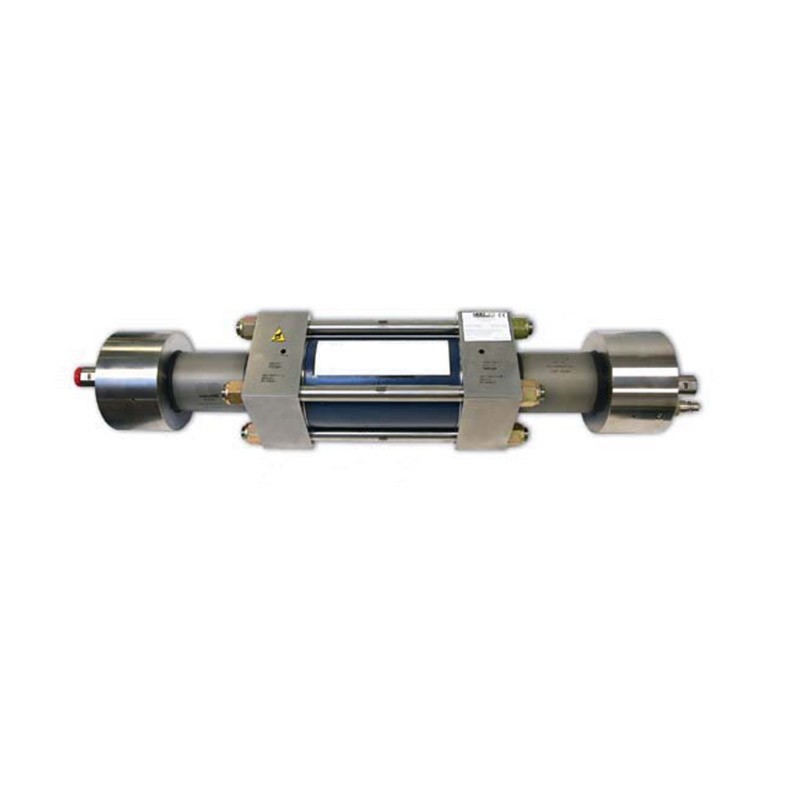

Product Name: Plunger Assembly / Pony Rod (Part No. 304399)
Description:
This component is a plunger assembly, also known as a pony rod, specifically designed for high-pressure waterjet intensifier pumps . It is a precision-engineered assembly that serves as the primary reciprocating element responsible for converting hydraulic energy into ultra-high-pressure water flow . The assembly is typically manufactured with a combination of high-strength stainless steel and features a ceramic-coated or carbide plunger surface for exceptional wear resistance, durability, and sealing performance under continuous industrial operation .
The plunger assembly is engineered to operate at pressures up to 60,000 PSI (approximately 4,137 bar) and is capable of handling demanding 24-hour industrial cutting cycles . The smooth surface finish minimizes friction on dynamic seals, reduces wear on packing components, and ensures consistent pressure output for precision cutting applications . This assembly is manufactured to OEM-level precision for perfect alignment and low friction .
The 304399 is a single plunger assembly. For complete pump maintenance, EnduroMAX pumps require plungers to be replaced at designated intervals (consult the pump manual) or immediately if plungers show signs of wear or damage . A kit containing three plunger assemblies is available under part number 304885 at a lower cost than purchasing three individual units .
Applications:
Serves as the primary pressure-generating element within waterjet intensifier pumps
Converts hydraulic energy into ultra-high-pressure water flow for precision cutting
Used in OMAX EnduroMAX and Maxiem direct drive waterjet pumps
Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI and above
Compatible with KMT, FLOW, OMAX, WSI, BFT, and AccuStream waterjet intensifier systems
Ideal for abrasive waterjet cutting of metal, stone, glass, ceramics, and composites
Features:
Ceramic-Coated Construction: Features premium stainless steel with ceramic-coated plunger technology for exceptional durability and wear resistance
High-Pressure Rating: Engineered for continuous operation at up to 60,000 PSI (4,100 bar)
Precision-Machined Surface: Low-friction surface finish minimizes seal wear and ensures consistent pressure output
OEM-Level Precision: Manufactured to exact tolerances for perfect alignment and reliable fitment
Cross-Compatibility: Fully compatible with multiple major waterjet brands including KMT, FLOW, OMAX, WSI, and BFT
Replacement for 303160: Direct replacement for earlier part number 303160
Maintenance:
Failure Diagnosis:
Pressure Drop: Inability to maintain rated cutting pressure may indicate plunger surface wear or scoring
Increased Seal Wear: Premature failure of dynamic seals often indicates a worn or damaged plunger surface
Visible Surface Damage: During disassembly, inspect the plunger surface for scoring, scratching, pitting, or diameter reduction. Any visible damage warrants immediate replacement
Water Contamination in Hydraulic Oil: Milky hydraulic oil may indicate plunger seal failure allowing water intrusion
External Water Leakage: Water weeping from the pump weep hole suggests plunger or seal failure
Replacement Guidelines:
Scheduled Replacement: EnduroMAX pumps require plungers to be replaced at designated intervals specified in the pump manual
Replace Immediately if Damaged: Replace the plunger assembly immediately if signs of wear, scoring, or damage are visible
Kit Option: For complete pump maintenance, consider using the 3-piece plunger kit (Part No. 304885) for cost savings
Simultaneous Seal Replacement: When replacing the plunger, always replace all associated dynamic seals, O-rings, and backup rings simultaneously
Clean Installation: Perform replacement in a clean area. Thoroughly clean the cylinder bore and seal grooves before installing a new plunger
Lubrication: Apply manufacturer-recommended high-pressure grease to the plunger surface and seals during installation to prevent dry start-up
Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before servicing
Cylinder Bore Inspection: When replacing the plunger, inspect the high-pressure cylinder bore for scoring, pitting, or out-of-round conditions. A damaged cylinder will rapidly destroy a new plunger
Cross-Reference Information:
Also cross-referenced as AccuStream 1-13130
