English Translation of Title:

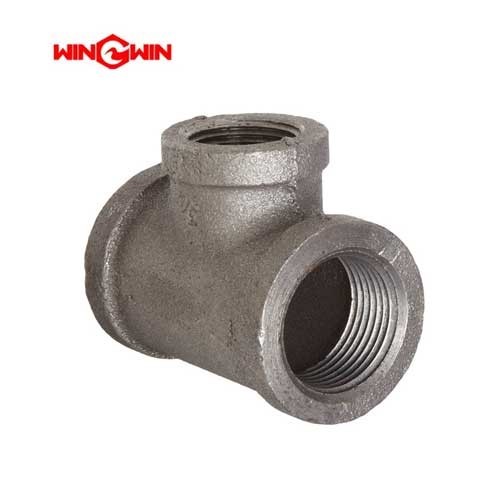

Tee Fitting – Pipe to Pipe, 25 x 13, for Water Jet Cutting Machine Parts, Model No. 72156834-Tee-PipePipe-25-x-13.1336.3-1

Introduction, Application, Features, and Maintenance:

This component is a tee fitting designed for water jet cutting systems. It features a 25 mm main line connection and a 13 mm branch connection, allowing flow to be split or merged between pipe fittings of different sizes.

Application:
Used to divide or merge fluid flow in water jet cutting machines, such as water supply lines, abrasive slurry circuits, cooling water systems, or drain lines. Typical installations include branching off from a main line to supply auxiliary components, combining return lines, or connecting instrumentation where a size reduction is required.

Features:

• Suitable for system-specific pressures (may vary from low-pressure water to high-pressure circuits).

• Tee configuration allows 90‑degree branch flow from the main line.

• Reduces from 25 mm main line to 13 mm branch line.

• Manufactured from high‑strength, corrosion‑resistant material suitable for water and abrasive slurry exposure.

• Pipe threads (NPT or BSP) ensure secure, leak‑proof connections.

• Compact design for easy installation in confined spaces.

Maintenance:

• Regularly inspect the tee body, threads, and sealing surfaces for signs of erosion, cracking, or corrosion.

• Check for leakage at all three connection points during machine operation.

• Replace immediately if any surface pitting, thread damage, or leakage is detected.

• Use compatible thread sealant or tape as required for pipe connections.

• Follow specified torque values for all three connections.
