English Translation of Title:

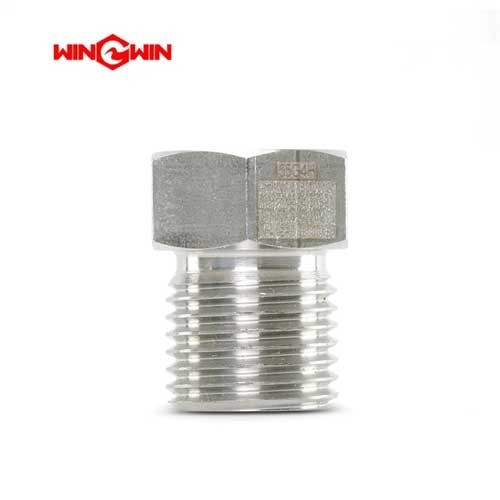

High-Pressure Gland for Water Jet Parts – 75 mm, Model No. 49832678-HP-Gland-75-Water-Jet-Parts.948.3-1

Introduction, Application, Features, and Maintenance:

This component is a high‑pressure gland designed for water jet cutting systems. It is a sealing and compression device used to secure and seal a shaft, tube, or piston rod where it passes through a housing or bulkhead, with a 75 mm nominal size, preventing leakage and maintaining pressure integrity.

Application:
Used in high‑pressure pump assemblies, cylinder seals, or bulkhead penetrations in water jet cutting machines. Typical installations include sealing piston rods in intensifier pumps, securing tubing through machine panels, or providing leak‑tight seals in valve assemblies.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Designed for 75 mm nominal size shafts or tubes.

• Manufactured from high‑strength, corrosion‑resistant material suitable for abrasive water jet media.

• Provides reliable compression sealing around moving or static components.

• Precision‑machined sealing surfaces ensure leak‑free operation.

• Easy to install and maintain with standard tools.

Maintenance:

• Regularly inspect the gland body, threads, and sealing surfaces for signs of erosion, cracking, or wear.

• Check for leakage around the gland during machine operation.

• Verify that the gland is properly torqued to maintain sealing integrity.

• Replace the gland immediately if any leakage, surface pitting, or thread damage is detected.

• Use compatible seals, O‑rings, or packing materials as required.

• Follow specified torque values when tightening the gland.
