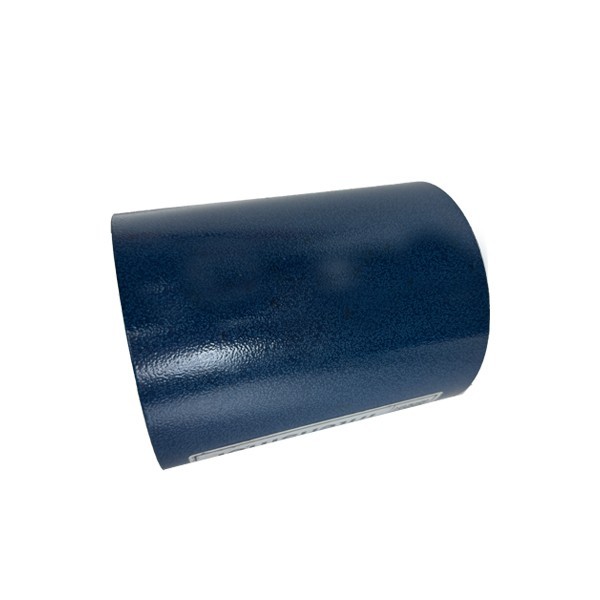

Product Name: Hydraulic Cylinder (15 GPM, 60k-94k, Long Block) – Part No. 190008-2

Description:
This component is a heavy‑duty hydraulic cylinder specifically engineered for the intensifier pump of a waterjet cutting system. The “15 GPM” designation indicates a nominal flow rating of 15 gallons per minute, while “60k-94k” confirms compatibility with system pressures from 60,000 PSI (approximately 4,137 bar) up to 94,000 PSI (approximately 6,480 bar). The “Long Block” suffix typically refers to an extended cylinder body configuration.

As the primary linear actuator of the intensifier, this cylinder converts hydraulic oil pressure into reciprocating mechanical force that drives the high‑pressure plunger. It features a precision‑honed, mirror‑polished internal bore that minimises friction on the piston seals and ensures smooth, efficient power transmission under millions of pressure cycles.

Applications:

• Provides the driving force for the intensifier piston in 15 GPM waterjet pumps.

• Converts hydraulic energy into the linear motion that compresses water to cutting pressure.

• Suitable for 60k, 80k and 94k ultra‑high pressure waterjet systems.

• Used as a direct replacement for the long‑block hydraulic cylinder in H2O Jet and compatible intensifier assemblies.

Features:

• Precision‑Honed Bore: The internal surface is finished to a mirror‑like quality, reducing seal wear and improving cylinder efficiency.

• High‑Strength Material: Manufactured from heat‑treated alloy steel or ductile iron to withstand repetitive high‑pressure cycling.

• Fatigue‑Resistant Design: Engineered for millions of cycles without deformation or structural failure.

• Long Block Configuration: Provides the required stroke length for 15 GPM, high‑flow intensifier pumps.

• Direct OEM Replacement: A standard component in 15 GPM intensifier maintenance kits and major pump overhauls.

Maintenance:

Failure Diagnosis (When to Inspect/Replace):

• External Hydraulic Leakage: Oil weeping from the cylinder head or end bell joints indicates worn rod seals or O‑rings.

• Reduced Cutting Pressure or Slow Cycling: The intensifier may struggle to build full pressure or cycle more slowly than normal, often caused by worn piston seals allowing internal oil bypass.

• Abnormal Heat: A cylinder that runs noticeably hotter than the opposite unit suggests internal leakage or excessive friction.

• Contaminated Hydraulic Oil: Milky or discoloured oil indicates water intrusion past the rod seals.

• Knocking or Erratic Operation: Unusual sounds or inconsistent intensifier cycling can point to internal component wear or seal failure.

Inspection & Replacement Guidelines:

• Hydraulic Oil Cleanliness (Critical): Contaminated oil with impurities is the leading cause of cylinder bore wear and seal failure. Maintain proper filtration and change oil at manufacturer‑recommended intervals .

• Bore Inspection: Each time the cylinder is disassembled for seal replacement, inspect the internal bore for scoring, pitting or out‑of‑round wear. If the bore surface is rough or damaged, the cylinder must be replaced immediately.

• Seal Replacement: When piston or rod seal failure is detected, replace all seals in the cylinder (piston seals, rod seals, O‑rings and backup rings) as a complete set.

• Full Depressurisation (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurise both the hydraulic system and the high‑pressure water circuit, and follow lockout/tagout procedures.

• Proper Handling: The hydraulic cylinder is heavy; support its weight during removal and installation to prevent damage to the plunger or injury to personnel.

• Torque Compliance: When reinstalling, tighten all cylinder head bolts and tie rod nuts to the torque values specified in the equipment service manual, using a staggered (cross) tightening pattern to ensure even clamp load.

• Lubrication: Apply clean hydraulic oil to new seals and the cylinder bore during reassembly to prevent dry start‑up.

• Storage: When not in use, store spare cylinders in a clean, dry environment. Cover exposed metal surfaces to prevent corrosion .

Cross‑Reference Information:

• H2O Jet #: 190008-2

• 15 GPM flow rating

• Compatible with 60k‑94k waterjet intensifier systems

• Long block configuration

• Direct replacement for standard 15 GPM intensifier hydraulic cylinders
