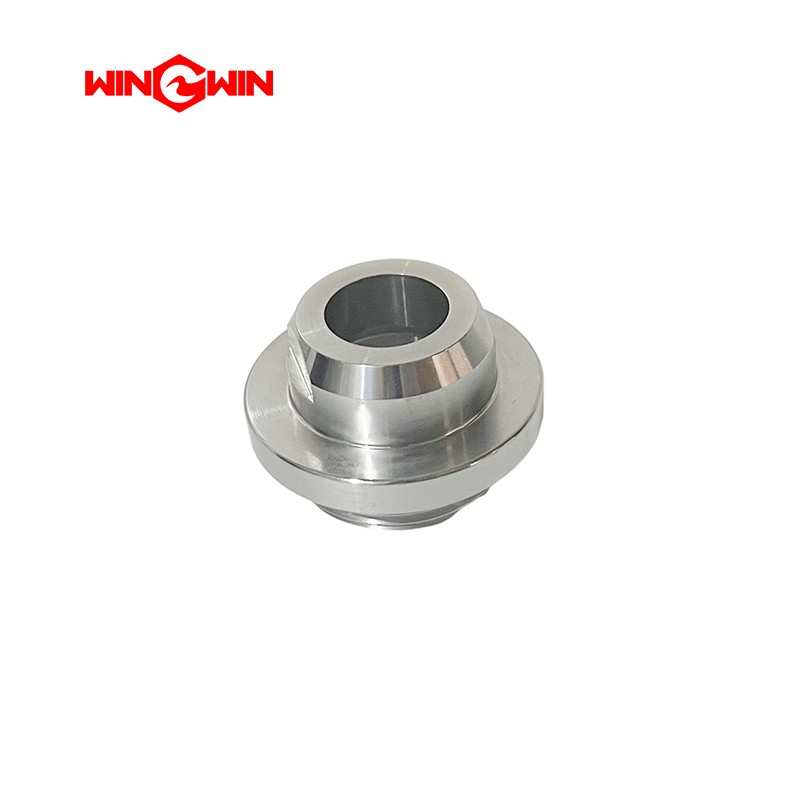

Product Name: Outlet Body Seat (APW Outlet Seat / Check Valve Seat)

Description:
This component is the outlet body seat, also known as the outlet check valve seat or poppet seat, specifically designed for APW series waterjet cutting systems. It is a precision-machined, disc-shaped sealing component that serves as the stationary sealing surface within the high-pressure outlet check valve assembly . The outlet seat works in conjunction with the outlet poppet to create a leak-tight, one-way seal, controlling the flow of pressurized water from the intensifier cylinder to the cutting head .

This component is typically manufactured from hardened stainless steel or tungsten carbide, offering excellent wear resistance and durability under ultra-high pressure operation up to 60,000 PSI (approximately 4,137 bar) . The precision-ground sealing surface is CNC-lapped to ensure perfect sealing contact with the mating poppet, minimizing internal leakage and maintaining pressure integrity over millions of cycles .

Applications:

• Used as the stationary sealing seat within the outlet (discharge) check valve assembly of APW waterjet intensifier pumps

• Installed in the outlet body or sealing head assembly, positioned between the intensifier cylinder and the outlet poppet

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar)

• Compatible with APW series intensifier pumps and standard waterjet systems

• Serves as a direct replacement for OEM outlet seat components in check valve assemblies

Features:

• Hardened Material Construction: Manufactured from hardened stainless steel or tungsten carbide, providing exceptional wear resistance and corrosion protection under extreme pressure cycling

• Precision-Ground Sealing Surface: CNC-ground and lapped to exacting tolerances for leak-tight shut-off when mated with the corresponding outlet poppet

• 60,000 PSI Pressure Rating: Engineered for continuous operation at ultra-high pressure without deformation or seal failure

• Consumable Component: The outlet seat is a high-wear consumable part designed to protect the more expensive outlet body or sealing head from damage

• Interchangeable Design: Precision-engineered to integrate seamlessly with outlet body, sealing head, and poppet assemblies

Maintenance:

• Critical Wear Component: The outlet seat is a high-wear consumable part. If the seat sealing surface is damaged or worn, the system will experience pressure drop or inability to maintain rated cutting pressure

• Inspection: During check valve or intensifier overhaul, inspect the seat sealing surface for pitting, erosion, cracking, or indentation caused by repeated poppet impact. Even minor surface damage can cause pressure loss

• Replacement Criteria: Replace the outlet seat immediately if any surface damage is visible. A worn or damaged seat will prevent the check valve from sealing properly

• Simultaneous Poppet Replacement: Always replace the corresponding outlet poppet simultaneously with the seat. Reusing a worn poppet with a new seat will compromise sealing and shorten the life of both components

• Water Quality Impact: Poor water quality (contaminants, hardness) accelerates wear on both the seat and poppet. If these components require replacement too frequently, investigate and improve water filtration/treatment

• Full Depressurization: Always fully depressurize the waterjet system (both hydraulic and high-pressure water circuits) and follow lockout/tagout procedures before removing the check valve assembly or replacing the outlet seat

• Kit Availability: The outlet seat is commonly available as part of check valve repair kits, which include the seat, poppet, spring, and other required components for a complete valve overhaul
