Product Name: Dump Valve Repair Kit (for Yongda Waterjet)

Description:
This component is a repair kit designed for the pneumatic dump valve assembly in Yongda waterjet cutting systems. It contains the essential consumable components required to restore the valve's ability to safely dump high-pressure water from the system. The dump valve serves as a critical safety device, automatically venting pressure when the cutting head is not in operation. The kit is rated for use in 60,000 PSI (approximately 4,137 bar) systems and includes wear items to renew leak-tight sealing.

Applications:

• Overhauls the pneumatic dump valve assembly between the intensifier pump and the cutting head.

• Replaces worn dynamic seals and critical wear parts.

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar).

Features:

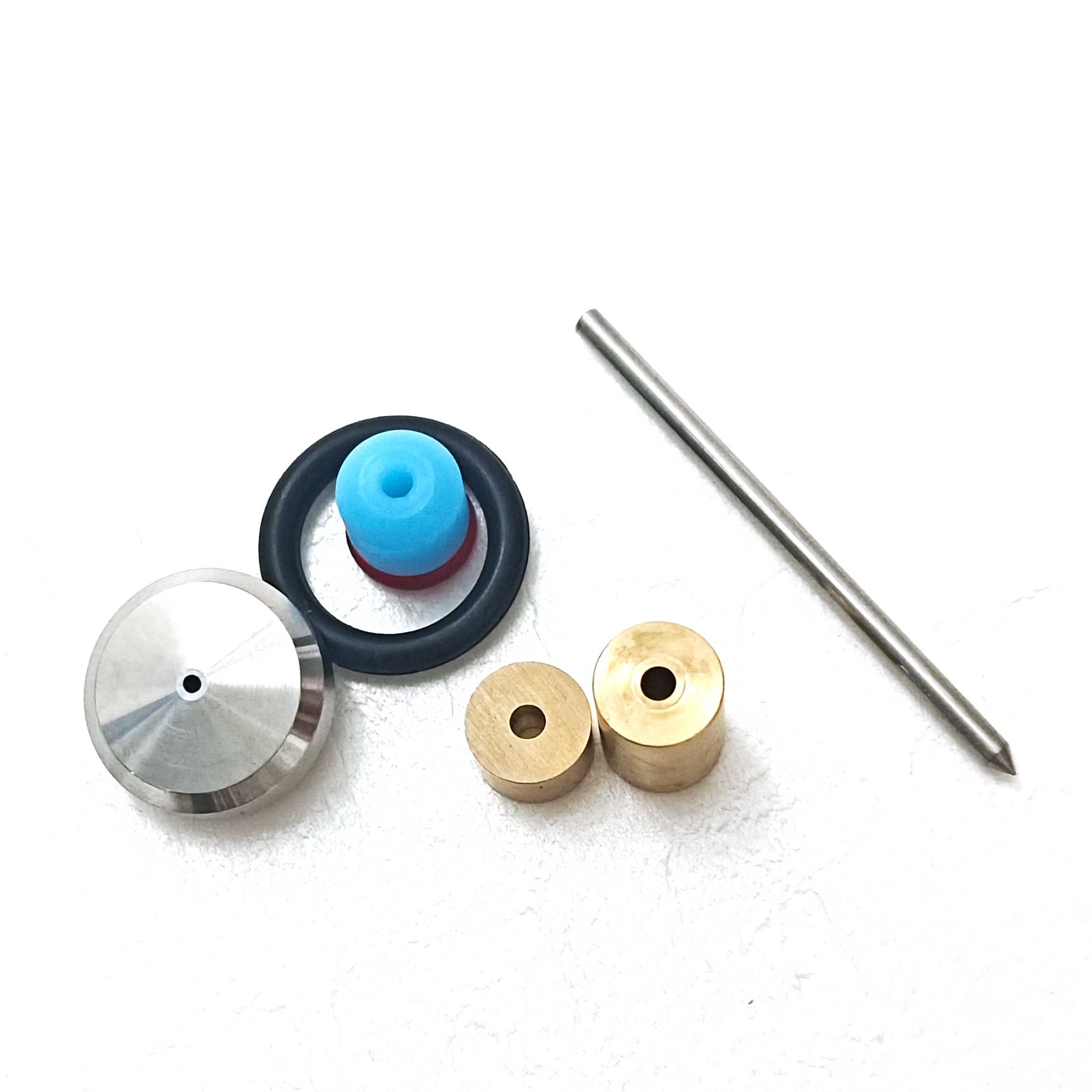

• Complete Kit: Typically includes a valve stem, high-pressure seals, O-rings, backup rings, and guide washers.

• Critical Safety Component: Contains parts to ensure the valve seats correctly to stop water flow when air pressure is applied.

• Anti-Extrusion Design: Includes stainless steel or brass backup rings to prevent seal failure under pressure spikes.

• OEM Compatibility: Direct replacement parts for maintaining the valve to original specifications.

Maintenance:

• Critical Component: The dump valve is a safety device; proper maintenance is imperative to prevent injury. Replace all parts in the kit as a set.

• Full Depressurization: Before servicing, fully depressurize high-pressure water and hydraulic systems and disconnect air supply.

• Seal Replacement: Remove the old valve stem, seals, and backup rings. Clean the valve body cavity, lubricate new seals with grease, and install the new components.

• Torque Compliance: Tighten the gland nut to the specific torque value listed in the service manual to ensure proper compression.
