Product Name: Adapter, JIC/ORB, .75 x .75 – Part No. 05070743

Description:

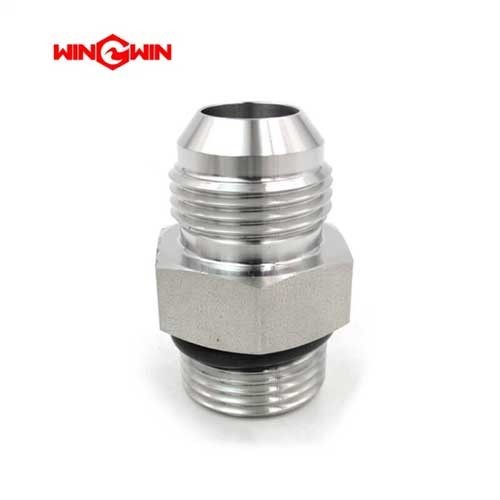

This component is a high-pressure hydraulic adapter designed to convert between two different connection standards within the hydraulic system of a waterjet cutting machine . The JIC/ORB designation indicates it connects a JIC (Joint Industry Council) 37° flare fitting to an ORB (O-Ring Boss) port, with a straight male-to-male configuration.

This specific adapter has a .75 inch (3/4″) JIC male connection on one end and a .75 inch (3/4″) ORB male connection on the other . The JIC end provides a vibration-resistant metal-to-metal seal on the 37° flare cone, while the ORB end uses a precision straight thread and seals via an elastomeric O-ring compressed into the machined face of the port.

Manufactured from high-strength carbon steel with a corrosion-resistant zinc or trivalent plating , the adapter is built to withstand the severe pressure and vibration of industrial waterjet operation while preventing fluid leakage. This OEM replacement part conforms to SAE J514 standards and is fully compatible with 60,000-94,000 PSI (4,137-6,480 bar) waterjet hydraulic systems.

Applications:

• Converts between 3/4″ JIC (37° flare) male connections and 3/4″ ORB male ports

• Adapts hydraulic hoses or components with different connection standards within the same circuit

• Installed in the hydraulic power unit, manifold assemblies, and intensifier pump circuits

• Compatible with KMT, AccuStream, H2O Jet, and other standard waterjet systems

• Suitable for hydraulic oil circuits in high-pressure waterjet cutting equipment

Features:

• Dual Connection Standards: JIC 37° flare male on one end for vibration-resistant metal-to-metal sealing; ORB male on the other end for O-ring sealed, leak-proof connection

• .75 x .75 Size: 3/4″ ORB port (typically 1 1/16"-12 thread) and 3/4″ JIC fitting on both ends

• Straight Male-to-Male Configuration: Provides direct in-line connection without changing fluid path direction

• Corrosion-Resistant Construction: High-strength steel with zinc or trivalent plating for durability in moist waterjet environments

• Straight Thread Design: ORB straight thread does not rely on thread deformation for sealing, preventing stress on the port

• O-Ring Seal (ORB End): Primary sealing is performed by an O-ring seated in the groove of the male fitting, providing highly reliable sealing under vibration

• Direct OEM Replacement: Interchangeable with original manufacturer specifications and standard SAE J514 hydraulic fitting dimensions

Maintenance:

Failure Diagnosis (When to Replace):

• External Fluid Leakage: Visible oil weeping at either connection point. Leak at JIC end typically indicates damaged flare surface or loose nut; leak at ORB end indicates failed or damaged O-ring

• Thread Damage: Stripped, galled, or corroded threads on either end prevent proper tightening

• O-Ring Degradation (ORB End): Inspect the O-ring for nicks, cuts, flattening (compression set), hardening, or cracking. Any visible damage warrants replacement

• JIC Flare Damage: Inspect the 37° male flare surface for nicks, scratches, or deformation — any damage will cause high-pressure leaks

• Cracked or Deformed Body: Any visible cracking or distortion of the adapter body requires immediate replacement

• Pressure Drop: Inability to maintain system pressure may indicate leaking adapter seals

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize the hydraulic system and high-pressure water circuits, and follow lockout/tagout procedures

• Single-Use O-Ring (ORB End): The O-ring for the ORB side is a single-use consumable. Always install a new, lubricated O-ring whenever the adapter is removed and reinstalled . Do not reuse old O-rings

• JIC Flare Inspection: Carefully inspect the JIC male flare surface and the mating nut threads for any damage. The JIC connection seals on the 37° flare cone — even minor surface damage will compromise sealing

• Thread Preparation: Clean all threads thoroughly with a soft brush and compatible solvent. Remove all debris, old sealant, and corrosion

• Installation for ORB Connection: Lubricate the new O-ring with clean hydraulic oil. Ensure it is properly seated in its groove. Thread the adapter into the ORB port by hand to avoid cross-threading, then tighten to the specific torque value listed in the equipment service manual

• Installation for JIC Connection: Lubricate the threads of the JIC nut with clean hydraulic oil. Assemble and tighten to the specified torque. Do not use PTFE tape or thread sealant on JIC threads, as the seal is made at the 37° flare cone, not the threads

• Torque Compliance: Use a calibrated torque wrench to tighten both connections to the values specified in the equipment service manual. For a 3/4″ ORB fitting in a steel body, typical torque range is 100-120 N·m (74-89 ft·lbs). Do not over-tighten

• Replacement Criteria: Replace the adapter immediately if threads are damaged, the O-ring groove is compromised, the JIC flare surface is nicked or deformed, the body shows visible cracking or deformation, or persistent leakage occurs despite proper installation

• Cross-Reference Part Numbers: Interchangeable with JIC/ORB .75 x .75 adapters from various manufacturers conforming to SAE J514 specifications
