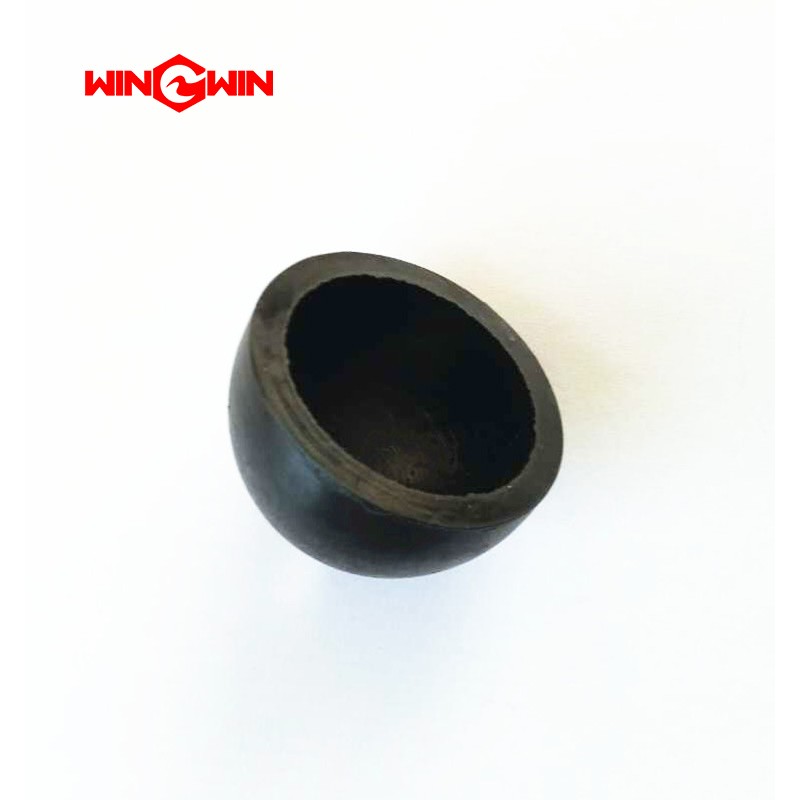

Product Name: 6.35mm Dust Cover / Protective Boot

Description:
This component is a dust cover, also known as a protective boot or sealing cover, with a nominal size of 6.35mm (1/4 inch). It is designed for waterjet cutting systems to protect critical components such as linear guides, ball screws, cylinders, and transmission shafts from contaminants including water mist, abrasive dust, metal debris, and cutting residue. Constructed from wear-resistant and corrosion-resistant materials, it serves as a flexible barrier that extends equipment service life.

Applications:

• Protects 6.35mm diameter shafts, guide rods, and plungers on waterjet cutting machines

• Applied to hydraulic cylinder rods and pneumatic actuator shafts to prevent contamination ingress

• Suitable for protecting linear motion guide rails and transmission screw assemblies on waterjet systems

• Compatible with APW series and other standard waterjet cutting systems

Features:

• Material Options: Available in wear-resistant and corrosion-resistant materials including rubber, nylon, coated fabrics, and high-temperature resistant composites

• 6.35mm Nominal Size: Designed to fit 1/4 inch (6.35mm) diameter components securely

• Flexible Construction: Allows free movement of protected components while maintaining a reliable seal

• Contaminant Resistance: Effectively blocks water, oil, abrasive dust, and metal debris from entering sensitive mechanisms

• Easy Installation: Typically features a push-fit or clamp-style mounting design for convenient maintenance

Maintenance:

• Regular Inspection: Periodically check the dust cover for signs of cracking, wear, deformation, or material degradation

• Cleaning: Wipe the external surface with a soft cloth and mild cleaning solution to remove accumulated abrasive dust and debris

• Seal Check: Verify the sealing lip or mounting edge remains intact and properly seated against the mating component

• Full Depressurization: Always fully depressurize the waterjet system before removing or servicing any dust cover on high-pressure components

• Replacement Criteria: Replace the dust cover if cracks, tears, loss of elasticity, or permanent deformation is detected. A compromised cover will allow contaminant ingress

• Proper Seating: During installation, ensure the cover is fully seated on the component and any retaining clips or bands are properly secured
