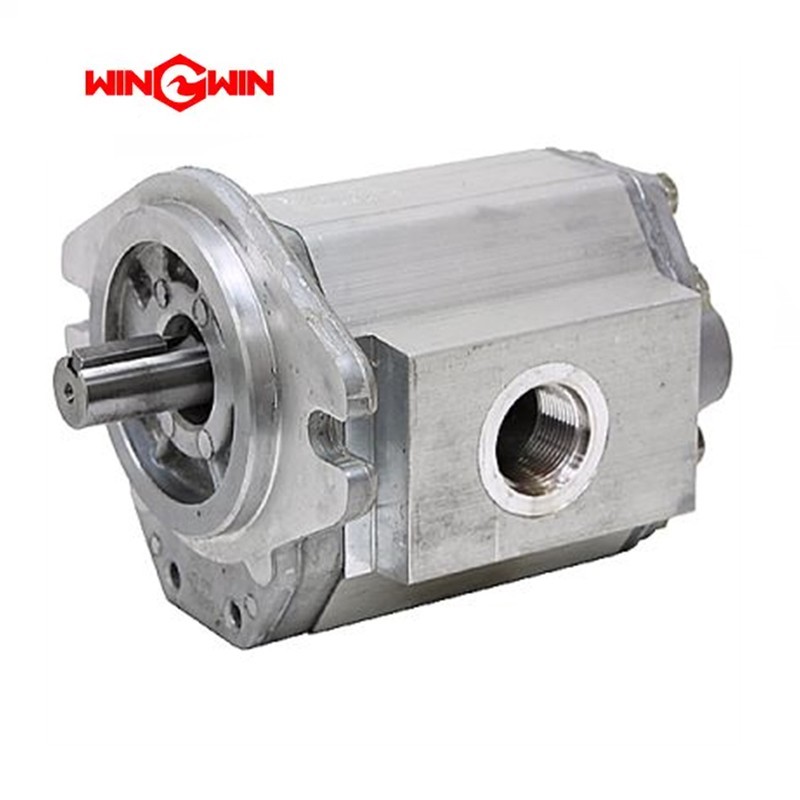

Product Name: Gear Pump (Part No. 20498626)

Description:
This component is a gear pump, a critical sub-component within the hydraulic pump assembly of a waterjet cutting system . It is a positive displacement pump that uses meshing gears to pressurize and circulate hydraulic fluid throughout the system . According to the parts diagram for the Hydraulic Pump Assembly (20498668), this gear pump acts as the primary or auxiliary hydraulic fluid mover, essential for driving the intensifier and generating cutting pressure . It is typically driven by an electric motor via a flexible coupling and is designed for high-cycle, continuous operation.

Applications:

• Serves as the prime mover of hydraulic fluid within the waterjet’s hydraulic power unit

• Supplies pressurized hydraulic oil to drive the main intensifier pump

• Used in the Hydraulic Pump Assembly (20498668) of waterjet cutting systems

• Suited for 60,000 PSI (approximately 4,137 bar) and higher pressure waterjet systems

Features:

• Positive Displacement Design: Provides a consistent, predictable flow of hydraulic fluid under varying system pressures

• Robust Construction: Engineered for high-cycle, continuous industrial operation

• Compact Package: As a fixed displacement pump, it efficiently moves hydraulic fluid while minimizing space requirements

• OEM Compatibility: Direct replacement part for the Hydraulic Pump Assembly (20498668)

Maintenance:

When to Replace (Failure Diagnosis):

• Loss of Cutting Pressure: If the intensifier fails to reach operating pressure and the motor is running, the gear pump may be worn or damaged

• Excessive Pump Noise: Unusual whining, growling, or clattering sounds indicate internal wear or cavitation

• Metal Contamination: Discovery of metal particles in the hydraulic fluid or filters points to internal pump failure

• External Leakage: Significant hydraulic oil leakage from the pump shaft seal or housing indicates failure

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the hydraulic system, shut down the high-pressure water system, and follow lockout/tagout procedures

• Fluid Level and Quality Check: Ensure the hydraulic reservoir is filled to the correct level with clean, recommended hydraulic oil; contaminated fluid is a primary cause of pump wear

• Suction Strainer Inspection: A clogged suction strainer on the reservoir can starve the pump and cause cavitation, leading to noise and damage

• Coupling Alignment: Check the alignment of the gear pump with the electric motor drive. Misalignment can cause vibration, seal failure, and bearing wear

• Disassembly and Cleaning: If the pump has ingested debris, a certified technician may disassemble, clean, and inspect internal components, though replacement is often the more reliable solution for high-cycle pumps

• Component Cleanliness: During replacement, maintain absolute cleanliness; any debris entering the hydraulic system will cause rapid failure of valves and seals

• Torque Compliance: When reinstalling, tighten all mounting bolts and hydraulic line connections to the specific torque values listed in the equipment service manual

• Cross-Reference Compatibility: This gear pump is item #2 in Table 12-7 of the Hydraulic Pump Assembly (20498668) and works in conjunction with piston pump 05045505
