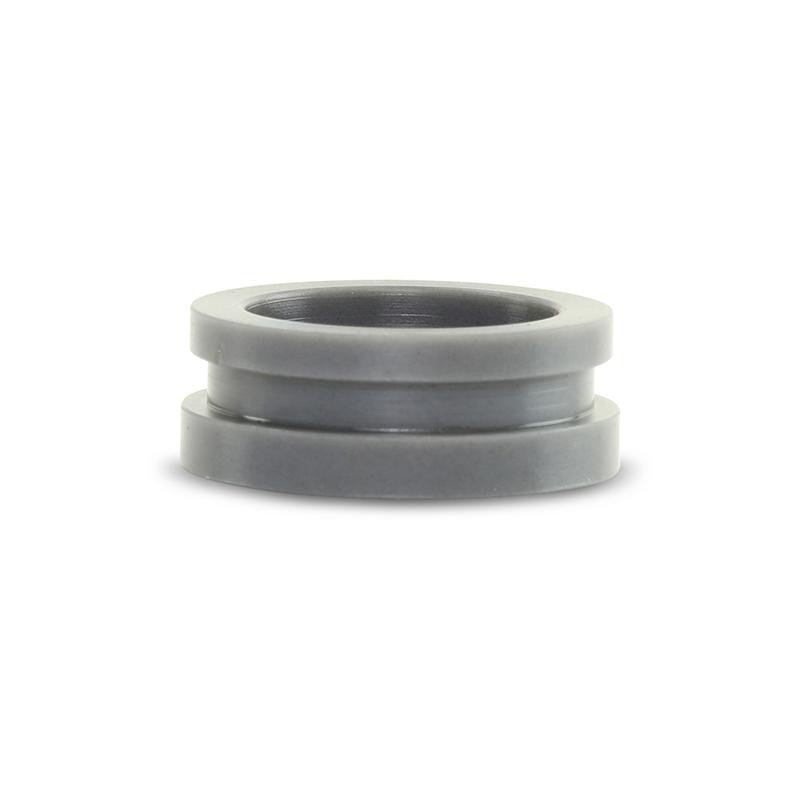

Product Name: Port Adapter Static Seal (Part No. 1-11994)

Description:
This component is a static seal specifically designed for the port adapter of a high-pressure waterjet intensifier pump. It is a precision-manufactured sealing component that prevents high-pressure water leakage at the static interface between the intensifier pump body and the port adapter fitting. The seal is constructed from high-pressure rated elastomeric material and serves as a critical component for maintaining system pressure integrity. It is rated for ultra-high pressure waterjet systems and is designed as a direct OEM replacement part .

Applications:

• Seals the connection between the intensifier pump and the port adapter in waterjet cutting systems

• Prevents high-pressure water leakage at static (non-moving) interfaces

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI and above

• Compatible with standard waterjet intensifier pump assemblies

Features:

• OEM Specification: Manufactured to original equipment standards for precise fit and reliable sealing

• Static Sealing Design: Engineered specifically for non-moving interface applications where components remain fixed

• High-Pressure Rating: Designed to withstand extreme pressure cycling without seal failure

• Cross-Reference Compatibility: Interchangeable with industry standard part numbers

Maintenance:

• Inspect for Leaks: Regularly check the port adapter connection area for signs of high-pressure water leakage during routine maintenance

• Replace During Overhaul: This static seal should be replaced whenever the port adapter is disconnected from the intensifier pump, as seals may deform or harden over time

• Lubrication: Apply a thin, uniform coat of high-pressure grease to the seal during installation to ensure proper seating and prevent damage

• Surface Preparation: Before installing a new seal, ensure the mating surfaces and seal groove are clean, dry, and free from debris, old seal residue, or scratches

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before disconnecting the port adapter or replacing the seal

• Replacement Indicators: Replace immediately if the seal shows signs of hardening, cracking, nicks, cuts, or permanent deformation

• Storage: Store spare seals in a cool, dry environment away from direct sunlight, ozone sources, and chemicals to prevent premature aging
