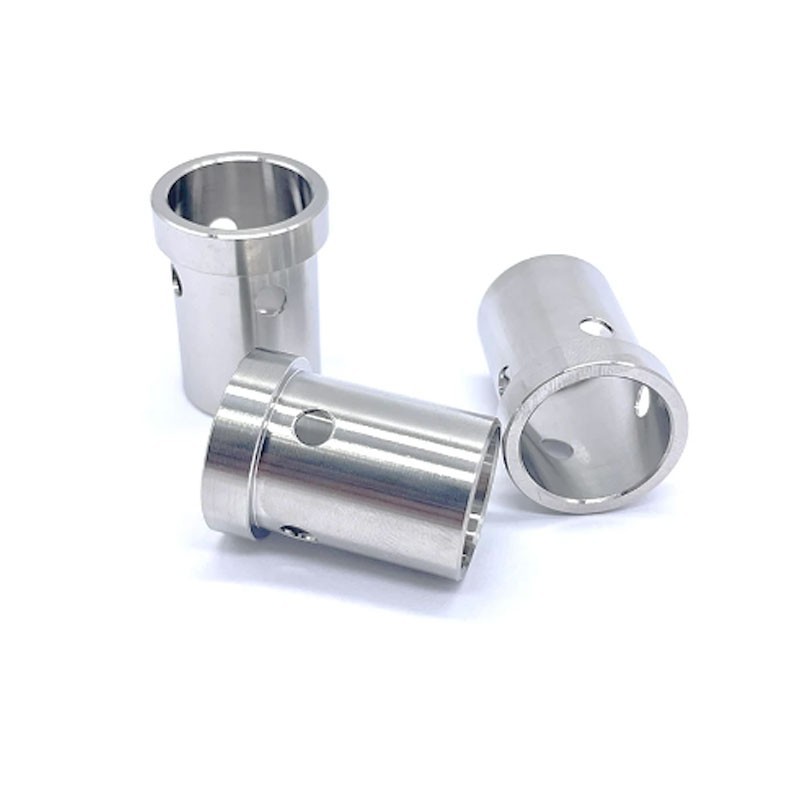

Product Name: Displacement Sensor Bushing / Guide Bushing (Part No. CP020030/562)

Description:
This component is a displacement sensor bushing, also referred to as a mechanical sleeve or guide bushing, specifically designed for BFT waterjet intensifier pumps . It is a precision-machined bushing manufactured from stainless steel, engineered to withstand the extreme operating conditions of ultra-high pressure waterjet cutting systems.

The bushing serves as a critical positioning and guiding component within the intensifier assembly. Its primary function is to provide a precise, wear-resistant bearing surface that houses and guides the displacement sensor piston or related mechanical components . This ensures accurate movement and positioning of internal parts, which is essential for consistent pump performance and reliable pressure generation.

The component is manufactured with high dimensional accuracy to maintain proper alignment within the intensifier stack. It is rated for continuous operation at pressures up to 4,137 bar (approximately 60,000 PSI) . Its lightweight design (approximately 0.001 kg) facilitates easy handling during maintenance procedures . This bushing is a standard component in BFT intensifier models, including CP022001/2 and HT022012/172 .

Applications:

• Installed within the intensifier pump assembly of BFT waterjet cutting systems

• Guides and positions the displacement sensor piston or mechanical components within the high-pressure pump

• Used during scheduled preventive maintenance, major pump overhauls, or when sensor alignment issues are detected

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (4,137 bar) and above

• Compatible with BFT, BHDT, Maximator, and STM waterjet intensifier systems

Features:

• Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Tolerances: Manufactured to exacting specifications for proper fit and accurate component guidance

• High-Pressure Rating: Engineered for continuous operation at 4,137 bar (60,000+ PSI)

• Ultra-Lightweight: Weighs approximately 0.001 kg for easy handling during maintenance

• Critical Alignment Component: Essential for the accurate positioning and movement of the intensifier's displacement sensor piston

• OEM Compatibility: Direct replacement for BFT part number CP020030/562; cross-referenced with MJ0040080, 5100127, and 106645

Maintenance:

Failure Diagnosis (When to Inspect/Replace):

• Displacement Sensor Issues: If the intensifier exhibits erratic cycling or fails to shift direction properly, the bushing may be worn, affecting sensor alignment

• Pressure Instability: Worn or damaged bushings can cause misalignment of internal components, leading to pressure fluctuations

• Visible Wear or Damage: During pump disassembly, inspect the bushing for signs of scoring, galling, deformation, or corrosion. Any visible damage warrants replacement

• Scheduled Preventive Maintenance: It is standard practice to inspect the displacement sensor bushing during major pump overhauls and replace it if any wear is detected

• Unusual Pump Noise: Grinding or rattling sounds from the intensifier area may indicate bushing wear

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system (high-pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures

• Clean Area Maintenance: Perform the rebuild in a designated clean area to prevent contamination of components with abrasive particles

• Disassembly: Remove the intensifier end cap and carefully extract the displacement sensor assembly to access the bushing

• Thorough Cleaning: Clean the bushing and its mounting cavity with a soft cloth and low-pressure water. Remove all debris, old seal residue, and mineral deposits. Do not use abrasive tools

• Dimensional Inspection: Measure the bushing inner and outer diameters at multiple points to detect uneven wear or out-of-round conditions

• Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease to the bushing during installation to ensure smooth movement

• Torque Compliance: When reinstalling the displacement sensor and end cap components, tighten all retaining hardware to the specific torque values listed in the equipment service manual

• Replacement Criteria: Replace the bushing immediately if visible wear, scoring, deformation, or cracking is detected. Do not attempt to repair a damaged bushing

• Cross-Reference Information: Interchangeable with MJ0040080, 5100127, and 106645
