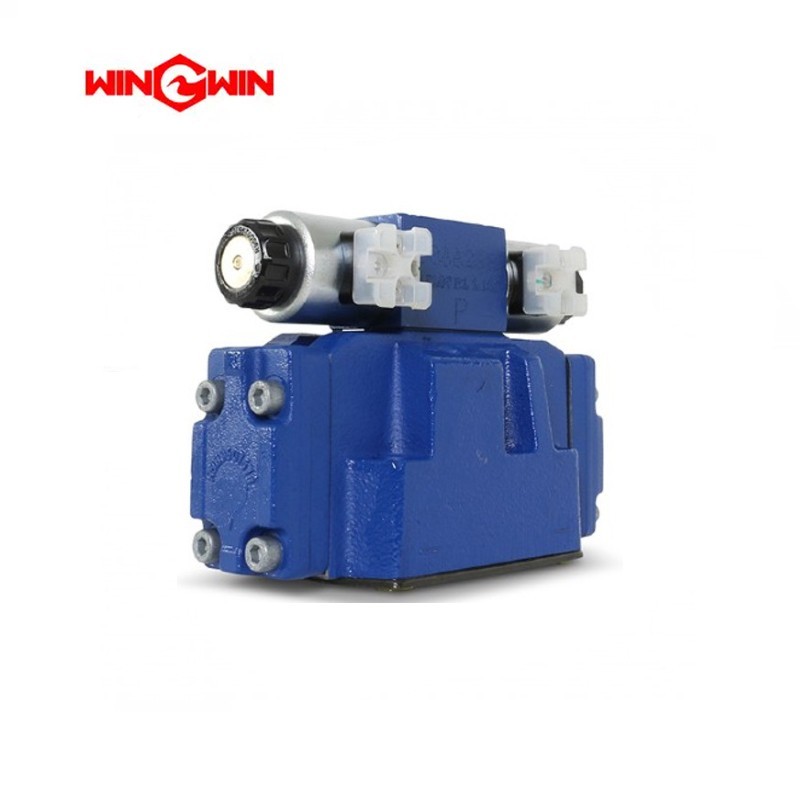

Product Name: Pilot Shift and Main Valve Assembly / Hydraulic Shift Valve Unit (Part No. 20458941)

Description:
This component is the integrated pilot shift and main valve assembly for the hydraulic manifold of a waterjet intensifier pump. It is an OEM replacement part responsible for directing the flow of high-pressure hydraulic fluid to control the reciprocating motion of the intensifier piston .

This assembly consists of two key functional stages working together: the pilot valve and the main shift valve . The pilot valve is a smaller, electrically or hydraulically actuated control valve that receives the signal to change the intensifier’s direction. This signal is often triggered by proximity sensors that detect the piston’s end-of-stroke position . The pilot valve then directs a small amount of fluid to shift the larger main shift valve. The main valve handles the full hydraulic flow, redirecting it to the opposite side of the hydraulic cylinder to reverse the piston’s direction. This two-stage design allows for precise, high-flow control using a low-power signal .

The assembly is critical for maintaining consistent and reliable pump cycling, stable cutting pressure, and overall system performance. It is part of the intensifier’s main control block  and is typically serviced when shift timing becomes inconsistent or hydraulic response slows .

Applications:

• Controls the directional flow of hydraulic fluid to drive the intensifier piston’s forward and return strokes.

• Converts electrical or mechanical pilot signals into powerful hydraulic shifting action.

• Used during pump troubleshooting, major overhauls, or when the intensifier fails to shift direction properly.

• Compatible with H2O Jet, AccuStream, and other standard 60k-94k waterjet intensifier systems.

Features:

• Integrated Two-Stage Design: Combines the pilot and main valve for reliable, high-flow hydraulic control .

• Precision-Machined Components: Ensures accurate spool movement and leak-free operation under high pressure.

• Interchangeable Parts: The main stage shift valve body may be available separately, while the pilot valve can be serviced as a distinct sub-component .

• Critical Timing Component: Essential for the precise stroke reversal that generates continuous cutting pressure .

• Direct OEM Replacement: Interchangeable with original equipment manufacturer part number 20458941.

Maintenance:

Failure Diagnosis (When to Replace or Service):

• Intensifier Fails to Shift: The piston stops at the end of its stroke and does not reverse direction. This is the primary symptom of shift valve failure.

• Erratic or Inconsistent Shifting: The pump cycles irregularly, "double strokes," or the shift timing seems unpredictable .

• Sluggish Hydraulic Response: A noticeable delay between the shift signal and the actual piston reversal.

• External Hydraulic Leakage: Oil weeping from the valve body interface or around the pilot valve indicates seal failure.

• Stuck Pilot Valve Spool: The pilot valve spool must move freely with light pressure. If jammed, the valve may be warped or contaminated. Try loosening and re-torquing the pilot valve before replacement .

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize the high-pressure water system and the hydraulic system, and follow lockout/tagout procedures.

• Pilot Valve Check: Using your fingers, check the pilot valve spool for freedom of movement. It must move with light pressure through the full stroke .

• Spool Inspection: If removed, check that all spool grooves are clear and all polished surfaces are undamaged. Inspect inside the valve body for any damage or foreign material .

• Torque Compliance (Critical): When reinstalling the pilot valve, lubricate new O-rings with high-pressure grease (e.g., P/N 400015-1). Torque the fasteners in one-eighth turn increments using a figure-eight pattern to 50 in-lbs (5.7 Nm). Failure to adhere to the torquing sequence may warp the body, preventing spool movement .

• Inspect Actuating Plunger: Ensure the actuating plunger is not bent, the ends are not mushroomed, and the length is approximately 2.75 inches [70 mm] .

• Replace as a Unit: While individual components may be available, it is often recommended to replace the entire assembly if internal wear is suspected to ensure reliable operation .

• Clean Installation: Perform valve service in a clean area. Contamination is a leading cause of valve sticking and premature wear.

Cross-Reference Information:

• H2O Jet / KMT #: 20458941

• Component of Intensifier Assembly 20458728

• Works with: Proximity Switch (e.g., P/N 10180081, 05127584), Shift Cable Assembly
