Title Translation:
Waterjet Cutting Equipment Accessory, Name/Code: CJ201288-HP-Swivel-Joint-90D-25-MF.1155.3-1

Introduction:

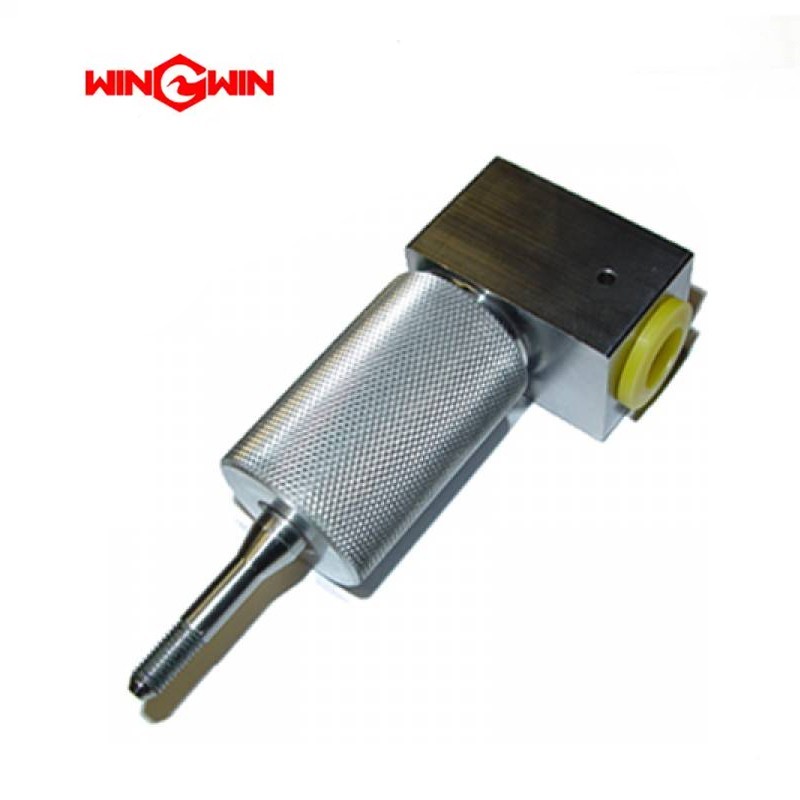

This component is a high-pressure swivel joint with a 90-degree configuration, designed for waterjet cutting equipment. It allows rotational movement while maintaining a leak-free high-pressure fluid connection, providing flexibility in hose and tubing routing.

Applications:
Used in high-pressure waterjet cutting systems. Installed in fluid delivery lines where hose or pipe orientation needs to change direction or accommodate movement, such as at cutting head assemblies or pump connections.

Features:

• 90-degree design for directional changes in fluid lines.

• Swivel capability allows rotational adjustment during installation.

• Engineered to withstand extreme high-pressure operation.

• Corrosion and wear-resistant materials for long service life.

• Male-female (MF) thread configuration for versatile connection options.

Maintenance:

• Inspect regularly for leaks, wear, or damage to sealing surfaces and threads.

• Check swivel action for smoothness; clean if restricted.

• Replace seals or the entire joint if leakage, stiffness, or visible damage occurs.

• Not field-repairable; replacement recommended when worn or damaged.
