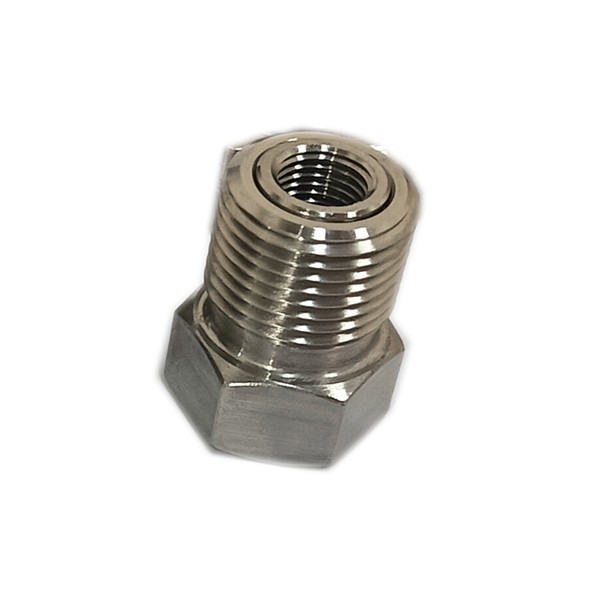

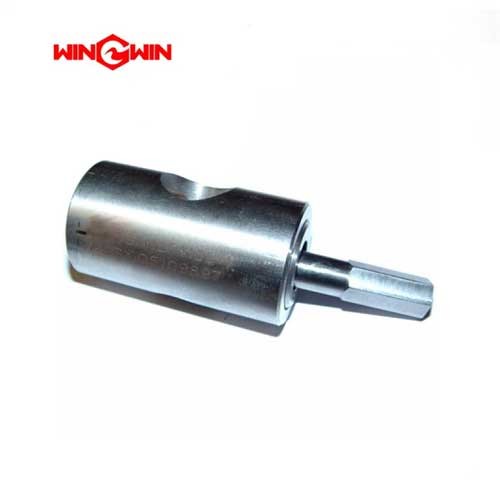

Product Name: Gland Nut / High-Pressure Gland Nut (Part No. VDS095405256)

Description:
This component is a high-strength gland nut specifically engineered for BHDT brand high-pressure waterjet intensifier pumps operating up to 60,000 PSI (approximately 4,137 bar) and higher. It is a precision-machined, threaded retaining nut typically constructed from hardened stainless steel to withstand extreme pressure cycling, vibration, and corrosion .

As a critical fastening component within the check valve or on/off valve assembly, the gland nut serves to secure and retain internal valve components including seals, poppets, and springs in their correct positions, while also providing the necessary compression force for high-pressure sealing. It is typically threaded into the valve body or sealing head assembly .

Applications:

• Secures internal components within the high-pressure check valve assembly or on/off valve (water switch) of BHDT waterjet intensifier pumps

• Provides axial retention and proper compression for high-pressure dynamic seals, backup rings, and poppet assemblies

• Used during scheduled preventive maintenance, major pump overhauls, or when external water leakage is detected from the valve area

• Suitable for ultra-high pressure waterjet systems operating at 60,000–94,000 PSI (approximately 4,137–6,480 bar)

Features:

• High-Strength Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Threads: Ensures smooth engagement with the valve body and consistent torque application for proper seal compression

• Wrench Flats or Hex Profile: Machined flats allow reliable torquing with standard wrenches during assembly and maintenance

• Critical Retaining Function: Secures internal sealing components, maintaining proper alignment and preload for leak-free check valve operation

• Semi-Wear Component: Under normal operating conditions, the gland nut itself is not a direct wear part, though threads may degrade over time with repeated installation cycles

Maintenance:

Failure Diagnosis (When to Inspect or Replace):

• External Water Leakage: Visible water weeping from the gland nut area or valve body indicates the nut may be loose or the sealing stack is compromised

• Thread Damage: Stripped, galled, or corroded threads prevent proper tightening and must be replaced immediately

• Difficult Assembly: If the gland nut requires excessive force or feels gritty during threading, threads may be damaged

• Visible Cracks or Deformation: Any cracking or distortion of the stainless steel nut warrants immediate replacement

• Loose Connection: If the nut becomes loose during operation due to vibration, inspect threads for wear

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system (high-pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures

• Two-Wrench Method (Critical): Always use two appropriately sized wrenches — one to counter-hold the valve body and one to turn the gland nut — to avoid twisting stress on the assembly

• Thread Inspection: Before reassembly, carefully inspect the gland nut's internal threads for wear, galling, corrosion, or damage. Clean threads thoroughly

• Torque Compliance: Tighten the gland nut to the specific torque value listed in the equipment service manual using a calibrated torque wrench. For 1/4 inch high-pressure connections, typical torque is approximately 34 N·m

• Thread Lubrication: Apply a thin, even layer of high-pressure anti-seize lubricant ("Blue Goop" or "Silver Grade") to the threads during reassembly to prevent galling and ensure accurate torque application

• Replace if Damaged: Replace the gland nut immediately if threads are damaged, cracks are visible, the nut shows signs of deformation, or persistent leakage occurs despite correct installation

• Seal Replacement: When reinstalling the gland nut, always replace associated O-rings, backup rings, and seal assemblies to ensure leak-free operation

• Proper Seating: Ensure the gland nut is fully seated and the internal components are correctly aligned before applying final torque

Cross-Reference Information:

• BHDT #: VDS095405256

• Also known as: Gland Nut, HP Gland Nut, Retaining Nut for BHDT 95 Series intensifier pumps

• Compatible with BHDT high-pressure intensifier systems

• Rated Pressure: 60,000–94,000 PSI (4,137–6,480 bar)
