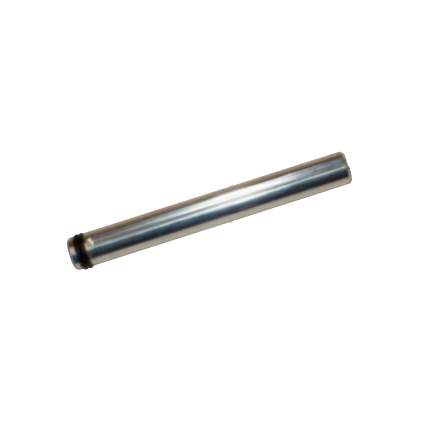

Product Name: Shift Pin Tool (Part No. 20458932)

Description:
The Shift Pin Tool (20458932) is a specialized service tool used for the maintenance and repair of intensifier pumps in waterjet cutting systems. It is specifically designed to safely and accurately remove the shift pin within the hydraulic manifold or directional valve assembly. This component is engineered to interface with the tight internal tolerances of the pump manifold, allowing technicians to extract the pin without damaging the surrounding threads or valve body.

Applications:

• Used during the disassembly and reassembly of the waterjet intensifier pump manifold.

• Facilitates the removal of the shift pin from the directional control valve housing.

• Essential for major pump overhauls, seal replacements, and troubleshooting shifting failures.

Features:

• Application-Specific Design: Precision machined to match the exact dimensions of the shift pin used in standard intensifier pumps, ensuring a secure grip during extraction.

• Durable Construction: Typically manufactured from hardened steel to withstand the force required to remove lodged pins without bending or breaking.

• Damage Prevention: Engineered to prevent scoring of the manifold bore or damage to the pin’s mating surfaces, which is critical for maintaining a leak-free seal when reinstalled.

Maintenance:

• Cleaning: Wipe the tool clean of grease and metal debris immediately after use.

• Storage: Store in a clean, dry protective case to prevent corrosion or edge damage.

• Inspection: Before use, check for burrs or signs of wear that could prevent the tool from seating properly.

• Full Depressurization: Always fully depressurize the waterjet system (hydraulic and high-pressure water circuits) and follow lockout/tagout procedures before using this tool.
