English Translation of Title:

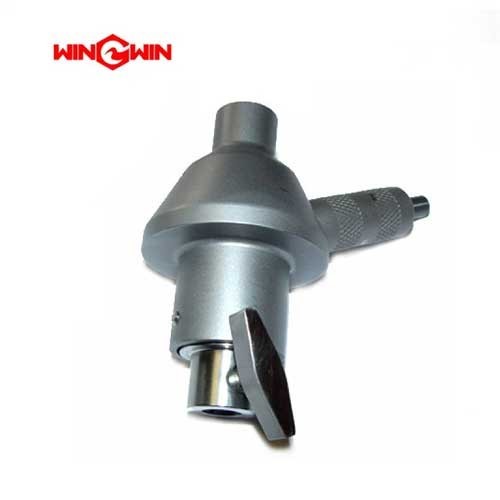

Autoline™ II Nozzle Assembly – .043 Wear Insert for Water Jet Cutting Machine Parts, Model No. 20454108-AutolineTM-II-Nozzle-Assembly-043-Wear-Insert.953.3-1

Introduction, Application, Features, and Maintenance:

This component is a wear insert specifically designed for the Autoline™ II nozzle assembly in water jet cutting systems. It is a precision‑machined component that protects the nozzle body from abrasive wear caused by the high‑velocity abrasive slurry passing through the cutting head.

Application:
Used in the Autoline™ II abrasive nozzle assembly of water jet cutting machines. The wear insert is positioned within the nozzle body to absorb the erosive forces of the abrasive jet, extending the service life of the nozzle assembly and maintaining cutting accuracy.

Features:

• Designed specifically for .043-inch bore size in Autoline™ II nozzle assemblies.

• Manufactured from ultra‑hard, wear‑resistant material (typically tungsten carbide or ceramic) to withstand abrasive erosion.

• Protects the nozzle body from premature wear, reducing maintenance costs.

• Precision‑machined internal bore ensures consistent jet coherence and cutting performance.

• Easy to replace as a consumable wear component.

• Directly influences cutting accuracy, speed, and nozzle longevity.

Maintenance:

• Regularly inspect the wear insert for signs of bore enlargement, erosion, cracks, or chipping.

• Monitor cutting performance; reduced speed, wider kerf, or rougher edges indicate insert wear.

• Replace the wear insert immediately when bore wear exceeds tolerance or when cut quality degrades.

• Handle carefully to avoid damaging the hard, brittle material.

• Clean the nozzle assembly thoroughly before installing a new insert.

• Follow the manufacturer’s recommended replacement intervals based on operating hours.
