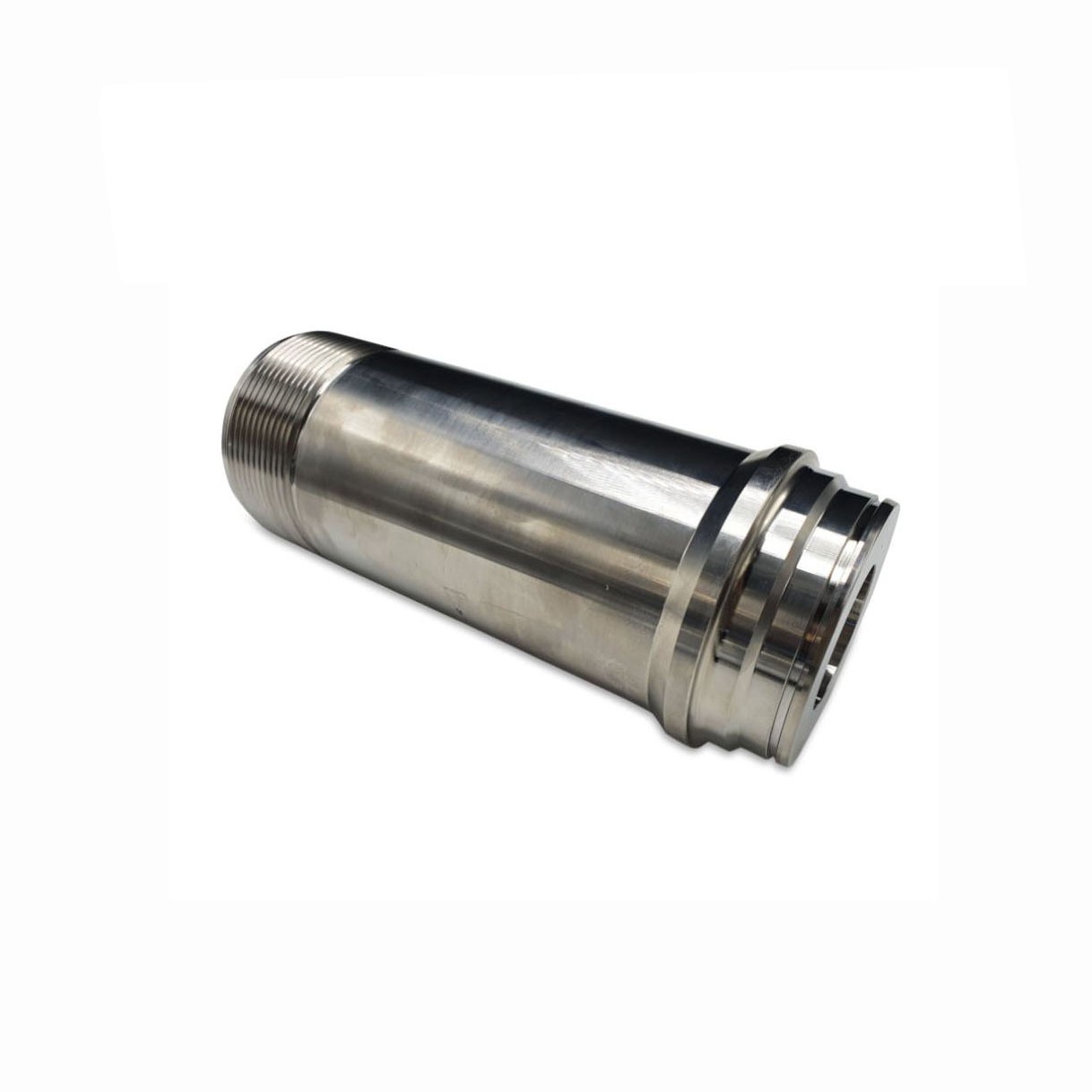

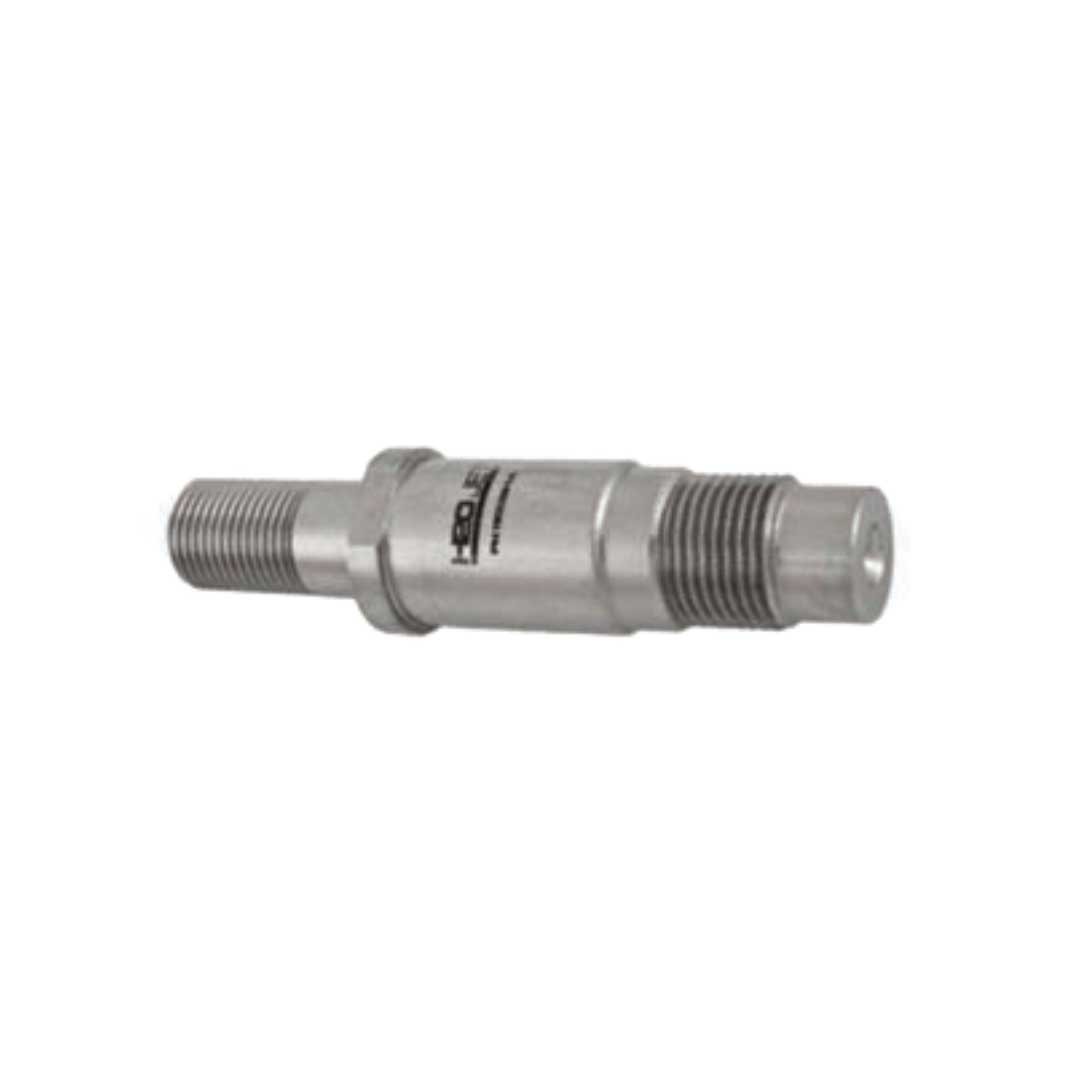

Product Name: HP Cylinder, Threaded Version for BFT Intensifier (P/N 5200515)

Description:
This is a precision-manufactured High-Pressure (HP) Cylinder in a threaded version for BFT-style waterjet intensifier pump assemblies . It serves as the central pressure vessel in the waterjet pump where water is compressed to ultra-high pressures (typically up to 60,000 PSI or higher) to generate the cutting stream.

This critical component is designed with a threaded interface for secure installation into the pump stack. It houses the reciprocating plunger and high-pressure dynamic seals. The cylinder is manufactured from high-strength, corrosion-resistant material to withstand extreme cyclic pressure loads and maintain the precise internal bore geometry required for proper sealing and long service life. When the cylinder bore becomes worn, scored, or pitted, this part replaces the damaged component to restore pump integrity .

Applications:

• Primary pressure containment vessel in BFT-type waterjet intensifier pumps

• Houses the reciprocating plunger and high-pressure seal stack

• Used during major pump overhauls, seal replacements, or when cylinder bore damage is detected

• Suitable for demanding waterjet cutting applications in metal fabrication, stone processing, and industrial manufacturing

• Compatible with BFT Semperdur and other standard waterjet intensifiers

Features:

• Threaded Cylinder Design: Features precision-machined threads for secure, vibration-resistant installation into the pump stack

• High-Strength Stainless Steel Construction: Manufactured from high-grade stainless steel for exceptional corrosion resistance and durability under extreme pressure cycling

• Precision-Honed Internal Bore: The inner diameter is finished to a high-quality surface to ensure proper seal performance and prolonged service life

• Critical Pressure Vessel: Directly impacts pump performance; a worn bore leads to pressure loss, seal failure, and reduced cutting efficiency

• Cross-Compatibility: Interchangeable with OEM part numbers MJ0040313 and HD400147

Maintenance:

When to Replace (Failure Diagnosis):

• Visible Internal Bore Damage: Inspect the cylinder bore each time high-pressure seals are replaced. If scoring, pitting, or out-of-round wear is visible, the cylinder must be replaced. A damaged bore will rapidly destroy new seals.

• External Water Leakage: Water weeping from the cylinder area indicates internal seal failure; the cylinder should be inspected for bore damage during seal replacement

• Pressure Drop: Inability to maintain rated cutting pressure may indicate cylinder bore wear allowing water bypass

• Overheating Cylinder: The HP cylinder may feel warmer than normal during operation if internal seals are leaking or the bore is damaged, causing excessive friction

• Scheduled Replacement: Following manufacturers' general guidelines, high-pressure components may require replacement after extensive service hours to prevent unplanned downtime

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system, shut off the high-pressure water and hydraulic circuits, and follow lockout/tagout procedures

• Proper Handling: The HP cylinder is heavy; support its weight during removal and installation to prevent damage to the plunger or injury to personnel

• Bore Polish (Minor Issues): If minor surface imperfections are present, polish the internal diameter with 600-grit wet/dry sandpaper using a circumferential wiping motion only. Do not polish along the cylinder length, as this may damage the bore surface

• Thread Inspection: Inspect cylinder threads for signs of wear, galling, or damage. If galling occurs, remove the cylinder, inspect mating surfaces, clean thoroughly, lubricate, and reinstall

• Torque Compliance: Tighten the HP cylinder hand-tight using the appropriate cylinder wrench, then tap the wrench with the palm of your hand to achieve final tightening

• Lubrication: Apply anti-seize compound to threads and shoulder guides before installation to prevent galling and facilitate future removal

• Use Proper Tools: During seal removal, use specified seal removal tools to avoid scratching the cylinder bore

• Associated Seal Replacement: When replacing the HP cylinder, always install a complete new high-pressure seal kit (including dynamic seals, backup rings, and O-rings) to ensure optimal performance

• Cross-Reference Part Numbers: Interchangeable with OEM numbers MJ0040313 and HD400147
