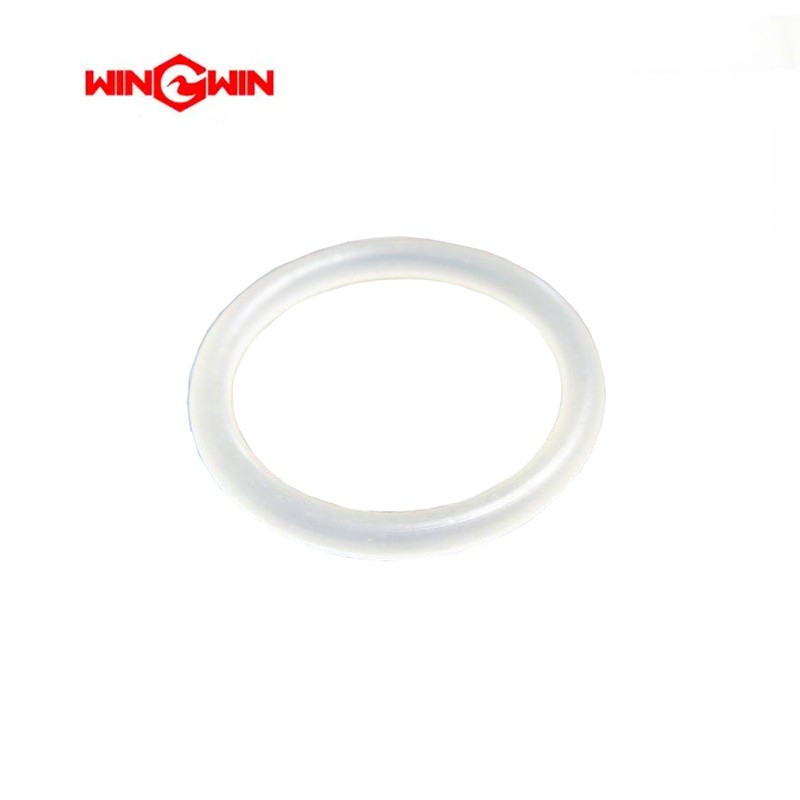

Product Name: Autoline™ Abrasive Nozzle Assembly O-Ring, .75 x .63 x .06 (Part No. 05092887)

Description:
This component is an O-ring seal specifically designed for use in the Autoline™ series abrasive waterjet cutting head assembly . It is a critical sealing component that prevents high-pressure water and abrasive leakage between the stationary and moving parts within the cutting head .

The "O-Ring, .75 x .63 x .06" designation indicates its nominal dimensions: an inner diameter (ID) of .75 inches, an outer diameter (OD) of .63 inches, and a cross-section (width) of .06 inches. This O-ring is specifically manufactured from polyurethane (PU) material with a 70 Durometer hardness rating, chosen for its excellent wear resistance and durability in the abrasive waterjet environment .

According to the official parts diagram for the Autoline™ Abrasive Nozzle Assembly (Table 12-45), this O-ring is listed as Item 8 and is used in a quantity of 1 per assembly . It is used in the nozzle body (KMT Part No. 05073820) . Cross-reference part numbers for this O-ring include WK000040 and 0560996529 .

Applications:

Provides a high-pressure seal for the nozzle cap and nozzle body interface within Autoline™ series cutting head assemblies .
Prevents high-pressure water and abrasive leakage between nozzle components during the cutting process .
Used in Autoline™ I cutting head assemblies .
Suitable for 60,000-94,000 PSI (approximately 4,137-6,480 bar) ultra-high pressure waterjet systems .

Features:

Polyurethane Construction: Provides exceptional wear resistance and durability in abrasive waterjet environments .
70 Durometer Hardness: Offers balanced sealing properties and resistance to extrusion under high pressure .
Standard Dimensions: .75" ID x .63" OD x .06" cross-section for precise fit in designated groove .
Critical Consumable Component: Designed for periodic replacement during nozzle maintenance to ensure leak-free operation .
Autoline™ Compatibility: Specifically designed for Autoline™ series cutting heads, ensuring seamless integration and optimal performance .
Direct OEM Replacement: Interchangeable with KMT #05092887, WSI #AB05092887, and other industry part numbers .

Maintenance:

Failure Diagnosis (When to Replace):

External Water or Abrasive Leakage: Visible water weeping or garnet dust escaping from the nozzle assembly indicates O-ring failure requiring immediate replacement .
Pressure Drop: Inability to maintain rated cutting pressure may indicate seal failure .
Visible Damage During Disassembly: Inspect the O-ring for nicks, cuts, flattening (compression set), hardening, or cracking. Any visible damage warrants replacement .
Scheduled Preventive Maintenance: Replace this O-ring during scheduled nozzle maintenance or whenever the nozzle assembly is disassembled .

Inspection and Replacement Guidelines:

Single-Use Component: The O-ring is a consumable sealing element. Always replace it with a new one whenever the nozzle assembly is disassembled. Do not reuse old O-rings .
Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures .
Clean Installation: Thoroughly clean the O-ring groove and mating surfaces with a soft, lint-free cloth. Remove all debris, old seal residue, and abrasive particles .
Groove Inspection: Inspect the seal groove for nicks, burrs, or damage that could cut or abrade the new seal.
Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease or O-ring lubricant (silicone-based) to the O-ring during installation to prevent pinching, rolling, or tearing . Do not use petroleum-based lubricants as they can degrade the O-ring material .
Proper Seating: Ensure the O-ring is not twisted and is fully seated in its groove before reassembling mating components .
Torque Compliance: When reassembling the nozzle assembly, tighten retaining components to the specific torque values listed in the equipment service manual .
Storage: Store spare O-rings in a cool, dry environment away from direct sunlight, ozone sources, and chemicals to prevent premature aging .
Component Relationships: In the Autoline™ assembly, this O-ring (Item 8) works in conjunction with other sealing components including O-Rings 05081518 (Item 6) and 05104930 (Item 7) .
