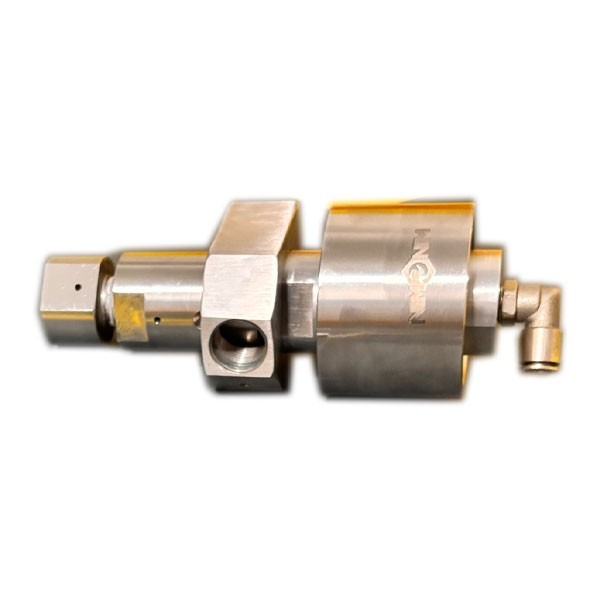

Product Name: Release Valve / Hydraulic Poppet Relief Valve (Part No. WJ055020/591)

Description:
The Release Valve (WJ055020/591) is a high-pressure hydraulic poppet relief valve designed specifically for BHDT and H2O Jet waterjet intensifier pump systems . As a critical safety and control component, this normally closed valve is installed in the hydraulic manifold to protect the system from dangerous over-pressure conditions .

The valve operates on a poppet-style design: when hydraulic pressure exceeds the preset limit (typically set for the specific system operating pressure), the poppet lifts off its seat, allowing high-pressure oil to bypass back to the tank. This immediate pressure relief action prevents catastrophic damage to the intensifier pump, high-pressure seals, cylinders, and other hydraulic components .

This particular release valve is an OEM equivalent component manufactured to BHDT/H2O Jet specifications. It is compatible with standard high-pressure waterjet intensifier systems operating at up to 60,000-94,000 PSI (approximately 4,137-6,480 bar) . The valve is also cross-referenced in some catalogs under related part numbers for BFT systems .

Applications:

• Provides primary over-pressure protection for the hydraulic circuit in BHDT waterjet intensifier pumps

• Mounted directly on the hydraulic manifold block or valve stack

• Automatically diverts hydraulic fluid back to the reservoir when system pressure exceeds the set limit

• Protects intensifier seals, high-pressure cylinders, and cutting head components from pressure spikes

• Used during scheduled system maintenance or when troubleshooting pressure-related issues

Features:

• Poppet-Style Relief Valve Design: High-flow poppet configuration provides fast response to pressure spikes

• Normally Closed (NC) Operation: Valve remains closed under normal operating pressure; opens only when preset pressure limit is exceeded

• High-Pressure Rating: Engineered for continuous operation at 60,000-94,000 PSI (approximately 4,137-6,480 bar)

• Direct OEM Replacement: Interchangeable with BHDT/H2O Jet manufacturer specifications

• Critical Safety Component: Essential for preventing catastrophic pump failure and potential operator injury from high-pressure fluid injection

• Pre-set Calibration: Factory-calibrated for specific system operating pressure

Maintenance:

Failure Diagnosis (When to Replace/Service):

• Inability to Build Pressure: If the hydraulic system fails to reach operating pressure, a release valve stuck in the open position may be bypassing oil directly to the tank

• System Pressure Spikes: If cutting pressure exceeds normal operating range, the valve may be stuck closed or set incorrectly

• Overheating Hydraulic System: A valve that "cracks" (opens slightly) below its set point will cause continuous oil bypass, generating excessive heat

• External Leakage: Visible oil weeping from the valve body or adjustment stem indicates seal failure requiring replacement

• Unusual Noise (Valve Chatter): Squealing or chattering from the valve indicates a worn or contaminated valve poppet/seat

• Scheduled Preventive Maintenance: It is standard practice to inspect relief valves during major pump overhauls (typically every 4,500-5,000 operating hours) and replace if wear or damage is detected

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize both the high-pressure water system and the hydraulic system, and follow lockout/tagout procedures. Severe injury can result if the system is not properly locked out .

• Do Not Adjust Without Proper Tools: The release valve is a precision safety device. Do not attempt to adjust the pressure setting without a calibrated hydraulic pressure gauge connected to the manifold. Incorrect adjustment can lead to dangerous over-pressure conditions or premature relief.

• Clean Installation: Perform the rebuild in a designated clean area. Contamination (dirt, metal particles) is a primary cause of valve sticking and premature failure .

• Inspect for Contamination: If the valve is sticking or noisy, debris may be lodged in the poppet seat. Thoroughly clean the valve and the manifold port. If contamination is found, the entire hydraulic system should be inspected, and the oil filtered or changed.

• Replace as a Complete Assembly: Due to the precision fit of the poppet and seat, a worn or damaged relief valve should be replaced as a complete unit rather than being rebuilt in the field to ensure safety and reliability.

• Torque Compliance: When reinstalling, tighten the valve into the manifold block to the specific torque value listed in the equipment service manual to prevent thread damage or leaks.

• Lubrication: Apply a thin layer of high-pressure thread lubricant to the threads during installation to prevent galling.

Cross-Reference Information:

• BHDT/H2O Jet #: WJ055020/591

• Also known as: Hydraulic Poppet Relief Valve, System Pressure Relief Valve, Over-Pressure Protection Valve

• Compatible with BHDT, H2O Jet, and standard waterjet intensifier systems
