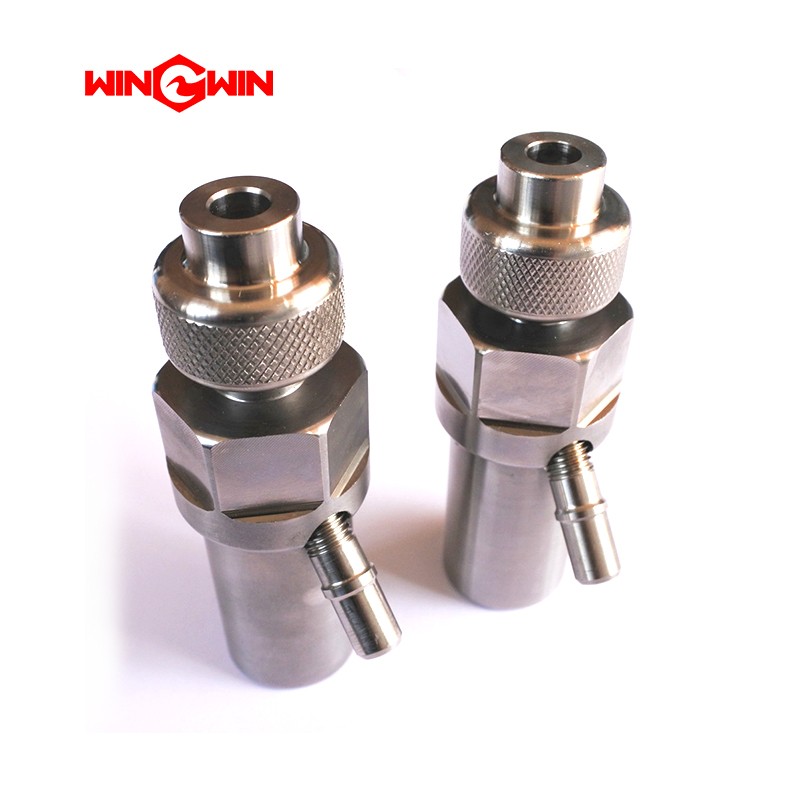

Product Name: APW Abrasive Body (Mixing Chamber)

Description:
This component is the abrasive body, also known as the mixing chamber or abrasive mixing body, specifically designed for APW series abrasive waterjet cutting systems . It is a precision-machined component that serves as the central housing where the ultra-high-pressure waterjet and abrasive particles (typically garnet) are combined to form the cutting stream .

In operation, high-pressure water (up to 60,000 PSI) passes through a small orifice to form a high-speed jet. As this jet enters the abrasive body, it creates a vacuum (Venturi effect) that draws dry abrasive particles in through a side port. The abrasive and water mix within this chamber before being accelerated through the focusing tube to form a coherent cutting stream capable of cutting hard materials such as metal, stone, and composites .

Applications:

• Used exclusively in APW abrasive waterjet cutting heads for cutting hard materials including stainless steel, aluminum, copper, stone, glass, ceramics, and composites

• Installed between the water nozzle (orifice) and the focusing tube (mixing tube) in the cutting head assembly

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar)

• Compatible with APW series waterjet cutting systems, including APW-2010 and other APW models

Features:

• Venturi Effect Design: Precision-engineered internal geometry creates a vacuum that ensures smooth suction and mixing of dry abrasive without requiring an external pump

• Precision-Machined Internal Bore: Manufactured to tight tolerances for perfect coaxial alignment between the water orifice and focusing tube, which is critical for jet coherence and cutting accuracy

• Wear-Resistant Construction: Typically constructed from hardened stainless steel or wear-resistant alloy to withstand the erosive nature of high-velocity abrasive flow

• Side Abrasive Inlet Port: Features a specialized side port designed to introduce abrasive particles at an optimized angle into the waterjet stream

• 60,000 PSI Rating: Engineered for continuous operation at ultra-high pressure

• APW OEM Compatibility: Direct replacement component for APW series waterjet cutting systems

Maintenance:

• Erosion Inspection: Regularly inspect the internal bore and walls for signs of erosion, wear grooves, or diameter enlargement caused by abrasive particles. Excessive wear will degrade mixing efficiency and cut quality

• Debris Cleaning: During cutting head maintenance, remove the abrasive body and thoroughly clean any compacted abrasive debris or residual particles to prevent blockages

• Coaxial Alignment Verification: Ensure the water nozzle, abrasive body, and focusing tube are perfectly aligned during reassembly. Misalignment leads to rapid focusing tube wear and poor cut quality

• Seal Replacement: Always replace associated O-rings and high-pressure seals when reassembling the abrasive body to prevent high-pressure water leaks

• Water Quality Impact: Poor water quality (contaminants, hardness, inadequate filtration) accelerates internal wear. Regularly replace water filtration equipment to protect the abrasive body

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before disassembling or servicing the abrasive body

• Replacement Criteria: Replace the abrasive body if internal bore erosion exceeds manufacturer-specified limits, if cracks are detected, or if sealing surfaces are compromised
