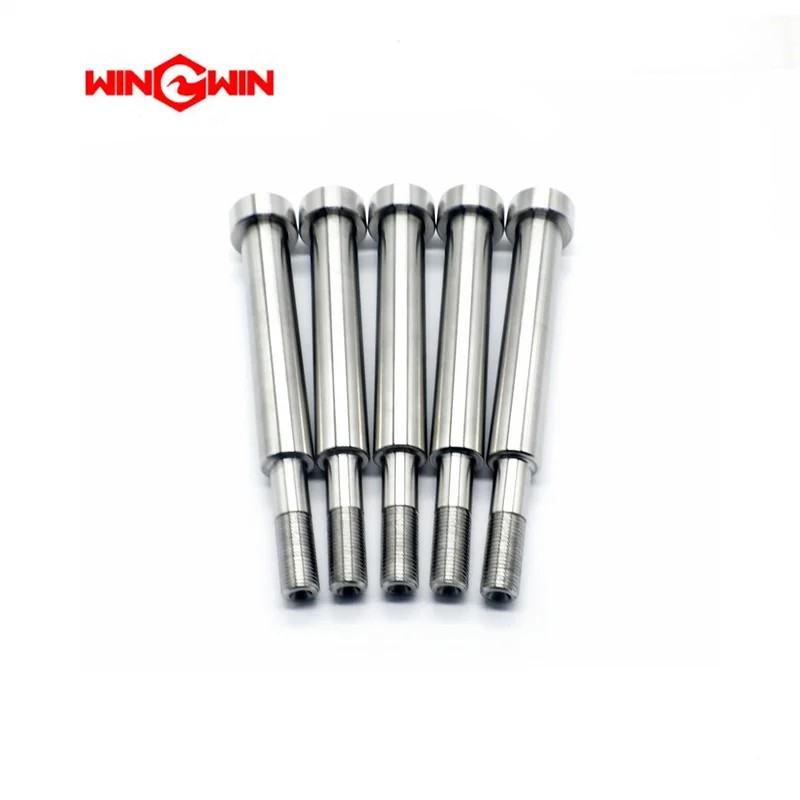

Product Name: High-Pressure Nozzle Tube (Focusing Tube) – Part No. 05106224

Description:
This component is a high-pressure nozzle tube, also known as a focusing tube or mixing tube, specifically designed for abrasive waterjet cutting systems . According to the manufacturer's nozzle tube specification table (Table 12-44), this part number has two documented length variants:

Dimensional Specifications (Variant 1):

• Nominal Length: 8.45 inches (approximately 214.63 mm)

• Actual Length: 8.10 inches (approximately 205.74 mm)

Dimensional Specifications (Variant 2):

• Nominal Length: 10.50 inches (approximately 266.70 mm)

• Actual Length: 10.15 inches (approximately 257.81 mm)

• Inner Diameter (ID): Not specified in the part number; refer to the equipment manual for the matching water orifice diameter

• Pressure Rating: 60,000-94,000 PSI (approximately 4,137-6,480 bar)

• Connection Type: Standard nozzle nut connection for compatibility with major cutting head assemblies

The nozzle tube is a precision-machined cylindrical consumable component manufactured from ultra-hard, wear-resistant tungsten carbide material . It is installed in the cutting head assembly immediately downstream of the mixing chamber and water orifice. Inside the tube, the high-pressure waterjet and abrasive particles are accelerated and focused into a coherent cutting stream . This component is a high-wear consumable part that requires periodic replacement as its inner bore gradually erodes over time, directly affecting cut quality and accuracy .

Applications:

• Serves as the final focusing element for the abrasive waterjet, directing the cutting stream onto the workpiece

• Defines the kerf width, cutting precision, and edge quality for the waterjet system

• Installed in the cutting head assembly of compatible waterjet systems

• Used during scheduled preventive maintenance, performance restoration, or when cutting quality visibly degrades

Features:

• Tungsten Carbide Construction: Manufactured from premium-grade tungsten carbide, providing exceptional hardness and wear resistance to withstand high-velocity abrasive flow

• Precision Inner Diameter (ID): Manufactured to exacting tolerances to ensure a coherent, straight jet for clean, narrow kerf cuts

• Multiple Length Options: Available in both 8.45″ and 10.50″ nominal lengths to suit different cutting head configurations

• High-Pressure Rating: Engineered for continuous operation at 60,000-94,000 PSI (4,137-6,480 bar)

• Critical Consumable Component: As a high-wear part, requires periodic replacement; lifespan depends on abrasive type, flow rate, operating pressure, and water quality

Maintenance:

Failure Diagnosis (When to Replace):

• Reduced Cutting Performance: Noticeable decrease in cutting speed, rougher edge finish, or increased kerf width indicates bore wear

• Visible Bore Damage: Inspect the exit orifice for ovality, flaring, or visible bore enlargement using a magnifying glass

• Asymmetric Wear: Uneven wear on the tube outlet circumference indicates misalignment between the water orifice and focusing tube

• Clogged Tube: Complete blockage results from wet or contaminated garnet abrasive

• Scheduled Preventive Replacement: Replace based on manufacturer recommendations or when cut quality degrades

Inspection and Replacement Guidelines:

• Rotation Practice (Critical): Rotate the focusing tube regularly (e.g., every 10-20 operating hours) to distribute wear evenly around the circumference and significantly extend service life

• Orifice-to-Tube Ratio: For optimal cutting performance and extended mixing tube life, maintain the manufacturer's recommended diameter ratio between the water orifice and focusing tube

• Alignment Check: Ensure perfect coaxial alignment between the water orifice and focusing tube. Misalignment causes asymmetric bore wear, poor cut quality, and significantly reduced tube life

• Water Quality Impact: Poor water quality with contaminants accelerates tube wear; maintain proper water filtration to maximize component life

• Abrasive Quality: Use clean, dry garnet abrasive; wet or contaminated abrasive causes clogging and accelerated wear

• Handling Caution: Tungsten carbide is extremely hard but brittle; handle carefully to avoid chipping, cracking, or impact damage during installation

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system, shut off the high-pressure water supply, and follow lockout/tagout procedures

• Check Connections: Before operation, ensure all connectors (high-pressure water pipe, abrasive hose, rotary connectors) are tightly clamped; apply thread sealant to connection threads to prevent loosening and thread damage

• Torque Compliance: When reinstalling the retaining nut, tighten to the specific torque value listed in the equipment service manual; over-tightening may crack the tube

• Regular Cleaning: Nozzle tubes should be cleaned regularly to remove surface impurities and particles

Cross-Reference Information:

• OEM Part Number: 05106224

• Table Reference: Table 12-44 Nozzle Tubes

• Nominal Length Variants: 8.45″ (214.63 mm) / 10.50″ (266.70 mm)

• Actual Length Variants: 8.10″ (205.74 mm) / 10.15″ (257.81 mm)

• Pressure Rating: 60,000-94,000 PSI (4,137-6,480 bar)

• Compatible with: Standard waterjet cutting head assemblies
