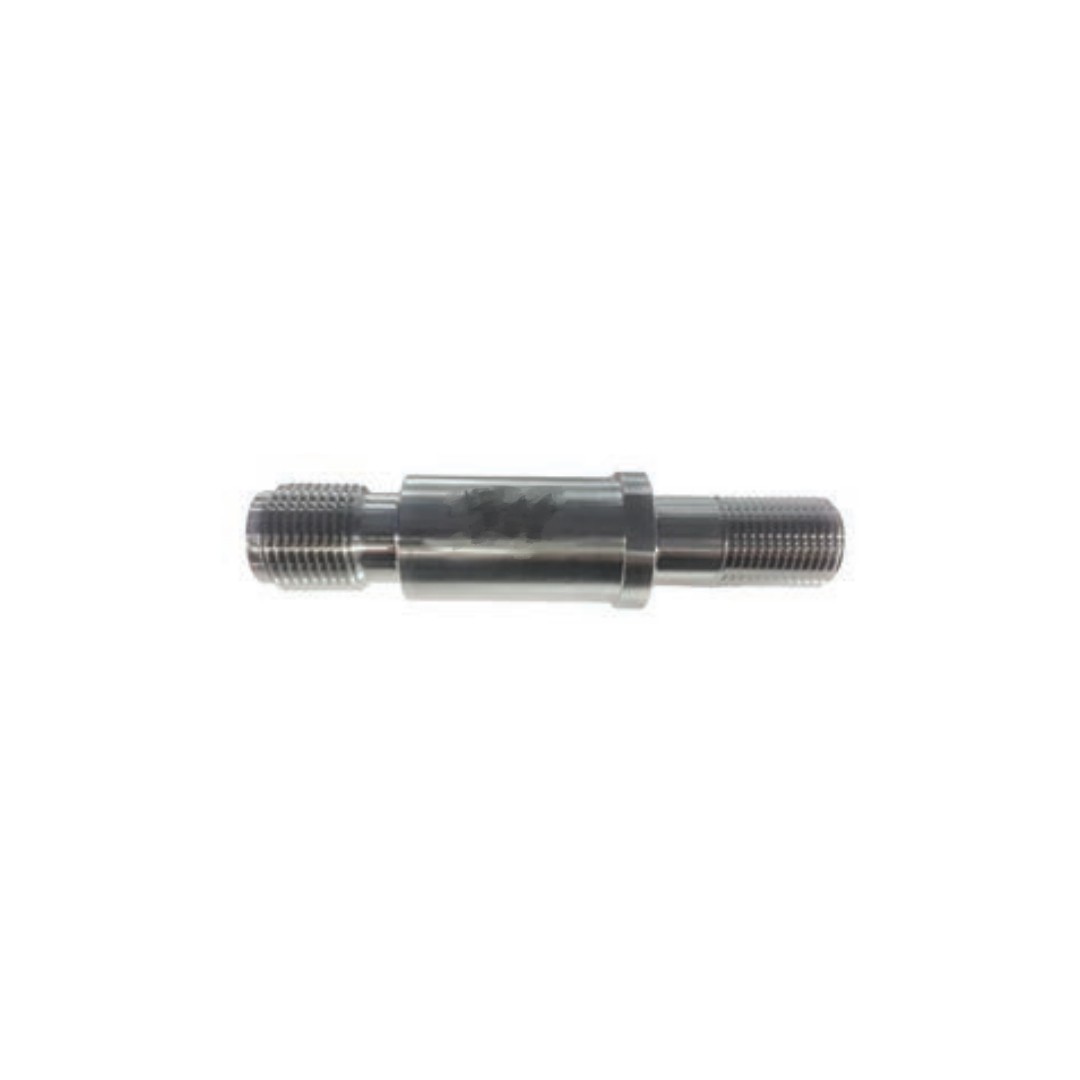

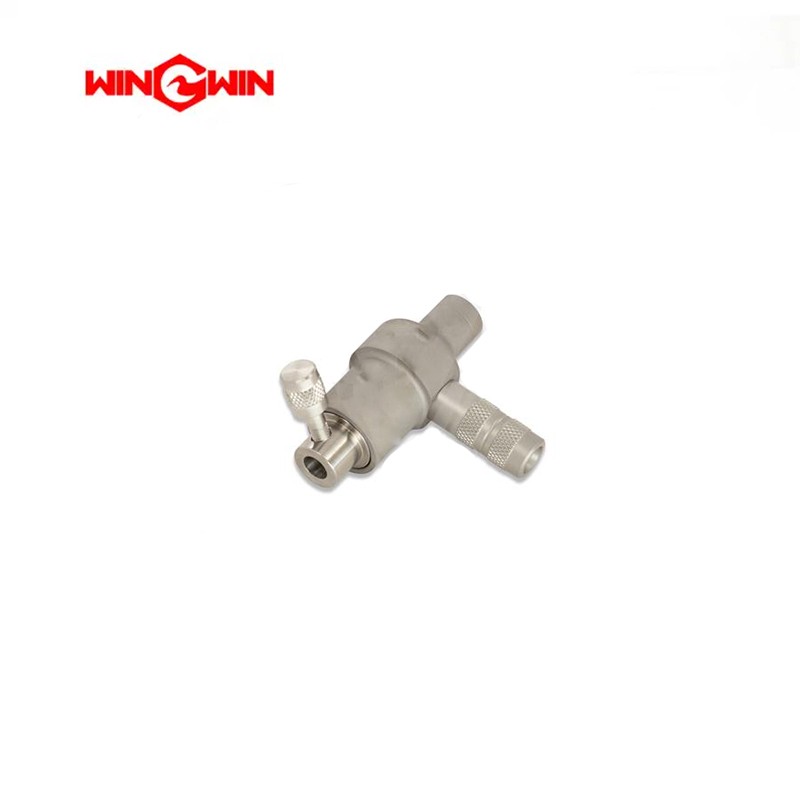

Product Name: Mini Valve Nozzle Body (Part No. 100026-6)

Description:
This component is a nozzle body specifically designed to connect a Mini Valve (on/off valve) to an IDE (Integral Diamond Eductor) style cutting head in a 60,000 PSI (60 KSI) waterjet system . The "Mini Valve" designation indicates a compact valve platform, and this nozzle body serves as the interface adapter that allows the valve to be properly mounted and aligned with the IDE cutting head assembly.

Manufactured to OEM specifications, this nozzle body provides the structural connection and high-pressure water passage between the Mini Valve and the IDE cutting head. This configuration allows the waterjet system to benefit from the compact Mini Valve design while utilizing the advanced IDE cutting head technology .

Applications:

• Adapts Flow / H2O Jet Mini Valve to IDE Style Cutting Head assemblies

• Provides the mechanical and hydraulic interface between the water on/off valve and the cutting head

• Suitable for 60,000 PSI (60 KSI) waterjet cutting systems

• Compatible with H2O Jet Mini Valve systems and IDE style cutting heads

Features:

• 60 KSI Pressure Rating: Engineered for continuous operation at 60,000 PSI (approximately 4,137 bar)

• Precision Stainless Steel Construction: Machined to exact OEM specifications for proper fit and alignment

• Interface Design: Specifically engineered to connect Mini Valve platforms to IDE style cutting heads

• Lightweight: Approximately 0.476 lbs (0.216 kg) for easy handling during maintenance

• OEM Compatibility: Direct replacement for H2O Jet part number 100026-6

• Cross-Reference: Alternate part numbers include WE000242

Maintenance:

Inspection:

• Regularly inspect the nozzle body’s internal bore and sealing surfaces for signs of erosion, pitting, or scoring

• Check all threaded connections and mating surfaces for damage, wear, or corrosion

• Inspect for cracks or deformation, especially after any impact or overtightening events

Cleaning:

• During cutting head or valve maintenance, thoroughly clean the internal bore and sealing surfaces with low-pressure water and a soft cloth

• Remove all debris, mineral deposits, and old seal residue

• Do not use abrasive tools or metal implements that could scratch precision-machined surfaces

Installation Guidelines:

• Full Depressurization (Critical): Always fully depressurize the waterjet system (high-pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures before disassembling or servicing the nozzle body

• Thread Lubrication: Apply a thin, even layer of high-pressure anti-seize lubricant to threads during reassembly to prevent galling and ensure accurate torque application

• Torque Compliance: Tighten all retaining nuts and connections to the specific torque values listed in the equipment service manual

• Seal Replacement: Always replace O-rings and seals when reinstalling the nozzle body to ensure leak-free operation

• Replacement Criteria: Replace the nozzle body immediately if cracks, severe internal erosion, thread damage, or compromised sealing surfaces are detected. Do not attempt to repair a cracked or severely worn body
