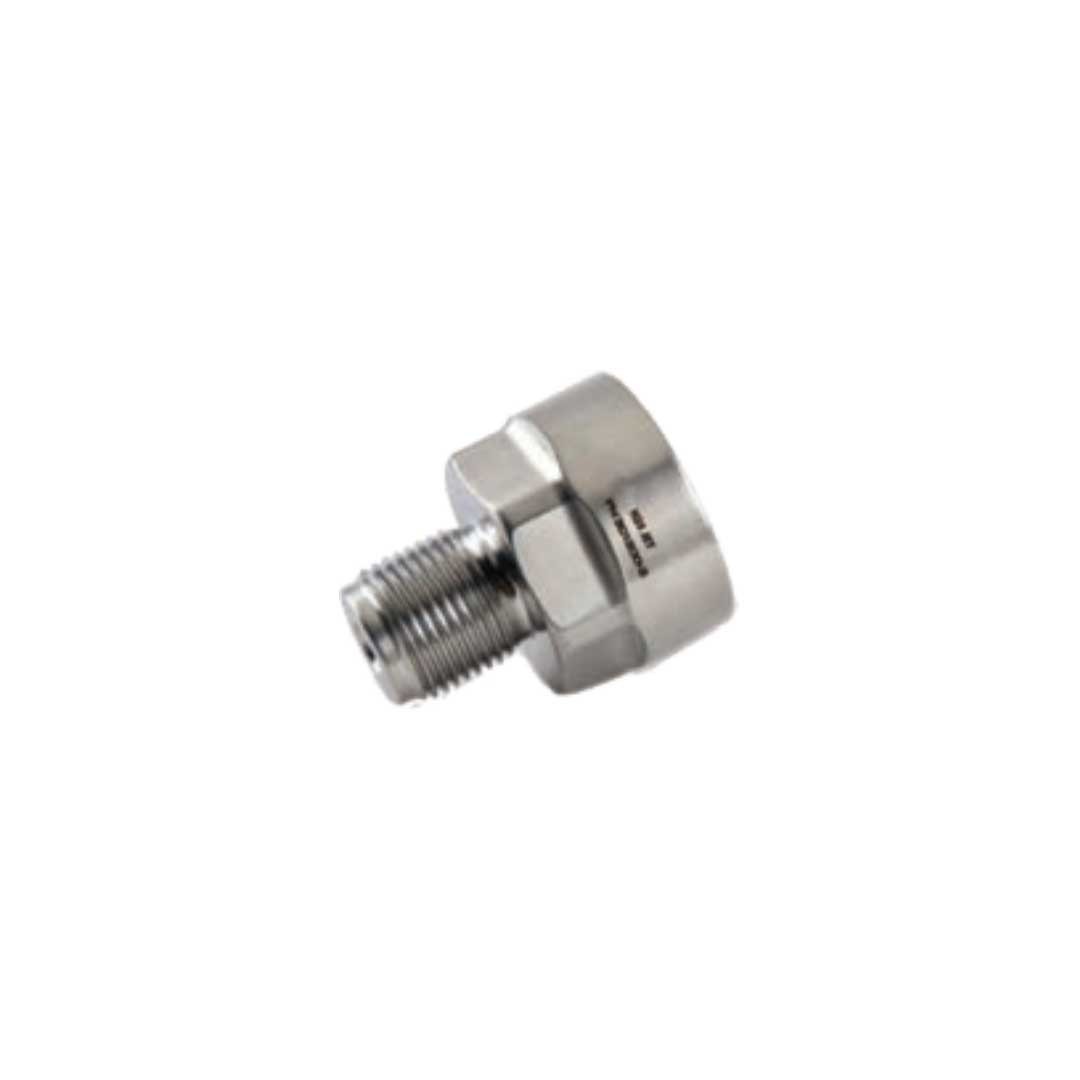

Product Name: Maxjet 5 to IDE III Adapter (Non Tilt‑a‑Jet) – Part No. 301200‑2

Description:
This component is a precision-machined stainless steel adapter specifically designed to mount an Integral Diamond Eductor (IDE) III cutting head onto a waterjet system originally equipped with an OMAX MAXJET 5 series cutting head in a non‑tilt (fixed) configuration . It serves as a mechanical and hydraulic interface, enabling the retrofit of the advanced IDE III platform onto existing MAXJET 5 equipment without replacing the entire Z‑axis motion system.

Unlike its counterpart (301200‑1) which is intended for Tilt‑a‑Jet systems, this adapter is engineered for standard, rigid MAXJET 5 nozzle bodies. It bridges the dimensional and thread differences between the MAXJET 5 fixed interface and the IDE III cutting head body, allowing legacy systems to benefit from the longer‑lasting IDE III technology (integrated diamond orifice and mixing chamber) .

The adapter itself is a non‑wear component and does not have a scheduled replacement interval; however, its precision sealing surfaces must be maintained for leak‑free operation at pressures up to 60,000–90,000 PSI (approximately 4,137–6,480 bar).

Applications:

• Mounting an IDE III cutting head onto a MAXJET 5 fixed (non‑tilt) cutting head assembly

• Retrofitting OMAX MAXJET 5 systems (standard configuration) to accept IDE III components

• Providing a mechanical and hydraulic interface for an upgrade path to IDE III technology

• Suitable for standard 60k–90k waterjet systems

Features:

• Precision Stainless Steel Construction: Ensures perfect coaxial alignment between the retrofitted IDE III cutting head and the existing MAXJET 5 fixed mounting interface

• Non‑Tilt Configuration: Specifically engineered for standard (non‑tilting) MAXJET 5 nozzle bodies

• Non‑Wear Component: The adapter is not a consumable part; under normal use, it provides long service life and can be reused across multiple consumable replacement cycles

• Corrosion‑Resistant: High‑grade stainless steel withstands the harsh waterjet environment

Maintenance:

Inspection:

• Regularly check the adapter‘s mating faces and cone sealing surfaces for nicks, scratches, galling, or erosion. Any damage to these precision surfaces will compromise the high‑pressure seal and cause water leaks

• Inspect the internal and external threads for signs of wear, corrosion, or damage. Damaged threads prevent proper torque application and must be replaced immediately

Cleaning:

• During cutting head maintenance, thoroughly clean all mating surfaces and threads with a soft cloth and low‑pressure water or compatible solvent

• Remove all debris, mineral deposits, and old seal residue

• Do not use abrasive tools that could scratch precision‑machined surfaces

Installation Guidelines:

• Full Depressurization (Critical): Always fully depressurize the waterjet system (high‑pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures before installing or removing the adapter

• Clean Area Maintenance: Perform assembly in a designated clean area to prevent contamination of sealing surfaces with abrasive particles

• Thread Lubrication: Apply a thin, even layer of high‑pressure anti‑seize lubricant to the male threads during reassembly to prevent galling and ensure accurate torque application

• Torque Compliance: Tighten the adapter and associated gland nuts to the specific torque values listed in the equipment service manual using a calibrated torque wrench. Use a second wrench to counter‑hold the adapter body to prevent twisting stress

• Replacement Criteria: Replace the adapter immediately if threads are damaged, sealing surfaces are scored or pitted, cracks are visible, or persistent high‑pressure leakage occurs despite correct installation

Cross‑Reference Information:

• H2O Jet / AccuStream #: 301200‑2

• Compatible with: MAXJET 5 fixed (non‑tilt) cutting head systems

• Also known as: Maxjet 5 to IDE III Adapter (Non Tilt‑a‑Jet)
