HT016018103-Safety-Bolt.1996.3-1

Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

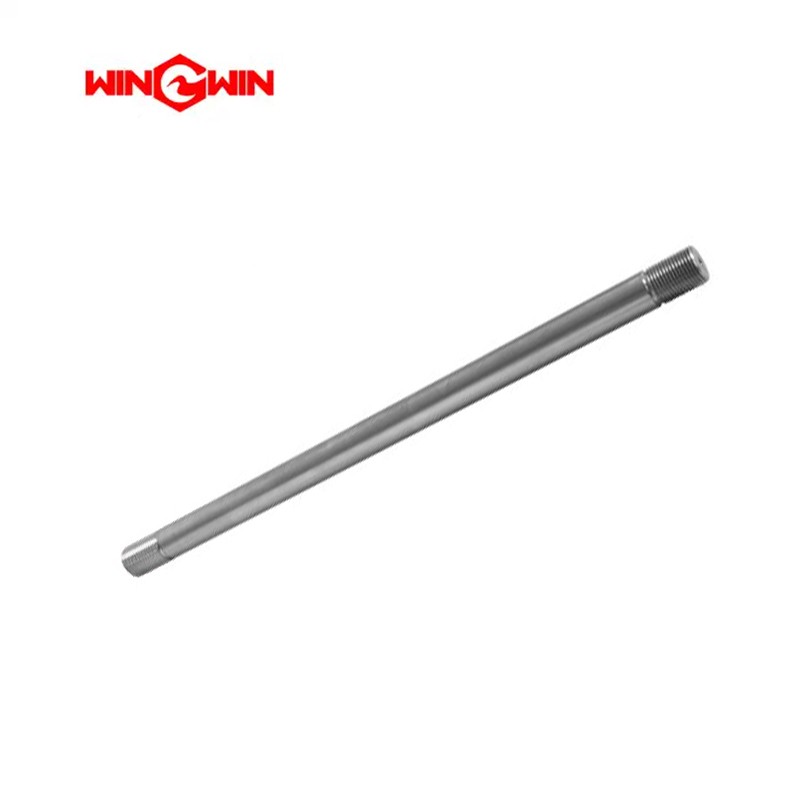

Product Name: Safety Bolt (Part No. HT016018103)

Description:
This component is a sacrificial safety bolt (sometimes referred to as a shear bolt or pressure relief bolt) designed for high-pressure intensifier pumps in waterjet cutting systems. It serves as a critical mechanical failsafe for the hydraulic circuit. Engineered with a precise shear stress rating, the bolt is deliberately designed to rupture in a controlled manner if the hydraulic pressure accidentally exceeds the system's safe operating limit[citation:1].

When an over-pressure event occurs, this bolt breaks to instantly drop the hydraulic pressure, preventing catastrophic failure of expensive components (such as the main pump manifold, cylinders, and high-pressure seals). It is a single-use component that must be replaced after each activation.

Applications:

Installed in the hydraulic manifold as the primary over-pressure protection device[citation:1].
Serves to protect the high-pressure pump, hydraulic cylinders, and intensifier assembly from pressure spikes.
Used during scheduled maintenance and as part of troubleshooting for hydraulic system failures.

Features:

Sacrificial Design: The bolt is the weakest link in the pressure circuit; it breaks to protect the rest of the system[citation:1].
Pre-Calibrated: Precisely machined to fail at a specific pressure threshold (usually slightly above the maximum working pressure of the pump).
Single Use: Must be replaced with a new bolt of exact specifications after it has been triggered; cannot be reused or repaired[citation:1].
Safety Critical: Essential for preventing dangerous high-pressure fluid injection injuries and equipment damage.

Maintenance:

Failure Diagnosis (When to Replace):

Sudden Pressure Drop: The most common sign is an immediate and complete loss of hydraulic pressure while the electric motor is still running.
Audible Indicator: A loud "pop" or snapping sound originating from the hydraulic manifold area.
Visual Inspection: Visible breakage (shearing) of the bolt head or shank.
Root Cause Analysis: The underlying cause of the over-pressure must be identified and rectified before restarting, or the new bolt will break again[citation:1].

Replacement Procedure:

Full Depressurization: Always fully depressurize the waterjet system (both high-pressure water and hydraulic circuits) and follow lockout/tagout procedures before servicing[citation:1].
Single-Use Only: Do not attempt to repair or weld a broken safety bolt. Replace it with a genuine OEM part of the correct pressure rating.
Torque Compliance: Tighten the new bolt to the specific torque value listed in the equipment service manual. Over-tightening can change the shear rating; under-tightening can cause leaks.
Spare Part Stock: Keep a spare safety bolt in stock, as failure can halt production, and having a replacement on hand minimizes downtime[citation:1].
