Product Name: High-Pressure Elbow Fitting for Yongda Waterjet

Description:

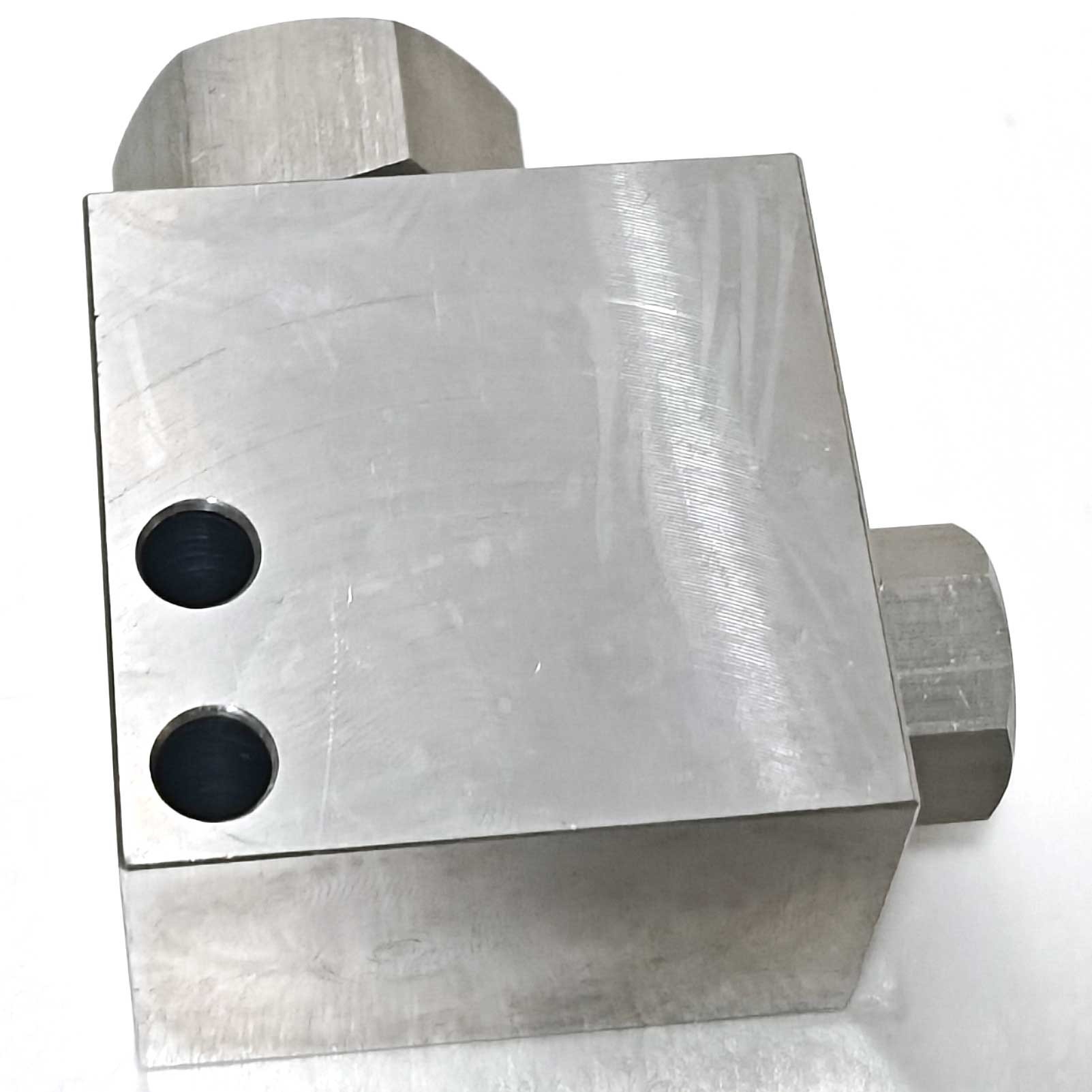

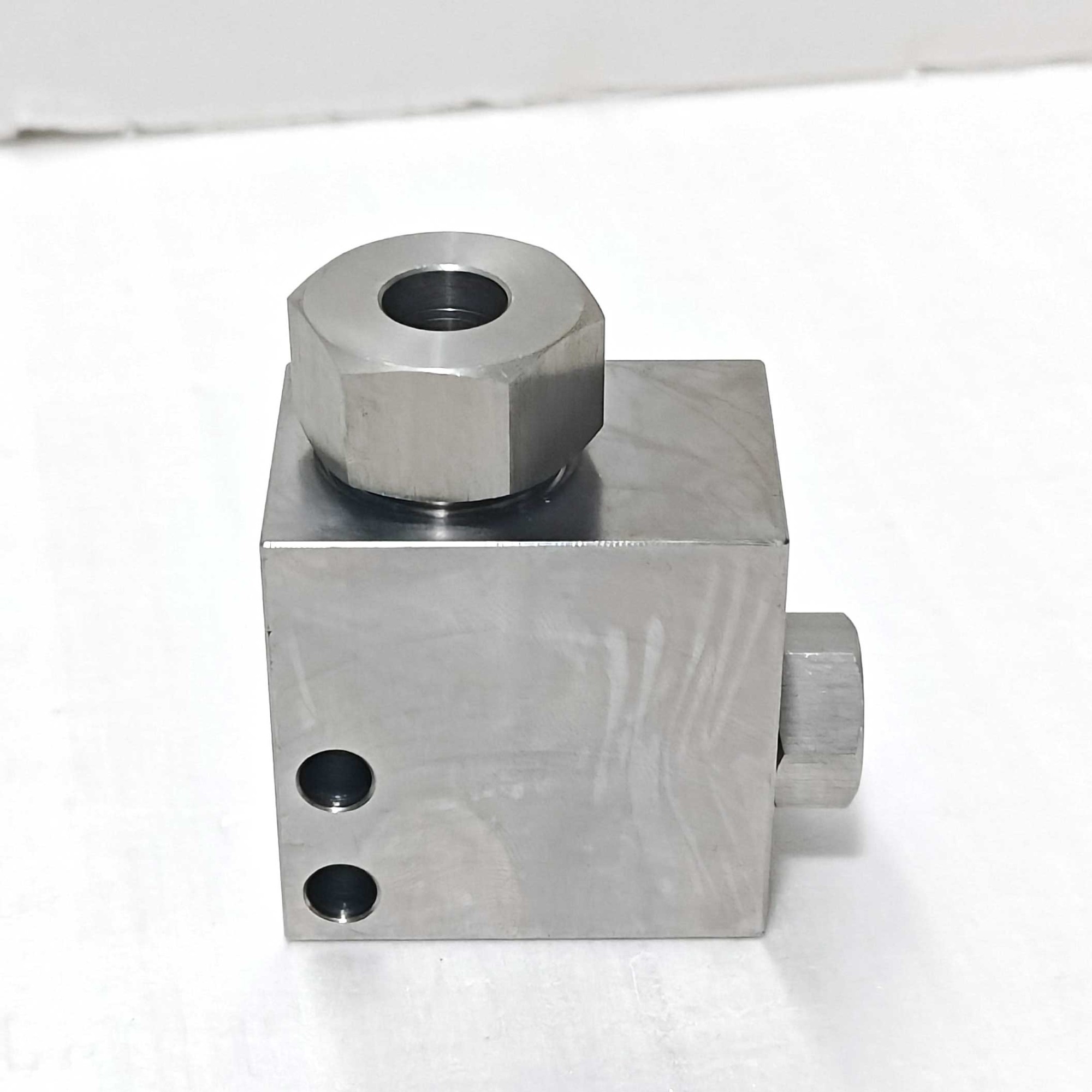

This component is a high-pressure elbow fitting designed for Yongda waterjet cutting systems. It is a precision-machined stainless steel fitting that changes the direction of high-pressure water flow within the system plumbing, typically by 90 degrees. The elbow allows for flexible routing of high-pressure tubing in space-constrained areas, enabling efficient layout of the water supply line between the pump, on/off valve, and cutting head assembly. It is rated for continuous operation at 60,000 PSI (approximately 4,137 bar) and features precision cone sealing surfaces for leak-free metal-to-metal connections.

Applications:

• Changes the direction of high-pressure water flow in system plumbing, typically by 90°

• Connects high-pressure tubing between the intensifier pump, on/off valve, and cutting head

• Enables efficient routing of water lines in compact machine layouts

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar)

Features:

• High-Strength Construction: Machined from corrosion-resistant stainless steel to withstand extreme pressure cycling

• Precision-Machined Sealing Surfaces: Features standard 60-degree cone sealing surfaces for reliable metal-to-metal seals

• Standard Connection Size: Typically available in 1/4 inch high-pressure connection size for compatibility with standard Yongda system plumbing

• Thread Compatibility: Features standard high-pressure threads for secure connection to glands, collars, and tubing assemblies

• 60,000 PSI Rating: Engineered for continuous operation at ultra-high pressure

Maintenance:

• Leak Inspection: Before operation, check both connection points for signs of high-pressure water weepage. If leakage occurs, depressurize immediately and inspect cone sealing surfaces

• Surface Check: Before reinstallation, inspect the elbow for thread galling, cone seat damage, or cracks. Damaged elbows must be replaced to ensure high-pressure integrity

• Thread Care: Apply high-pressure thread lubricant or anti-seize compound to threads during installation to prevent galling and ensure proper torque

• Torque Compliance: Tighten the associated gland nuts to the specific torque value listed in the equipment service manual. Over-tightening can damage cone sealing surfaces

• Use with Standard Components: Install using compatible 60K rated tubing, glands, and collars to maintain rated pressure capacity

• Full Depressurization: Always fully depressurize the waterjet system before disconnecting or servicing the elbow. Follow lockout/tagout procedures

• Replacement Criteria: Replace the elbow if threads are damaged, if cone sealing surfaces are scored or deformed, if cracks are detected, or if internal erosion is excessive
