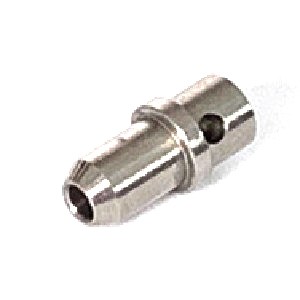

Product Name: High Pressure Poppet / Poppet Check Valve (Part No. 510000383)

Description:
This component is a high pressure poppet, also known as a poppet check valve or outlet poppet, specifically designed for the check valve assembly in waterjet intensifier pumps . It is a precision-machined, stem-type sealing component that serves as the moving element within the high-pressure check valve assembly . The poppet works in conjunction with a valve seat to create a leak-tight, one-way seal, controlling the flow of pressurized water from the intensifier cylinder to the outlet manifold .

Manufactured from high-quality hardened steel, this poppet is designed to withstand the repeated impact against the valve seat and the erosive effects of high-velocity water flow . It is a critical consumable component that directly affects the intensifier's ability to build and maintain cutting pressure. It is rated for continuous operation at 60,000 PSI (approximately 4,137 bar) .

Applications:

• Used as the moving sealing element within the high-pressure check valve assembly of waterjet intensifier pumps

• Works with the valve seat to control the one-way flow of pressurized water

• Suitable for ultra-high pressure waterjet systems operating at 60,000–90,000 PSI (approximately 4,137–6,200 bar)

• Compatible with Dardi waterjet systems and other standard intensifier assemblies

Features:

• Precision-Ground Sealing Surface: Machined to exact specifications for leak-tight shut-off when mated with the corresponding valve seat

• Hardened Steel Construction: Manufactured from wear-resistant, hardened steel to withstand repeated impact and high-velocity water flow

• Critical Consumable Component: The poppet is a high-wear consumable part designed to protect the more expensive valve body from damage

• High-Pressure Rating: Engineered for continuous operation at 60,000–90,000 PSI without deformation or failure

• Lightweight: Approximately 0.004 kg for easy handling during maintenance

Maintenance:

Failure Diagnosis:

• Water Leakage from Cutting Head: If the mixing tube outlet drips water when the water switch is closed, the poppet (valve core) is likely worn and requires immediate replacement

• Pressure Drop: Inability to maintain rated cutting pressure may indicate a worn or pitted poppet sealing surface

• Performance Degradation: Reduced cutting efficiency or inconsistent performance suggests poppet wear

• Identifying Visible Wear: Valve core wear appears as irregular radial grooves on the sealing surface caused by high-speed water flow

Replacement Procedures:

• Critical Replacement Indicator: Water dripping from the mixing tube outlet when the valve is "OFF" means the high pressure poppet must be replaced immediately

• Simultaneous Replacement: When replacing the poppet, always replace the corresponding valve seat simultaneously . Reusing a worn seat with a new poppet will compromise sealing

• Inspection: During valve overhaul, inspect the poppet sealing surface for pitting, erosion, cracking, indentation, or mushrooming. Even minor surface damage warrants replacement

• Clean Installation: Ensure the valve body cavity and sealing surfaces are clean before installing new components. Contamination is a leading cause of premature failure

• Surface Preparation: Clean sealing surfaces thoroughly with a soft cloth and compatible solvent. Remove all debris, old seal residue, and mineral deposits

• Lubrication: Apply a light coating of high-pressure grease to the poppet and seals during installation to prevent dry start-up and ensure proper seating

• Torque Compliance: When reassembling, tighten all retaining components to the specific torque values listed in the equipment service manual

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before replacing the poppet

• Water Quality Impact: Poor water quality with contaminants accelerates poppet wear. Maintain proper water filtration and treatment
