English Translation of Title:

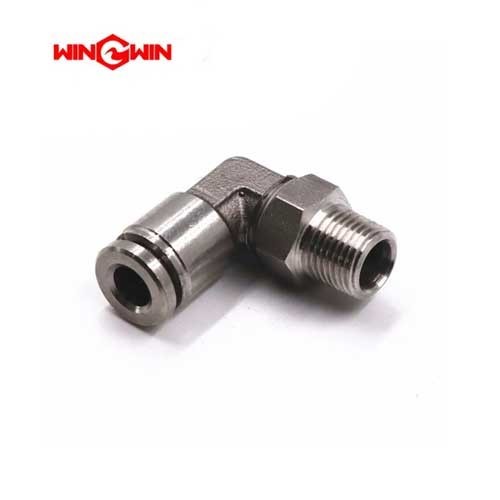

Water Jet Cutter Pump Adapter – Tube to Pipe, 25 x 13, Model No. 72149291-Water-Jet-Cutter-Pump-Adapter-TubePipe-25-x-13.854.3-1

Introduction, Application, Features, and Maintenance:

This component is an adapter designed for water jet cutter pump systems. It converts between a high‑pressure tube connection and a standard pipe (NPT or BSP) connection, with a reduction from 25 mm to 13 mm nominal size, allowing components with incompatible connection types and sizes to be joined together.

Application:
Used to connect pump outlets, valve assemblies, or manifolds to high‑pressure tubing in water jet cutting machines. Typical installations include transitions between rigid tube and pipe systems, or between different sections of the fluid circuit where a size reduction from 25 mm to 13 mm is required.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Converts between high‑pressure tube and standard pipe thread (NPT or BSP) connections.

• Reduces from 25 mm to 13 mm nominal size.

• Manufactured from high‑strength, corrosion‑resistant material suitable for abrasive water jet media.

• Precision‑machined sealing surfaces ensure leak‑free operation.

• Compact design minimizes space requirements and reduces potential leak points.

Maintenance:

• Regularly inspect the adapter body, tube sealing surface, pipe threads, and connection ends for signs of erosion, cracking, or damage.

• Check for leakage at both connection ends during machine operation.

• Replace immediately if any leakage, surface pitting, thread damage, or sealing surface damage is detected.

• Use compatible thread sealant or tape on the pipe thread side as required.

• Inspect the tube connection area for scratches or damage that could compromise sealing.

• Follow specified torque values when tightening both connection ends.
