Title Translation:
Waterjet Cutting Equipment Accessory, Name/Code: Hydraulic-Seal-Cartridge-Assembly-05130091.90.3-1

Introduction:

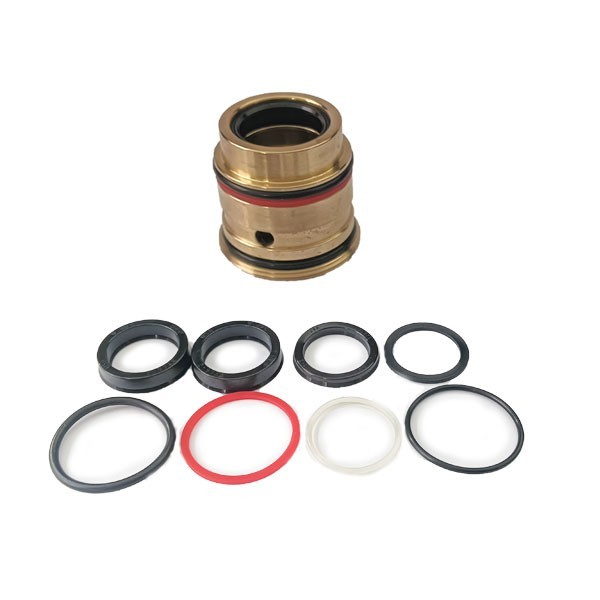

This component is a hydraulic seal cartridge assembly designed for waterjet cutting equipment. It is a pre-assembled unit containing all necessary seals and backup rings for installation in hydraulic cylinders, intensifiers, or pump cartridges, providing complete sealing in high-pressure fluid systems.

Applications:
Used in high-pressure waterjet cutting systems. Installed within hydraulic cylinders, intensifier assemblies, or pump cartridges to prevent fluid leakage and ensure pressure integrity under extreme operating conditions.

Features:

• Pre-assembled cartridge for quick and error-free installation.

• Contains all sealing elements in one compact unit.

• Engineered to withstand high pressures, cyclic loading, and wear.

• Resistant to hydraulic oils, water, and abrasive cutting fluids.

Maintenance:

• Inspect regularly for leakage, wear, or material degradation.

• Clean cartridge housing and sealing surfaces thoroughly during replacement.

• Replace the entire cartridge assembly if leakage or visible damage occurs.

• Not field-repairable; full cartridge replacement required when worn or damaged.
