Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

Product Name: Rod Wear Ring (Part No. XF35/220)

Description:

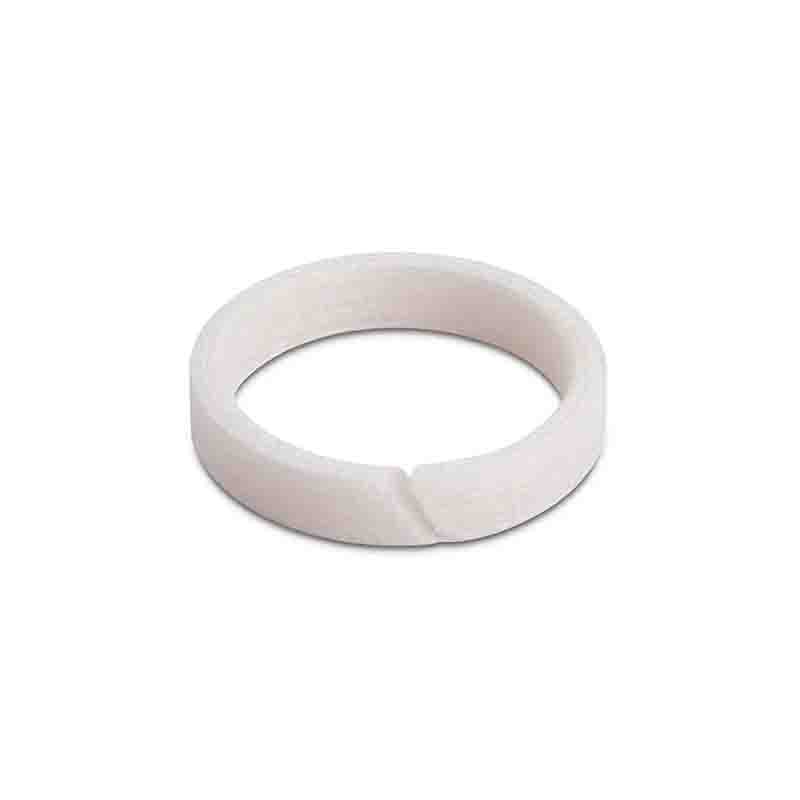

The Rod Wear Ring XF35/220 is a precision guide ring specifically designed for the piston rod assembly in BFT waterjet intensifier pumps . It is a rigid, low-friction component, typically manufactured from advanced polymer materials such as PTFE (polytetrafluoroethylene) or filled polyamide.

This guide ring is classified as a dynamic wear component. Unlike a dynamic seal that prevents fluid from passing, the primary function of a rod wear ring is to provide radial support for the reciprocating rod within the cylinder bore. It serves as a sliding bearing, absorbing lateral loads generated by the reciprocating motion, maintaining precise coaxial alignment between the rod and the cylinder, and preventing metal-to-metal contact.

Applications:

Guides the reciprocating piston rod within the hydraulic cylinder or high-pressure cylinder assembly.
Absorbs radial loads to ensure smooth, stable rod movement under high pressure.
Protects the more expensive cylinder bore and rod surface from scoring and galling.
Used during scheduled preventive maintenance, major pump overhauls, or when rod stability is compromised.
Compatible with BFT intensifier assemblies (models CP022001/2 and HT022012/172).

Features:

Low-Friction Material: Constructed from self-lubricating polymers (e.g., PTFE) to minimize friction and heat generation during high-cycle operation.
Sacrificial Wear Component: Engineered to wear preferentially, protecting the more expensive metal components (cylinder bore and rod).
Critical Guidance Function: Maintains precise rod-to-cylinder clearance, preventing misalignment that could cause seal damage.
High-Pressure Rating: Designed for continuous operation at 60,000-94,000 PSI (approximately 4,137-6,480 bar).
Direct OEM Replacement: Interchangeable with BFT part number XF35/220 and listed as a standard component in BFT parts diagrams.

Maintenance:

Failure Diagnosis (When to Replace):

Reduced Cutting Pressure or Erratic Cycling: A worn wear ring allows the rod to wobble, breaking the oil film seal and causing loss of high pressure and unstable intensifier operation.
Premature Seal Failure: Frequent failure of dynamic rod seals often indicates a worn wear ring allowing excessive rod deflection.
Visible Damage During Disassembly: When the pump is opened for maintenance, inspect the wear ring for scoring, galling, cracking, uneven wear, or loss of thickness.
Metal Particles in Hydraulic Oil: Metallic debris in the oil or filters may indicate that the wear ring has failed and allowed metal-to-metal contact.
Scheduled Preventive Maintenance: Standard practice to inspect and replace wear rings during major pump overhauls or whenever the rod assembly is serviced.

Inspection and Replacement Guidelines:

Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures.
Clean Installation: Perform the rebuild in a designated clean area. Thoroughly clean the rod, cylinder bore, and all mating surfaces with a soft, lint-free cloth.
Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease or clean hydraulic oil to the wear ring and cylinder bore during assembly.

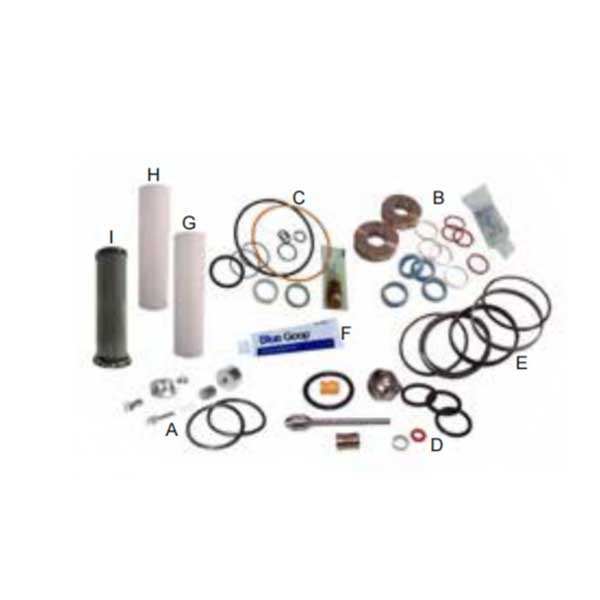

Replace as a Set: When servicing the rod assembly, it is recommended to replace all wear rings and dynamic seals simultaneously using a complete repair kit.
Inspect Mating Surfaces: Before installing a new wear ring, thoroughly inspect the rod surface and cylinder bore for scoring, pitting, or damage. A damaged metal component will rapidly destroy new wear rings.
Torque Compliance: When reinstalling the assembly, tighten all retaining hardware to the torque values specified in the equipment service manual.
