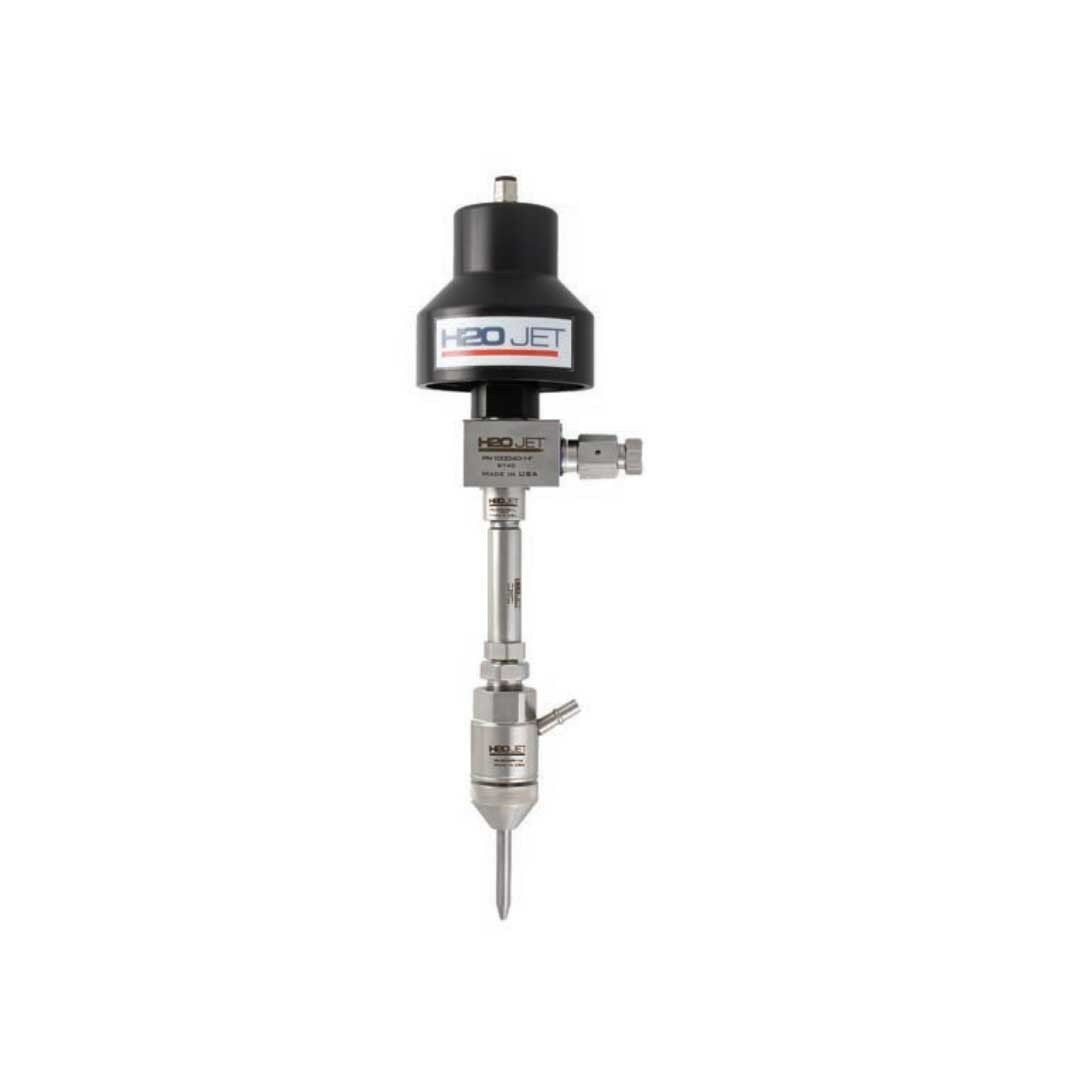

Product Name: Integral Diamond Eductor™ III (IDE III) Cutting Head Assembly

Description:
The Integral Diamond Eductor (IDE) III is a next-generation, high-performance cutting head assembly designed for ultra-high pressure (UHP) waterjet systems . Unlike traditional cutting heads that require manual alignment of separate orifice and mixing chamber components, the IDE III features a revolutionary one-piece body design that integrates the diamond orifice and the carbide mixing chamber into a single, factory-aligned unit .

This engineering eliminates the possibility of misalignment between the waterjet and the abrasive stream, ensuring a coherent, high-velocity cutting jet from the first minute of operation . The integrated design not only simplifies setup and maintenance but also dramatically improves cutting performance and component longevity.

Performance and Durability

The IDE III is engineered for maximum reliability and reduced operating costs. Field data shows it provides up to 50% faster cutting speeds and a 20% reduction in abrasive consumption compared to standard mixing chambers .

By permanently sealing the diamond orifice, the IDE III protects it from contamination and mechanical shock, resulting in an operational lifespan of 500 to over 1,000 hours – a 10 to 20 times improvement over standard sapphire or ruby orifices . This consistency means that cut quality remains superior and uniform throughout the entire life of the cutting head.

Applications:

• High-production abrasive waterjet cutting of metals, stone, glass, ceramics, and composites.

• Suitable for standard 60,000 PSI (4,137 bar) systems as well as Advantage EP 94,000 PSI (6,480 bar) extreme pressure systems .

• Compatible with most leading waterjet brands (e.g., Flow, OMAX, Jet Edge) using appropriate adapters .

• Available in single-port (SP) and dual-port (DP) configurations for varying system requirements .

Features:

• One-Piece Integrated Design: Combines orifice and mixing chamber into a single, factory-aligned unit .

• Precision Diamond Orifice: Provides permanent, perfect alignment with 0% chance of misalignment, ensuring a tighter, more coherent stream .

• Advanced Carbide Mixing Chamber: Features a "coalescing plenum" for efficient abrasive pick-up, reducing garnet usage .

• Longer Component Life: Diamond lasts 10-20 times longer than sapphire; extended mixing chamber and focusing tube life .

• Multi-Port Versatility: Available with single or dual inlets for abrasive feed and optional vacuum assist/pressure monitoring .

Maintenance:

Filter Protection (Critical):
The IDE III requires clean water to achieve its maximum lifespan. Use of an inline Short Stop Filter (0.006" absolute filtration) is mandatory for warranty protection and highly recommended to protect the precision diamond orifice from line-borne contaminants and debris generated by normal pump wear .

Routine Checks:

• Inspect Actuator: The pneumatic actuator has a vent cap with a filter. This filter should be removed and cleaned periodically to ensure reliable, long-term operation .

• Abrasive Feed: For adjustable nozzle bodies, the mixing chamber can be indexed to align the abrasive inlet optimally with the material flow for smoother garnet delivery .

Service Life:

• The IDE III is a long-life, low-maintenance component. The integrated orifice and chamber are not field-serviceable.

• When cutting performance eventually degrades (typically after 1,000+ hours), the entire IDE III mixing chamber assembly is replaced as a single unit .

Torque Specifications:

• When installing or servicing components attached to the IDE III, pay attention to torque values. For example, the actuator typically requires about 80 ft-lbs of torque . Always refer to the specific equipment service manual for detailed torque specifications.
