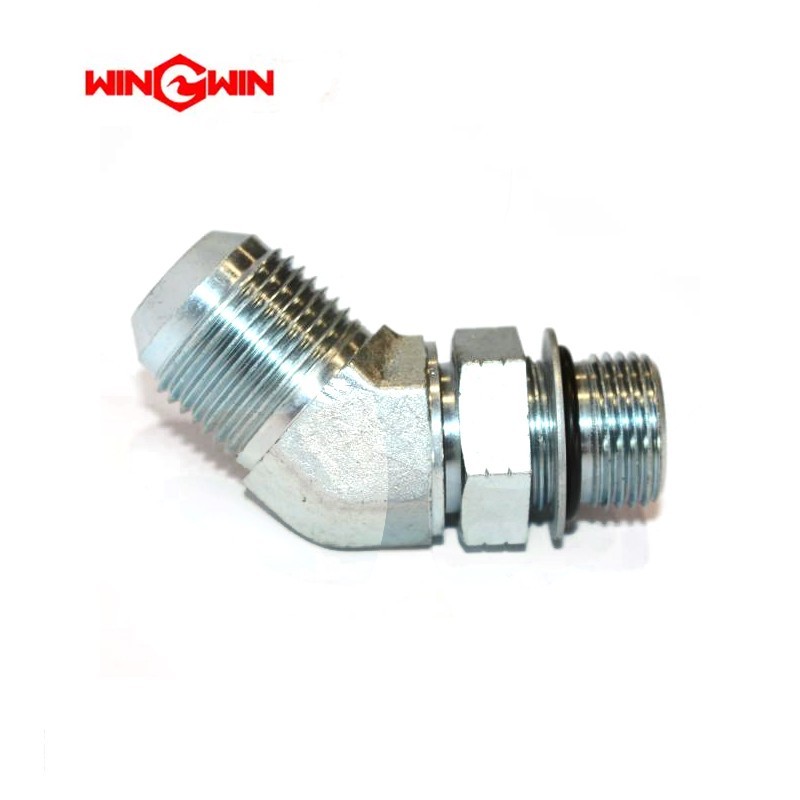

Product Name: Adapter, JIC/ORB, .75 x .63 (JIC Male to ORB Male) – Part No. 05052493

Description:
This component is a high-pressure hydraulic adapter designed to connect two different types of hydraulic ports commonly found in waterjet cutting systems. It features a .75 inch (3/4") JIC 37° flare male connection on one end and a .63 inch (5/8") ORB (O-Ring Boss) male connection on the other, making it a straight male-to-male adapter .

Its primary function is to serve as a critical interface in the hydraulic hose network, linking components with incompatible port styles. Specifically, it allows a hydraulic hose or component that has a 3/4" JIC female swivel to be connected directly to a manifold or pump port that has a 5/8" ORB female port . According to the parts diagram for the Hydraulic Hose Connections assembly (P/N 72159239), this adapter is listed as Item 3 and is used in a quantity of 3 per assembly .

The adapter is typically manufactured from high-strength steel with a protective anti-corrosion plating (e.g., trivalent zinc) to withstand the harsh, high-moisture environment and extreme pressure cycling of waterjet operation . It is engineered for reliable, leak-free service under heavy impulse and vibration.

Applications:

• Connects a 3/4" JIC female swivel fitting (from a hydraulic hose or component) to a 5/8" ORB female port on a manifold, pump, or intensifier .

• Used as a transition fitting to adapt between different hydraulic port standards within the system's low to medium pressure circuits (typically suction and return lines).

• Component of the Hydraulic Hose Connections assembly (P/N 72159239) .

• Essential for connecting hoses in the hydraulic power unit (HPU) of waterjet cutting systems.

Features:

• Dual Connection Types: Bridges JIC 37° flare and ORB straight thread port designs.

• JIC 37° Flare (3/4"): A male flared connection that creates a reliable, vibration-resistant metal-to-metal seal.

• ORB (5/8"): A male straight thread connection that seals via an elastomeric O-ring compressed into a machined groove in the mating port .

• Straight Male-to-Male Configuration: Provides a direct, in-line connection without changing the direction of the fluid path.

• Durable Construction: Made from steel with a corrosion-resistant coating for long service life in industrial conditions .

• Direct OEM Replacement: Interchangeable with original manufacturer specifications and standard SAE J514 hydraulic fitting dimensions.

Maintenance:

Failure Diagnosis (When to Replace):

• External Fluid Leakage: Visible oil weeping at either connection point. A leak at the JIC end likely indicates a damaged flare surface or loose nut. A leak at the ORB end indicates a failed or damaged O-ring .

• Thread Damage: Stripped, galled, or corroded threads on either end, preventing proper tightening.

• O-Ring Degradation: For the ORB connection, if the O-ring is nicked, cut, flattened (compression set), hardened, or cracked, the seal is compromised.

• Visible Cracks or Deformation: Any cracking or distortion of the adapter body requires immediate replacement.

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize the hydraulic system, and follow lockout/tagout procedures.

• Single-Use O-Ring: The O-ring for the ORB side is a single-use consumable. Always install a new O-ring whenever the adapter is removed and reinstalled .

• JIC Flare Inspection: Carefully inspect the JIC male flare surface for any nicks, scratches, or deformation. Any damage will cause a high-pressure leak.

• Thread Preparation: Clean all threads thoroughly with a soft brush and compatible solvent. Remove all debris, old sealant, and corrosion.

• Installation for JIC Connection: Lubricate the threads of the JIC nut with a small amount of clean hydraulic oil. Assemble and tighten the nut to the specific torque listed in the service manual. Do not use Teflon tape or sealant on JIC threads, as the seal is made at the flare.

• Installation for ORB Connection: Lubricate the new O-ring with clean hydraulic oil. Ensure it is properly seated in its groove. Thread the adapter into the ORB port by hand to avoid cross-threading, then tighten to the specific torque value listed in the equipment service manual.

• Torque Compliance: Use a calibrated torque wrench to tighten both connections to the values specified in the equipment service manual.

• Cross-Reference Information: This part is interchangeable with JIC/ORB .75 x .63 adapters from various manufacturers, conforming to SAE J514 specifications .
