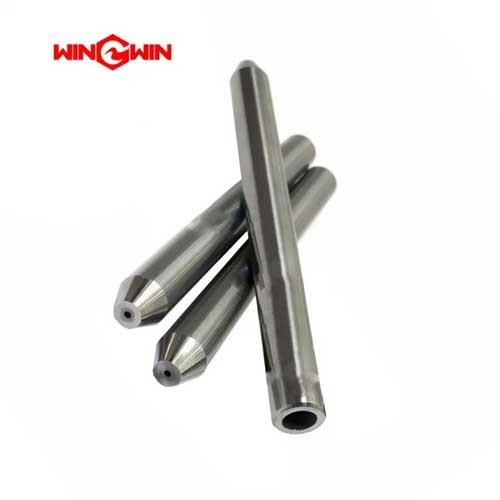

Product Name: Focusing Tube / Mixing Tube (Tungsten Carbide) – Part No. 05051891

Description:
This component is a focusing tube, also known as a mixing tube or abrasive nozzle, specifically designed for use in high-pressure abrasive waterjet cutting systems . It is a precision-machined cylindrical component manufactured from ultra-hard wear-resistant material, typically tungsten carbide, chosen for its exceptional ability to withstand the erosive forces of high-velocity water and garnet abrasive particles . The specific dimensions provided in the part number—00581473 mm (approximately 0.229 inches or 5.8 mm) inner diameter (bore) by 313794 mm (approximately 12.35 inches) total length—indicate a custom or application-specific geometry.

Installed in the cutting head assembly immediately downstream of the mixing chamber, the focusing tube serves as the final exit point for the abrasive-laden waterjet. Inside the tube, the high-pressure waterjet (typically up to 60,000-90,000 PSI / 4,137-6,200 bar) and abrasive particles are accelerated and focused into a coherent, high-velocity cutting stream that defines the kerf width and cutting precision . This component is classified as a high-wear consumable part that requires periodic replacement as its inner bore gradually erodes over time, directly affecting cut quality and accuracy .

Applications:

• Serves as the final focusing element for the abrasive waterjet, directing the cutting stream onto the workpiece .

• Defines the kerf width, cutting precision, and edge quality for the waterjet system .

• Installed in the cutting head assembly of major waterjet cutting systems.

• Used during scheduled preventive maintenance, performance restoration, or when cutting quality visibly degrades .

Features:

• Tungsten Carbide Construction: Manufactured from premium-grade tungsten carbide, providing exceptional hardness and wear resistance to withstand high-velocity abrasive flow .

• Precision Inner Diameter (ID): Manufactured to exacting tolerances (e.g., 0.229 inches / 5.8 mm) to ensure a coherent, straight jet for clean, narrow kerf cuts.

• High-Pressure Rating: Engineered for continuous operation at 60,000+ PSI (4,100+ bar) .

• Critical Consumable Component: As a high-wear part, the focusing tube requires periodic replacement; lifespan depends on abrasive type, flow rate, and operating pressure .

• Optimized Length: The specific length of 313.8 mm (approx. 12.35 inches) is engineered for specific cutting head configurations to maximize jet coherence.

Maintenance:

Failure Diagnosis (When to Replace):

• Reduced Cutting Performance: Noticeable decrease in cutting speed, rougher edge finish, or increased taper (wider kerf) indicates bore wear .

• Asymmetric Wear: Uneven wear on the tube outlet circumference indicates misalignment between the water orifice and mixing tube; this significantly shortens tube life .

• Visible Bore Damage: Inspect the exit orifice for ovality, flaring, or visible bore enlargement using a magnifying glass.

• Clogged Tube: Complete blockage results from wet or contaminated garnet abrasive, requiring immediate cleaning or replacement.

• Scheduled Preventive Replacement: Replace based on manufacturer recommendations (typically every 200-1,000 operating hours depending on usage) or when cutting quality degrades .

Inspection and Replacement Guidelines:

• Regular Inspection: Check the focusing tube for wear, cracks, or chipping regularly; replace worn components before cut quality degrades .

• Orifice-to-Tube Ratio: Maintain the recommended diameter ratio between the water orifice and mixing tube for optimal cutting efficiency and tube life. The nozzle bore diameter should generally be approximately three times the orifice diameter .

• Alignment Check: Ensure perfect coaxial alignment between the water orifice and focusing tube; misalignment causes asymmetric bore wear, poor cut quality, and significantly reduced tube life .

• Handling Caution: The focusing tube is extremely hard but brittle; handle carefully to avoid chipping, cracking, or impact damage during installation.

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system, shut off the high-pressure water supply, and follow lockout/tagout procedures.

• Clean Installation: Thoroughly clean the mixing chamber and nozzle body before installing a new tube to remove debris that could cause misalignment.

• Torque Compliance: When reinstalling the retaining nut, tighten to the specific torque value listed in the equipment service manual; over-tightening may crack the tube.

• Water Quality Impact: Poor water quality with contaminants accelerates tube wear; maintain proper water filtration to maximize component life .

• Abrasive Quality: Use clean, dry garnet abrasive; wet or contaminated abrasive causes clogging and accelerated wear.

• Storage: Store spare focusing tubes in a clean, dry, protective environment to prevent pre-service damage to the delicate inner bore.
