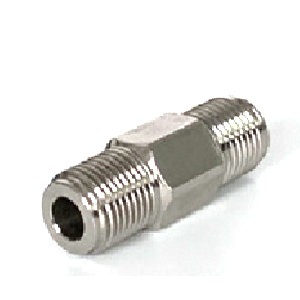

Product Name: Check Valve Body / Part No. 510000382

Description:
This component is a check valve body, a precision-machined stainless steel housing that serves as the foundation of the inlet or outlet check valve assembly in a waterjet intensifier pump . It contains the internal moving parts (valve ball or poppet) and the sealing seat, allowing high-pressure water or hydraulic fluid to flow in only one direction while preventing dangerous backflow . It is critical for building and maintaining the high pressures required for cutting, with inlet check valves controlling water entry into the cylinder and outlet check valves controlling the pressurized water exiting to the cutting head .

Applications:

• Controls unidirectional water flow in the intensifier pump (inlet and outlet circuits) .

• Essential for building pressure during the compression stroke of the intensifier .

• Installed on high-pressure water lines and hydraulic oil circuits to prevent reverse flow .

Features:

• Ultra-High Pressure Rating: Constructed from high-strength stainless steel to withstand continuous operation at 60,000–90,000 psi.

• Fluid Compatibility: Engineered to resist corrosion from water, hydraulic oils, and water treatment additives .

• Precision Machining: Internal valve seat and guide surfaces are machined to exact tolerances for a perfect seal .

Maintenance:

• Failure Diagnosis: Check valves are common failure points in intensifier systems. Symptoms include a sudden inability to build full pressure, irregular piston knocking (conversion noise), or a specific side of the intensifier running hot .

• Inspection Frequency: During periodic overhauls or when pressure issues arise, disassemble the valve body to inspect internal components (springs, valve balls/poppets) for wear, pitting, or damage .

• Cleanliness is Critical: The valve body and all internal parts must be kept spotless. Contamination by tiny abrasive particles or debris is a leading cause of rapid seal failure and internal scratching .

• Proper Assembly: When reinstalling the valve body, ensure correct orientation (flow arrows) and tighten fittings to the specified torque. Over-tightening can damage threads or crack the housing .

• Full Depressurization: Always fully depressurize and lock out the system before removing the check valve body from the pump assembly .
