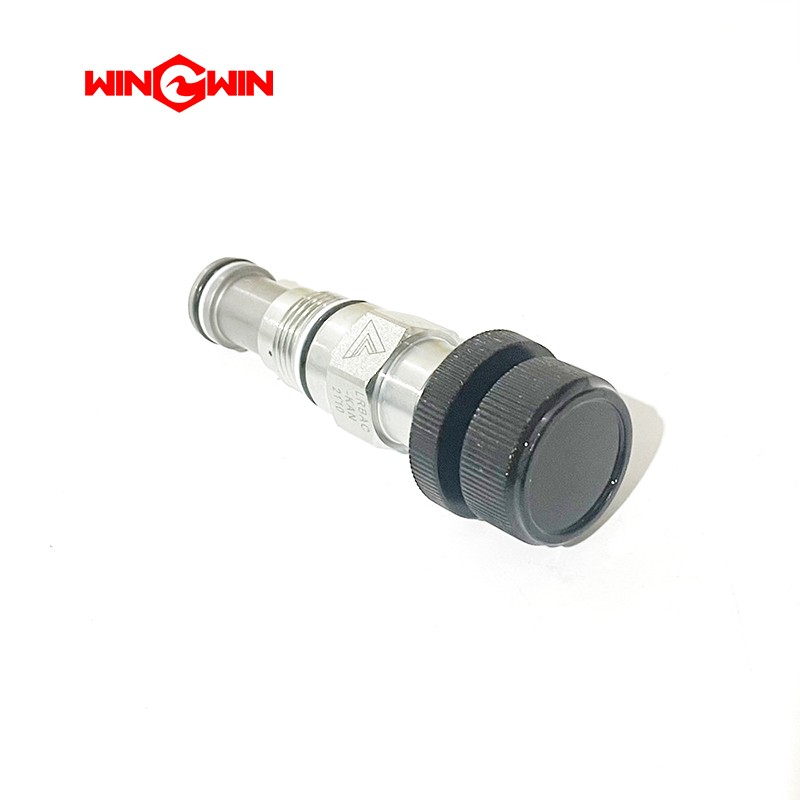

Product Name: Waterjet Regulator Valve / Pressure Regulating Valve

Description:
This component is a pressure regulator valve, also known as a pressure regulating valve, unloading valve, or throttle valve, designed for waterjet cutting systems. It is a critical control component that regulates system operating pressure by adjusting the amount of water flow bypassed from the high-pressure circuit. The valve typically features a cone or spool-type structure and works by changing the flow area to control pressure levels.

Applications:

• Regulates and maintains stable cutting pressure during waterjet operation

• Installed in the high-pressure water circuit, typically between the pump and the cutting head

• Adjusts system pressure to match different material cutting requirements (e.g., stone, metal, glass, composites)

• Serves as an unloading valve to release system pressure when the cutting head is idle

• Enables multi-operator control in systems with multiple cutting heads

Features:

• Precision Pressure Control: Allows fine adjustment of system pressure through a threaded adjustment mechanism to match specific cutting applications

• Bypass Flow Design: Maintains stable pressure by diverting excess flow back to the water tank when the cutting head is closed

• Wear-Resistant Construction: Typically manufactured from hardened stainless steel or cemented carbide to withstand high-velocity water flow and erosion

• Venturi Effect Operation: Uses pressure differential to control valve opening and closing for smooth pressure regulation

• Reliable Locking Mechanism: Features jam nuts or locking devices to prevent pressure drift from machine vibration

• High-Pressure Rating: Engineered for continuous operation up to 60,000 PSI (approximately 4,137 bar)

• Manual or Automatic Control: Available in configurations for hand-wheel adjustment or pneumatic/hydraulic actuation

Maintenance:

• Performance Monitoring: If the system fails to build pressure or cannot maintain set pressure, inspect the regulator valve for wear or blockage

• Valve Disassembly: Remove the valve assembly, clean all components with low-pressure water, and inspect for pitting, erosion, or groove formation on sealing surfaces

• Seal and O-Ring Replacement: Always replace all O-rings, seals, and backup rings when servicing the regulator valve. Do not reuse old seals

• Adjustment Verification: After maintenance, verify the valve adjustment matches the machine specifications. Do not overtighten, as this can damage the pump or cause pressure spikes

• Water Quality Impact: Poor water quality with contaminants or inadequate filtration accelerates valve wear. Regularly replace water filtration equipment

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before servicing the regulator valve

• Smooth Operation Check: Ensure the adjustment mechanism moves freely without binding. Stiff or seized adjusters indicate internal debris or damage

• Replacement Criteria: Replace the regulator valve if the internal bore is severely eroded, if sealing surfaces are pitted beyond refinishing, if threads are damaged, or if the valve fails to maintain stable pressure after cleaning
