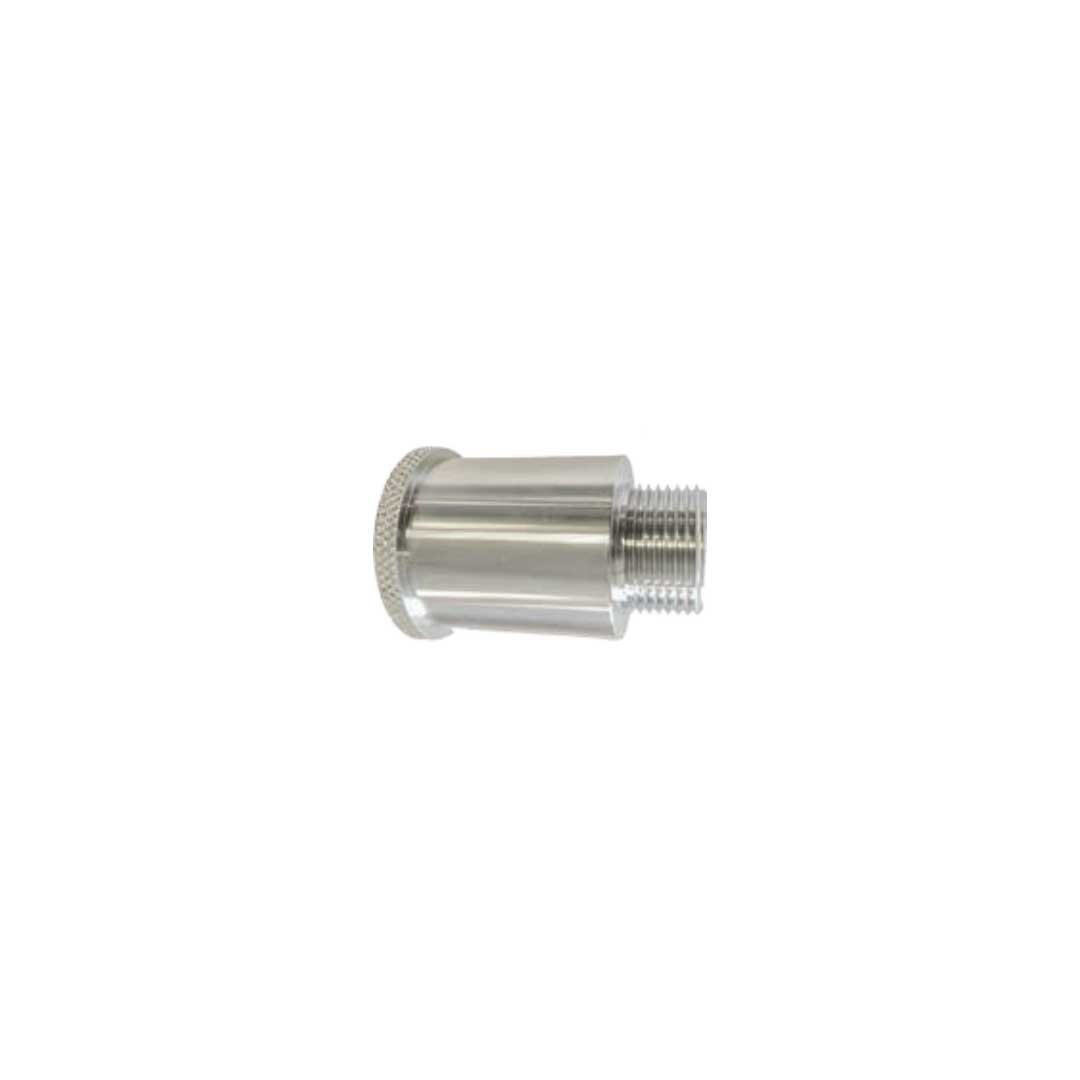

Product Name: IDE III Dynamic Contour Follower Option (Part No. 100167-2)

Description:
This component is an optional accessory for the Integrated Diamond Eductor (IDE) III cutting head, designed for dynamic contour cutting applications on a waterjet system. It is a mechanical kit that acts as a physical "contour follower," allowing the cutting head to maintain a specific, constant standoff distance from the surface of a 3D workpiece. By using a roller or similar guide mechanism, it allows the nozzle to track uneven surfaces or follow the edge of a pre-formed part without manual adjustment.

Applications:

• Maintaining consistent nozzle standoff distance for cutting 3D or contoured parts.

• Profiling and trimming composite, foam, or formed plastic components.

• Reducing operator intervention when cutting stacked sheets or layered materials.

Features:

• Dynamic Contour Tracing: Allows the cutting head to physically follow the surface geometry of a pre-existing or uneven part to ensure a consistent cutting depth.

• Mechanical Guide: Utilizes a physical roller or pin mechanism to maintain the offset, independent of CNC software contouring.

• IDE III Compatibility: Specifically designed to be mounted on or work in conjunction with the IDE III cutting head assembly.

• Constant Standoff: Maintains a fixed distance between the nozzle tip and the work surface, which is critical for edge quality and chamfer control on 3D parts.

Maintenance:

• Keep the Guide Clean: The guide mechanism (wheel/pin) must be kept free of debris to move freely; buildup can cause sticking and inconsistent offset.

• Inspect Roller/Bearing: Regularly check the guide pin or roller for flat spots, wear, or damaged bearings, as this directly affects the cut quality.

• Check Spring Tension: If the follower utilizes a spring, ensure the tension is sufficient to keep the guide in contact with the work surface without binding.

• Lubrication: Moving parts should be kept lightly lubricated to ensure smooth operation, but care must be taken to prevent lubricant from contacting the cutting water or garnet.

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before installing or removing the contour follower.
