English Translation of Title:
Bulkhead Pipe Assembly with Strainer for Water Jet Cutting Machine Parts – Model No. 20412815-Bulkhead-Pipe-Assembly-Strainer.858.3-1

Introduction, Application, Features, and Maintenance:

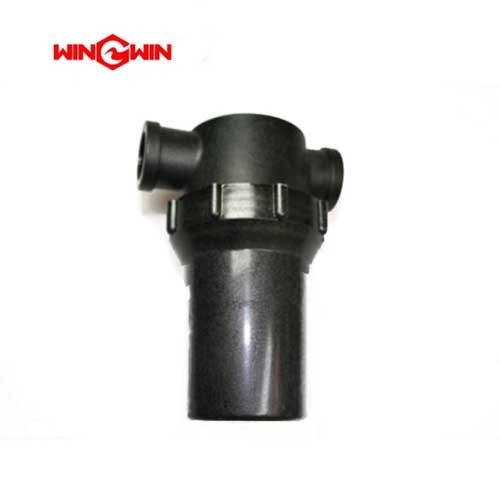

This component is a bulkhead pipe assembly that incorporates an integrated strainer, designed for water jet cutting systems. It passes through a panel or wall, allowing fluid to flow between compartments while filtering out debris and particulates from the fluid stream.

Application:
Used in water jet cutting machines to route water, abrasive slurry, or hydraulic fluid through machine enclosures, bulkheads, or protective panels while simultaneously filtering the fluid to prevent clogging or damage to downstream components. Typical installations include pump intake lines, return lines, cooling water circuits, and abrasive slurry filtration systems.

Features:

• Rated for system-specific pressures (low to moderate for return/filtration applications).

• Integrated strainer removes debris, sediment, and abrasive particles from the fluid stream.

• Bulkhead design includes a mounting flange or shoulder for panel installation.

• Manufactured from high-strength, corrosion-resistant materials suitable for water and abrasive slurry exposure.

• Easy-to-clean strainer element for convenient maintenance.

• Provides strain relief and seals the panel opening against leakage.

Maintenance:

• Regularly inspect the strainer element for clogging, wear, or damage.

• Clean the strainer periodically by removing accumulated debris and particles.

• Check the bulkhead mounting area for signs of loosening or panel deformation.

• Inspect for leakage at the panel penetration and connection ends.

• Replace the strainer element or the entire assembly if damage, corrosion, or reduced flow is observed.

• Follow specified torque values for all connections.
