waterjet pump Spare Parts
General Description
Waterjet pump spare parts are replacement components designed for high-pressure intensifier pumps used in waterjet cutting systems. These parts enable maintenance, repair, and overhaul of pumps rated for operation at 60,000–90,000 PSI (approximately 4,137–6,200 bar). Common spare parts include seals, seal kits, valves, cartridges, rings, and hydraulic components.
Applications include servicing UHDE waterjet cutting systems and compatible intensifier pump models such as FineCut500 and NCM10 series.
Common Spare Part Categories
| Component Type | Function | Wear Level |
|---|---|---|
| Seals / Seal Kits | Provide dynamic and static sealing between plunger and cylinder bore | High (consumable) |
| Valves / Safety Kits | Control water flow direction and provide system pressure relief | Moderate |
| Cartridges | Pre-assembled hydraulic or sealing units for drop-in replacement | Moderate |
| Rings / Sealing Rings | Backup rings and O-rings for high-pressure sealing interfaces | High (consumable) |

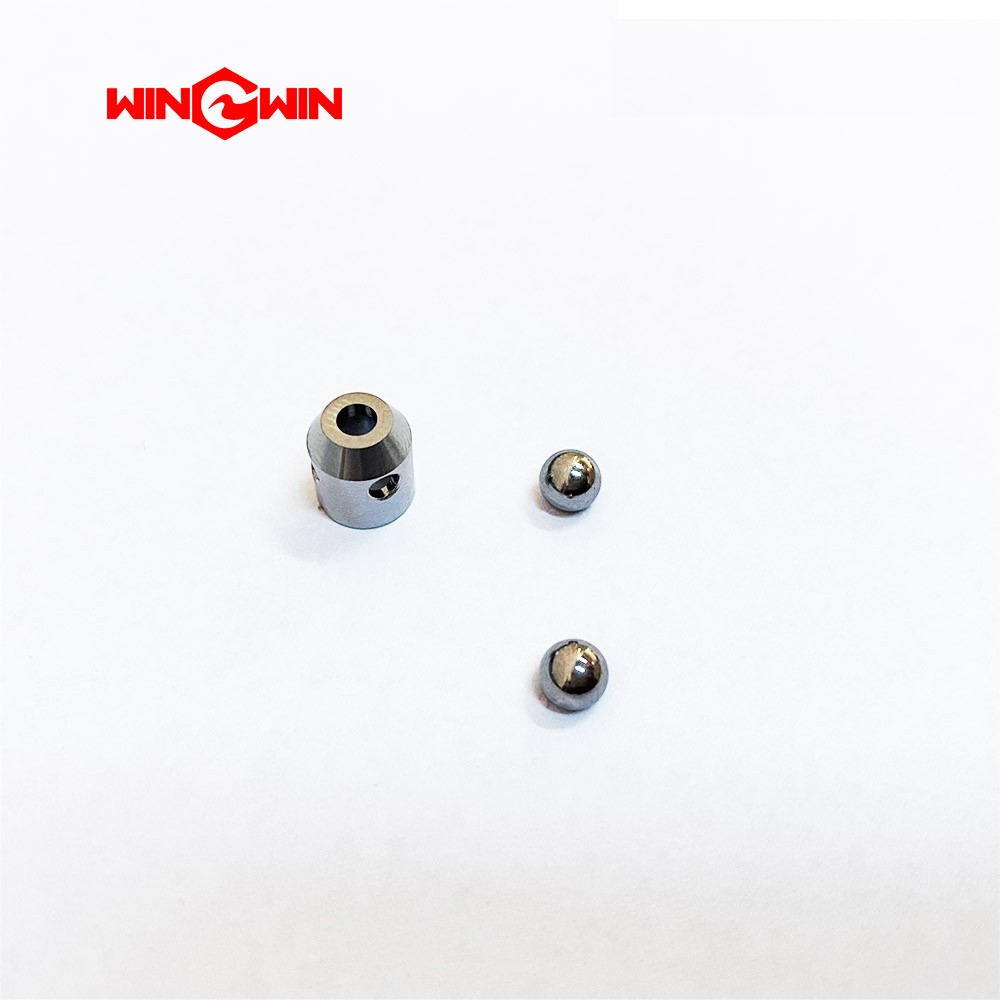

| Balls / Check Ball Components | Sealing elements in check valve assemblies | Moderate |
Features
Precision Manufacturing: Components are machined to exact tolerances for proper fit and leak-free operation
High-Pressure Rating: Engineered for continuous operation at 60,000–90,000 PSI
Wear-Resistant Materials: Seals manufactured from polyurethane, PTFE, and high-durometer elastomers
Corrosion Resistance: Materials selected to withstand water exposure and water treatment additives
OEM Compatibility: Direct replacement parts for specific pump models
Maintenance
Regular Inspection: Periodically inspect all seals, rings, and valve components for signs of wear, cracking, or extrusion damage
Preventive Replacement: Replace consumable parts (seals, O-rings, backup rings) on a schedule based on operating hours rather than waiting for failure
Clean Installation: Perform maintenance in a clean area to prevent contamination of new components. Wear gloves to prevent introducing oils or debris
Lubrication: Apply manufacturer-recommended high-pressure grease to seals and O-rings during installation to prevent dry startup
Water Quality Impact: Poor water quality with contaminants accelerates wear on seals and internal components. Maintain proper water filtration
Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before performing any maintenance
Associated Component Inspection: When replacing seals, inspect the plunger and cylinder bore for scoring, pitting, or wear. A damaged plunger will rapidly destroy new seals
Torque Compliance: Tighten all connections to torque values specified in the equipment service manual
Known Spare Parts for UHDE Systems
Based on available information, the following part numbers are associated with UHDE waterjet pump spare parts:
