English Translation of Title:
Adapter for SL-VI 50HP waterjet parts – Hose to JIC, 50 x 50, Model No. 10189025-SL-VI50HP-Waterjet-Part-Adapter-HoseJIC-50-x-50.861.3-1

Introduction, Application, Features, and Maintenance:

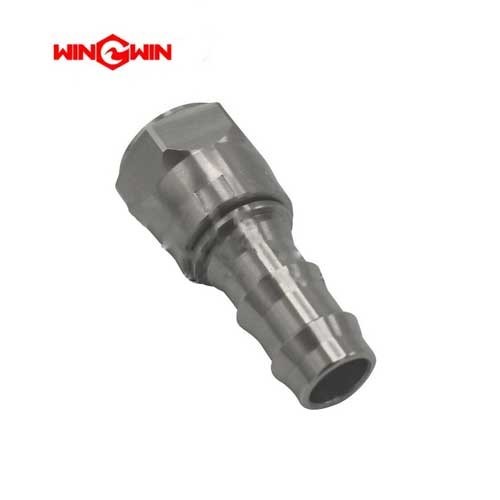

This component is an adapter designed for SL-VI 50HP water jet cutting systems. It converts between a hose connection and a JIC (Joint Industry Council) connection, both with a 50 mm nominal size, allowing components with incompatible connection types to be joined together.

Application:
Used to connect high-pressure hoses to JIC-type fittings, valves, or pump outlets in water jet cutting machines. Typical installations include between flexible hoses and rigid tubing, pump discharge lines, or cutting head supply lines where a hose-to-JIC transition is required.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Converts between hose (barb or crimp-style) and JIC (flared seat) connection standards.

• Both ends feature 50 mm nominal size for straight-through flow.

• Manufactured from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Precision-machined sealing surfaces ensure leak-free operation.

• Compact design minimizes space requirements and reduces potential leak points.

Maintenance:

• Regularly inspect the adapter body, threads, hose connection, and flared sealing surface for signs of erosion, cracking, or thread damage.

• Check for leakage at both connection ends during machine operation.

• Inspect the hose connection area for signs of wear or hose degradation.

• Replace immediately if any leakage, surface pitting, or thread damage is detected.

• Use compatible seals, O-rings, or washers as required for the JIC connection.

• Follow specified torque values when tightening the JIC connection.
