Product Name: STD Check Valve Repair Kit / Blockage Repair Kit (Part No. 730710480)

Description:

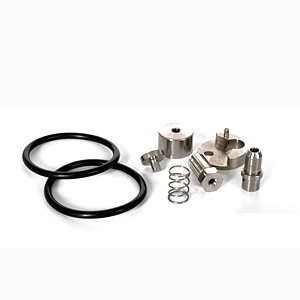

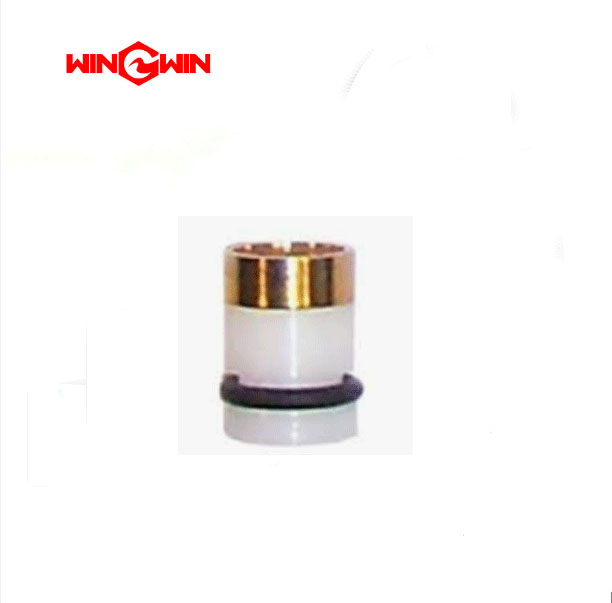

This component is a standard (STD) check valve repair kit, also referred to as a blockage repair kit or seal kit, specifically designed for the check valve assembly in high-pressure waterjet cutting systems. It is a pre-assembled collection of precision consumable parts used to restore the sealing integrity and one-way flow control function of a worn or damaged check valve.

The kit typically includes critical components such as high-pressure poppets (valve cores), hardened valve seats, precision springs, O-rings, backup rings, and guide washers. Manufactured from high-grade materials like stainless steel, PEEK, or ceramic composites, it is engineered to withstand the ultra-high pressure (60,000–90,000 PSI / 4,137–6,200 bar) and erosive conditions of abrasive waterjet cutting.

Check valves are critical for preventing high-pressure water from reversing direction during the intensifier's stroke. When internal components wear, symptoms such as pressure drop, overheating on one side of the intensifier, or water hammer (knocking) occur, necessitating the use of this repair kit.

Applications:

• Rebuilds worn or leaking inlet and outlet check valves in the waterjet intensifier pump

• Restores the valve's ability to prevent reverse flow (backflow) during the piston stroke

• Eliminates pressure drops, overheating, and knocking caused by failed valve components

• Suitable for ultra-high pressure waterjet systems rated for 60,000 PSI (4,137 bar) and higher

• Designed for standard (STD) size check valve bodies (compatible with specific thread types like M18×1.5 or M27×2.0)

Features:

• Complete Component Set: Includes the valve poppet (core), seat, spring, O-rings, and backup rings for a full overhaul

• High-Pressure Materials: Components are constructed from hardened stainless steel, PEEK (polyetheretherketone), or ceramic for extreme wear resistance

• Precision Sealing: Machined to exact tolerances to ensure a leak-tight, metal-to-metal seal

• Critical Performance Restorer: Replacing the kit restores full cutting pressure (eliminating 30%+ drops) and cutting efficiency

• Standardized Configuration: Engineered specifically for standard "STD" check valve bodies

Maintenance:

When to Replace (Failure Diagnosis):

• Significant Pressure Drop: If cutting pressure drops by 30% or more but the pump is running, the check valves are likely worn

• Overheating Valve Body: A specific check valve feels significantly hotter than its counterpart after operation, indicating internal leakage

• Inconsistent Cutting Quality: The cut edge develops intermittent rough spots or "steps," indicating pressure instability

• Preventive Schedule: Manufacturers recommend replacing the repair kit every 800 operating hours to prevent catastrophic failure

Replacement Procedure:

• Full Depressurization (Critical): Lock out the main power, close the water supply, and trigger the cutting head to ensure zero residual pressure in the lines before disassembly

• Remove Valve Body: Unthread the check valve body from the intensifier manifold

• Extract Old Components: Remove the old poppet, seat, spring, and seals from the valve cavity

• Clean Cavity: Thoroughly clean the internal bore of the valve body with a soft cloth and low-pressure water; inspect for scoring or pitting

• Replace as Complete Set: Install all new components from the repair kit simultaneously. Do not reuse old springs or seals with a new poppet, as this leads to rapid failure

• Lubricate: Apply high-pressure grease to the O-rings and poppet stem during reassembly to prevent dry start-up

• Torque Compliance: Tighten the valve body or retainer nut to the specific torque value in the service manual (varies by thread size, e.g., M18 or M27)

• Test Operation: Run the pump at low pressure first to check for leaks around the valve body before resuming full cutting operations

Water Quality Impact:

• Poor water quality (contaminants, hardness, particles >5μm) accelerates wear on the poppet and seat

• Always maintain proper water filtration to maximize the service life of the repair kit
