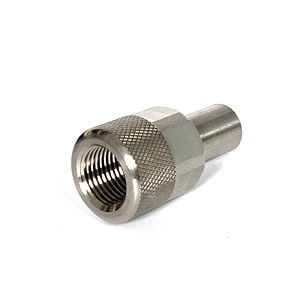

Product Name: Retainer Nut / Gland Nut (Part No. 510000766)

Description:
This component is a retainer nut, also known as a gland nut or retaining nut, specifically designed for the cutting head assembly of a waterjet cutting system . It is a precision-machined, threaded cylindrical nut, typically manufactured from high-strength stainless steel, that serves as a critical fastening and sealing component. Its primary function is to secure and compress the focusing tube (mixing tube) against the mixing chamber or to retain the jewel orifice (water nozzle) within the cutting head body . By applying the correct torque, it creates a leak-tight, high-pressure seal between these internal components and the cutting head housing.

Applications:

• Secures the focusing tube (mixing tube) in the lower section of the cutting head assembly

• Retains the jewel orifice (water nozzle) and seals within the upper section of the cutting head

• Provides the necessary compression force for high-pressure sealing between cutting head components

• Suitable for ultra-high pressure waterjet systems operating at 60,000–90,000 PSI (approximately 4,137–6,200 bar)

Features:

• High-Strength Stainless Steel Construction: Provides corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Threads: Ensures smooth engagement with the cutting head body and accurate torque application

• Wrench Flats: Features machined flats or a hex profile for reliable torquing with standard wrenches

• Critical Sealing Component: Applies uniform compression to seals and internal components for leak-free operation

• Direct OEM Replacement: Specifically designed for DARDI waterjet cutting systems

Maintenance:

Failure Diagnosis:

• High-Pressure Water Leakage: Visible water weeping from the retainer nut area indicates improper torque or damaged threads/seals

• Overtightening Damage: Stripped or galling threads, a cracked nut, or a cracked mixing tube suggest excessive torque was applied

• Difficulty Removing: A nut that is seized or requires excessive force to remove indicates thread galling or corrosion

• Visible Wear: During disassembly, inspect the nut threads and wrench flats for damage or rounding

Inspection and Replacement Procedures:

• Thread Inspection: Before reassembly, carefully inspect the retainer nut threads for signs of wear, galling, corrosion, or cross-threading. Damaged threads will not seal properly and must be replaced

• Surface Condition Check: Examine the nut for cracks, deformation, or damage to the wrench flats. Replace immediately if any defect is found

• Torque Compliance (Critical): Always use a calibrated torque wrench. Tighten the retainer nut to the specific torque value listed in the equipment service manual. Over-tightening can crack the mixing tube or strip threads; under-tightening will cause high-pressure leaks

• Thread Lubrication: Apply a thin layer of high-pressure thread lubricant or anti-seize compound to the threads during reassembly to prevent galling and ensure accurate torque application

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before loosening or removing the retainer nut

• Use Proper Tools: Use the correctly sized wrench on the nut's wrench flats. Do not use pipe wrenches, pliers, or improvised tools that could damage the nut surfaces

• Replace if Damaged: Replace the retainer nut immediately if threads are damaged, wrench flats are rounded, cracks are visible, or if the nut has been significantly overtightened

• Seal Replacement: Always replace the associated O-rings or seals whenever the retainer nut is removed and reinstalled
