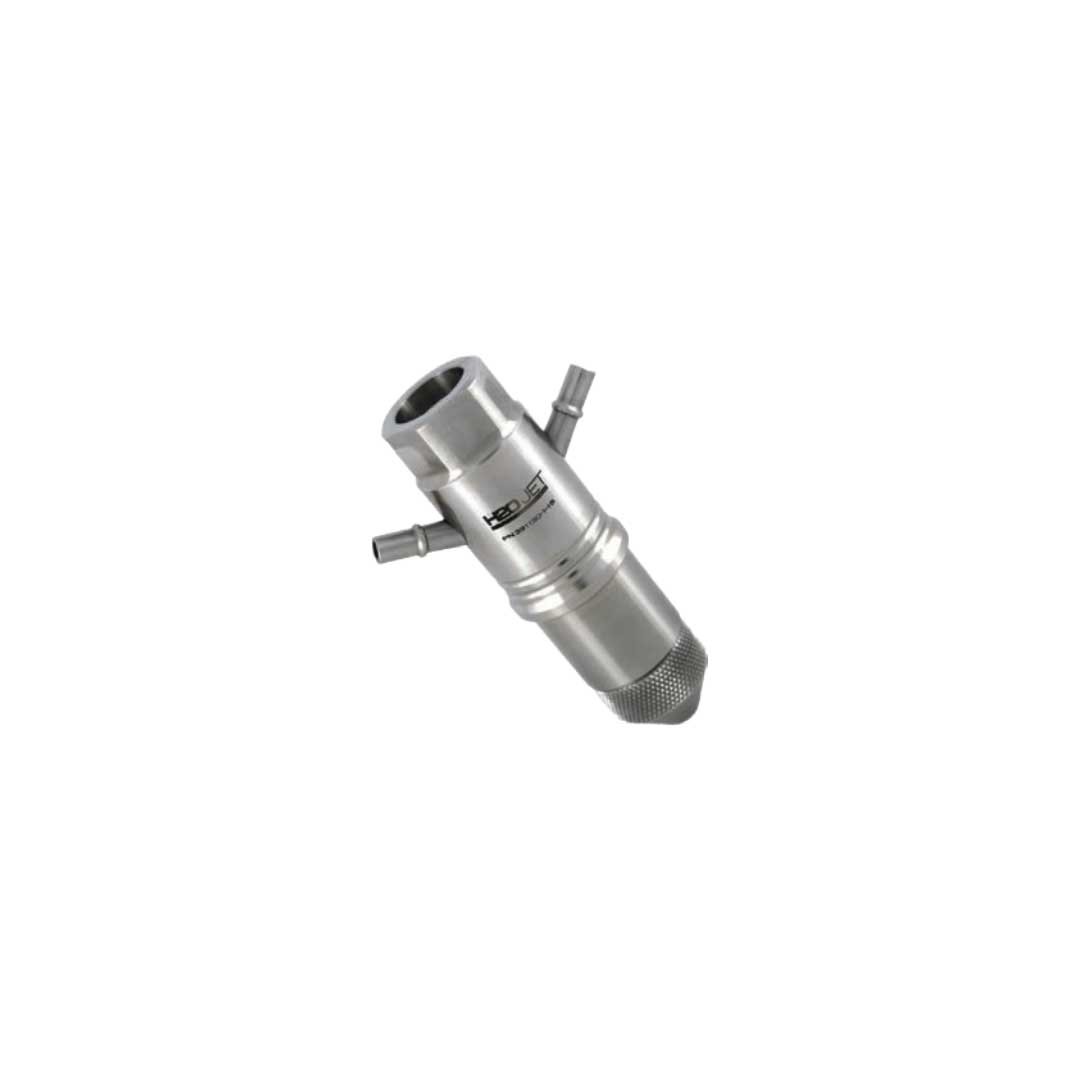

Product Name: Mixing Chamber (Part No. 303536)

Description:
This component is a mixing chamber designed for the cutting head assembly of a high-pressure abrasive waterjet system. It is a precision-machined housing that serves as the central cavity where the high-velocity waterjet and garnet abrasive particles combine to form the cutting stream. The internal geometry is typically engineered to create a Venturi effect, ensuring efficient abrasive suction and thorough mixing for optimal cutting performance.

Applications:

• Installed in the cutting head assembly, positioned between the water orifice (jewel nozzle) and the focusing tube (mixing tube).

• Serves as the primary interface for mixing high-pressure water with dry abrasive to cut hard materials.

• Used in abrasive waterjet cutting systems operating at ultra-high pressures.

Features:

• Precision-Machined Internal Bore: Ensures perfect coaxial alignment with the water orifice and mixing tube for a coherent jet.

• Wear-Resistant Material: Constructed from hardened stainless steel or alloy to resist erosion from high-velocity abrasive flow.

• Venturi Geometry: Designed to create a vacuum that draws abrasive into the water stream efficiently.

• Side Abrasive Inlet Port: Features a precision port for connecting the abrasive feed line.

• High-Pressure Rating: Engineered for continuous operation in extreme pressure environments (typically 60,000 PSI and above).

Maintenance:

• Erosion Inspection: Regularly inspect the internal bore for signs of wear, scoring, or diameter enlargement caused by abrasive particles.

• Debris Cleaning: Remove any compacted abrasive dust or foreign material from the internal cavity and side port during cutting head maintenance.

• Coaxial Alignment: Ensure the mixing chamber is perfectly aligned with the water orifice and mixing tube during reassembly to prevent rapid wear of consumables.

• Seal Replacement: Always replace associated O-rings and high-pressure seals when servicing the mixing chamber to prevent water leaks.

• Replacement Criteria: Replace the mixing chamber if the internal bore shows visible wear, pitting, cracking, or if cutting performance degrades significantly.

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before disassembly.

•
