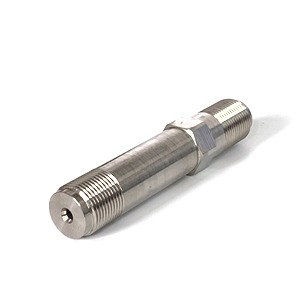

Product Name: Extension Tube / Cutting Head Connecting Rod / Part No. 510000466

Description:
The extension tube, also referred to as a connecting rod or waterjet adapter, is a critical mechanical component within the cutting head assembly of a high-pressure waterjet system . It is typically a precision-machined, elongated cylinder made of corrosion-resistant stainless steel or high-strength alloy . Its primary function is to serve as a structural and hydraulic link, connecting the water on/off valve (water switch) to the mixing chamber or cutting head body .

Designed to withstand extreme internal pressures (often exceeding 60,000 PSI) , the extension tube contains a precision-machined internal bore that channels the ultra-high-pressure water from the valve directly into the mixing chamber . This component maintains the strict coaxial alignment required between the waterjet orifice and the mixing tube to ensure a coherent cutting stream and maximize the lifespan of consumable parts .

Applications:

• Connecting the water on/off valve to the main cutting head body (mixing chamber) .

• Providing a precise high-pressure water passage between the valve and the orifice/nozzle assembly .

• Serving as a spacer or extension to position the cutting head appropriately on 3-axis or 5-axis motion systems .

Features:

• High-Strength Material: Manufactured from corrosion-resistant stainless steel or alloy steel to prevent failure under ultra-high pressure cycling .

• Precision Internal Bore: Features a perfectly smooth and straight internal passage to minimize pressure loss and turbulence, ensuring stable water flow to the cutting head .

• Leak-Tight Sealing: Machined with high-precision mating surfaces (often cone seats) to form a metal-to-metal seal with adjacent components, preventing dangerous high-pressure leaks .

• Structural Integrity: Designed to handle mechanical stress and vibration during high-speed cutting, ensuring the cutting head remains rigid and aligned .

Maintenance:

• Seal Inspection: Regularly inspect the mating cone seats for nicks, scratches, or galling. Any damage here will prevent the connection from sealing, leading to external high-pressure water leaks .

• Thread Care: Clean and inspect the threads for damage or corrosion. Apply an anti-seize lubricant during reassembly to prevent galling and ensure proper torque is achieved .

• Leak Diagnosis: Visible high-pressure water weeping from the connection joint (often from a small tell-tale hole on the mixing chamber) indicates that the extension tube is not properly seated or that the sealing surfaces are compromised .

• Torque Compliance: Always tighten the extension tube to the manufacturer's specified torque using proper tools. Over-tightening can damage threads or crack internal components, while under-tightening will cause leaks .

• Disassembly Protocol: When replacing internal wear parts (like the orifice or mixing tube), use two wrenches to disassemble the tube from the mixing chamber—one to hold the body and one to turn the nut. This prevents twisting stress on other components .

• Full Depressurization: Before any maintenance, ensure the waterjet system is fully depressurized and locked out to prevent accidental high-pressure water discharge.
